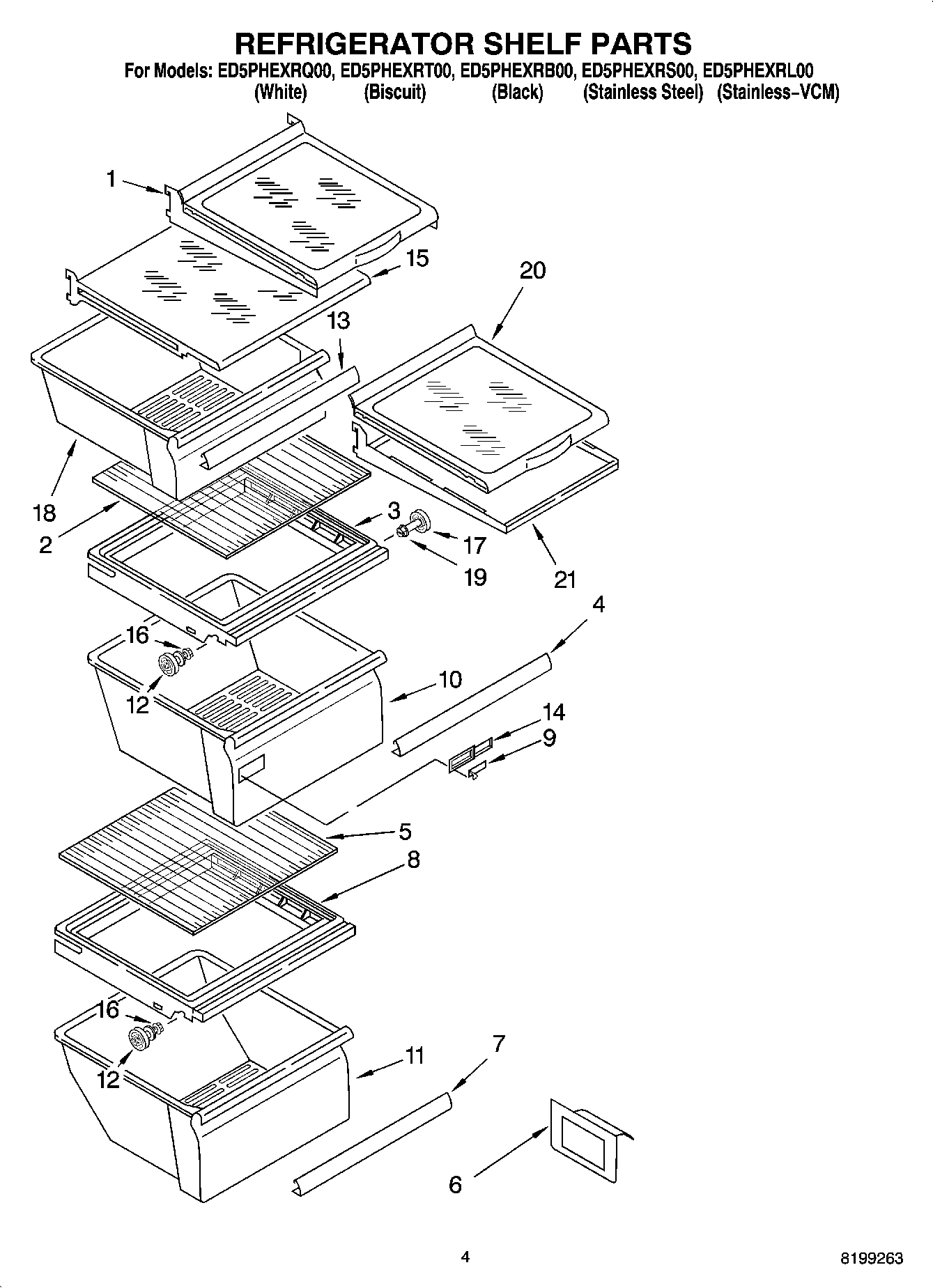

ED5PHEXRQ00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Shelf, Cantilever (2)
2	W10864399 Whirlpool Glass Shelf
3	W10508993 Whirlpool Refrigerator Cover Pan
6	2179350 Whirlpool Refrigerator Deflector
7	WP2179234 Whirlpool Refrigerator Pan Trim
9	WP2179342 Whirlpool Refrigerator Slide
10	PAN-CRISPR
11	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
12	W11223328 Whirlpool Refrigerator Shelf Stud
13	WP2179243 Whirlpool Refrigerator Pan Trim
14	WP2179343 Whirlpool Refrigerator Control Body
15	Shelf, Snack Bin
16	WP3-24004-109 Whirlpool Refrigerator Screw
17	WP2196483 Whirlpool Refrigerator Shelf Stud
18	W11497323 Whirlpool Snack Pan
19	WP3400806 Whirlpool Screw
20	WPW10141748 Whirlpool Refrigerator Glass Shelf
21	Frame, Shelf
