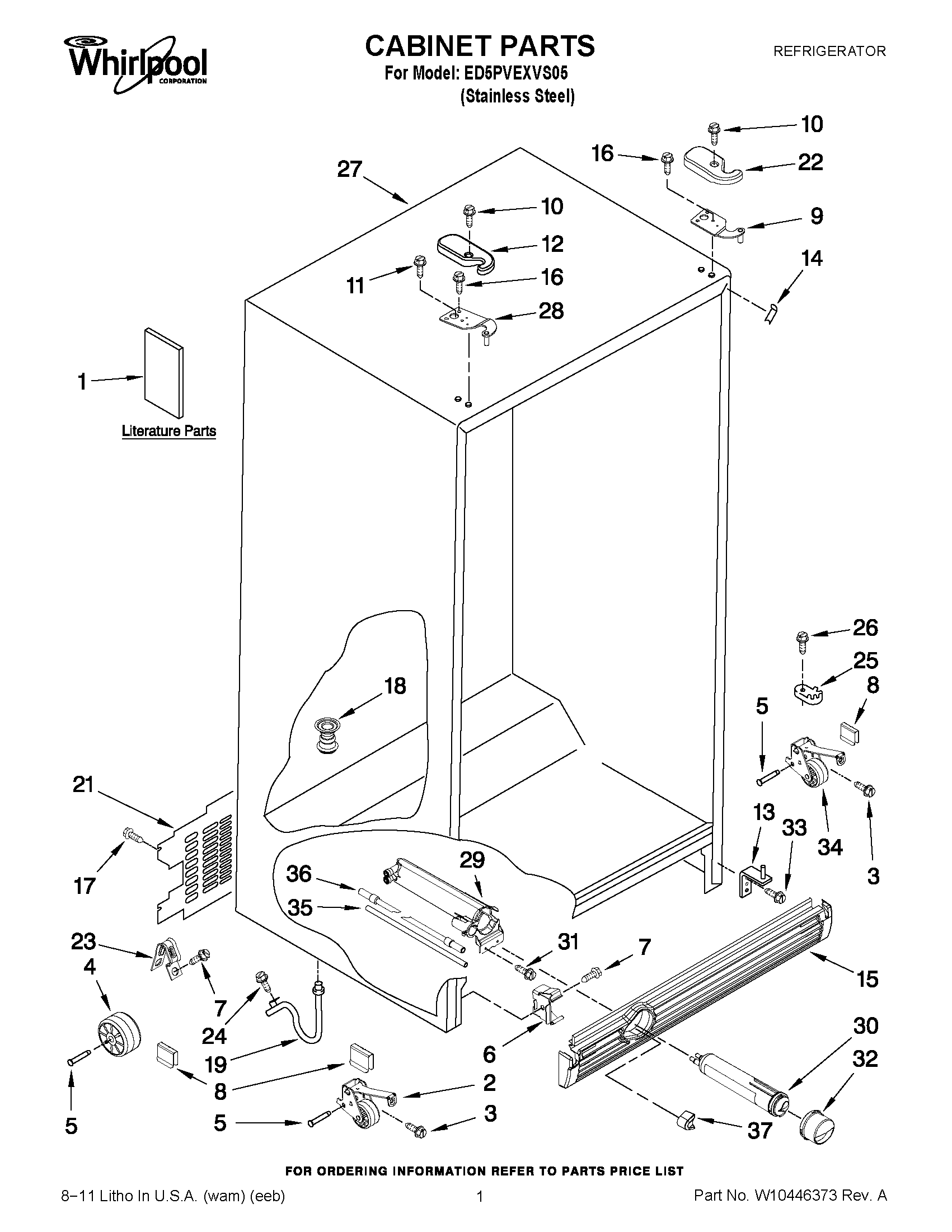

ED5PVEXVS05 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Energy Guide
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET (DOOR REMOVAL)
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2174706 Whirlpool Refrigerator Pin Hitch
9	HINGE TOP (RC)
10	WP8281227 Whirlpool Screw
11	WP489128 Whirlpool Refrigerator Screw
12	WP2203407B Whirlpool Refrigerator Cover
13	HINGE BOTTOM
14	W11252732 Whirlpool Refrigerator Filler
15	WPW10311033 Whirlpool Refrigerator Grille
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
21	WP2188755 Whirlpool Rear Panel
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	CABINET (NOT A SERVICEABLE PART)
28	HINGE TOP (FC)
29	WPW10121138 Whirlpool Refrigerator Water Filter Housing
30	FILTER 3-SINGLE TEAL
31	WP489500 Whirlpool Refrigerator Screw
32	WP2260518B Whirlpool Water Filter Cap
33	WP489497 Whirlpool Screw
34	WPW10304659 Whirlpool Wheel Assembly
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	TUBE, FILTER INLET
37	WP2260503B Whirlpool Refrigerator Button
