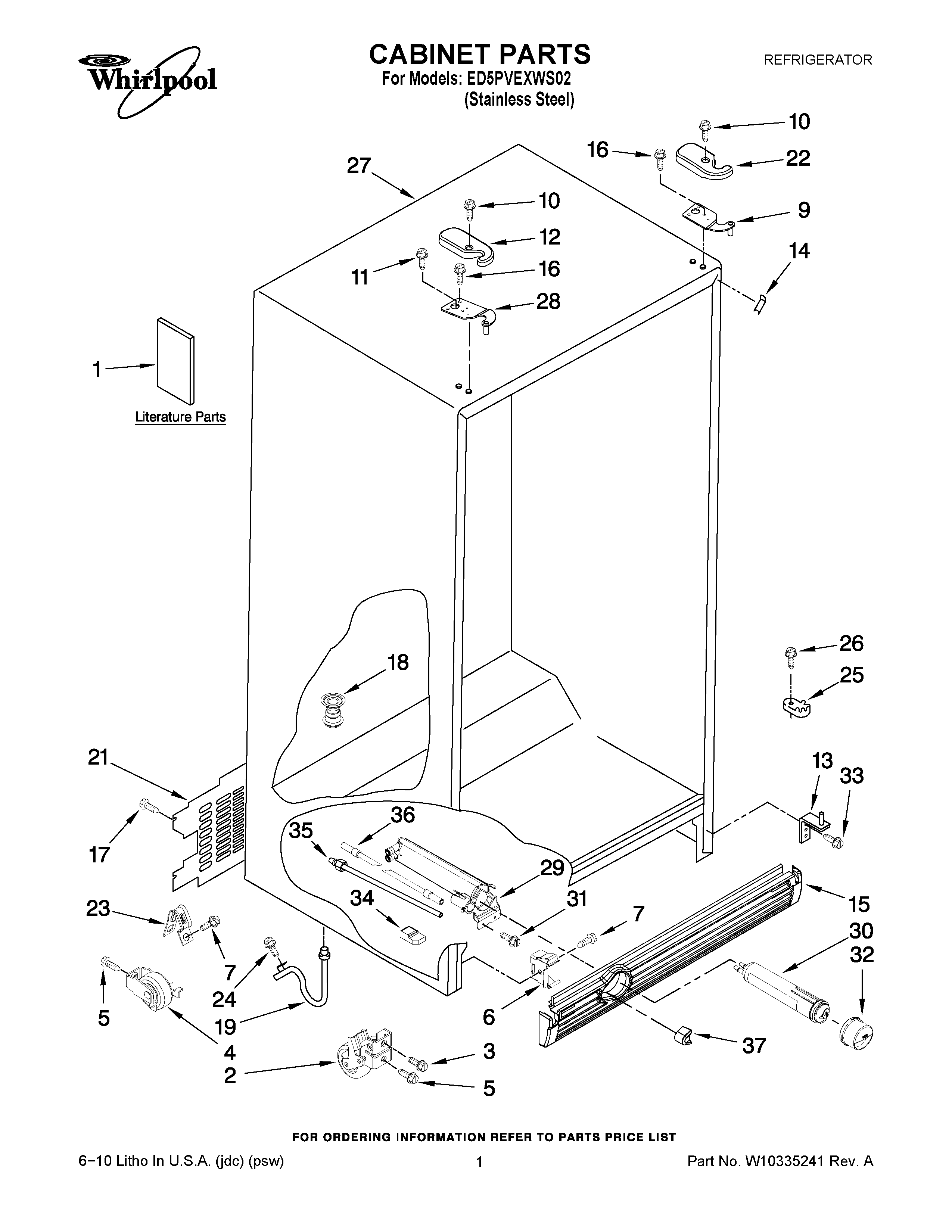

ED5PVEXWS02 01 – CABINET PARTSadmin2025-04-26T09:47:21+00:00ED5PVEXWS02 01 – CABINET PARTS ProductsPositionProduct1ENERGY GUIDE1Use & Care Guide1INSTRUCTION SHEET, DOOR REMOVAL1Modular Icemaker Service Sheet1Service & Wiring Sheet2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WP2155013 Whirlpool Refrigerator Clip7WP489478 Whirlpool Refrigerator Screw9WP2203771 Whirlpool Refrigerator Door Hinge10WP8281227 Whirlpool Screw11WP489128 Whirlpool Refrigerator Screw12WP2203407B Whirlpool Refrigerator Cover13W10138965 Whirlpool Refrigerator Door Hinge14Filler, Wrapper (Black)15WPW10311033 Whirlpool Refrigerator Grille17WP489464 Whirlpool Refrigerator Screw18W11566763 Whirlpool Fitting19W11512417 Whirlpool Drain Connector21WP2188755 Whirlpool Rear Panel22WP2203408B Whirlpool Refrigerator Cover23549193 Whirlpool Refrigerator Power Clamp25WPW10329686 Whirlpool Door Cam Black26WP489483 Whirlpool Screw27CABINET (NOT A SERVICEABLE PART)28WP2203770 Whirlpool Refrigerator Door Hinge29WPW10121138 Whirlpool Refrigerator Water Filter Housing30FILTER 3-SINGLE TEAL31WP489500 Whirlpool Refrigerator Screw32WP2260518B Whirlpool Water Filter Cap33WP489497 Whirlpool Screw34Block, Housing Support35WPW10350006 Whirlpool Refrigerator Water Tube36TUBE, FILTER INLET37WP2260503B Whirlpool Refrigerator Button
