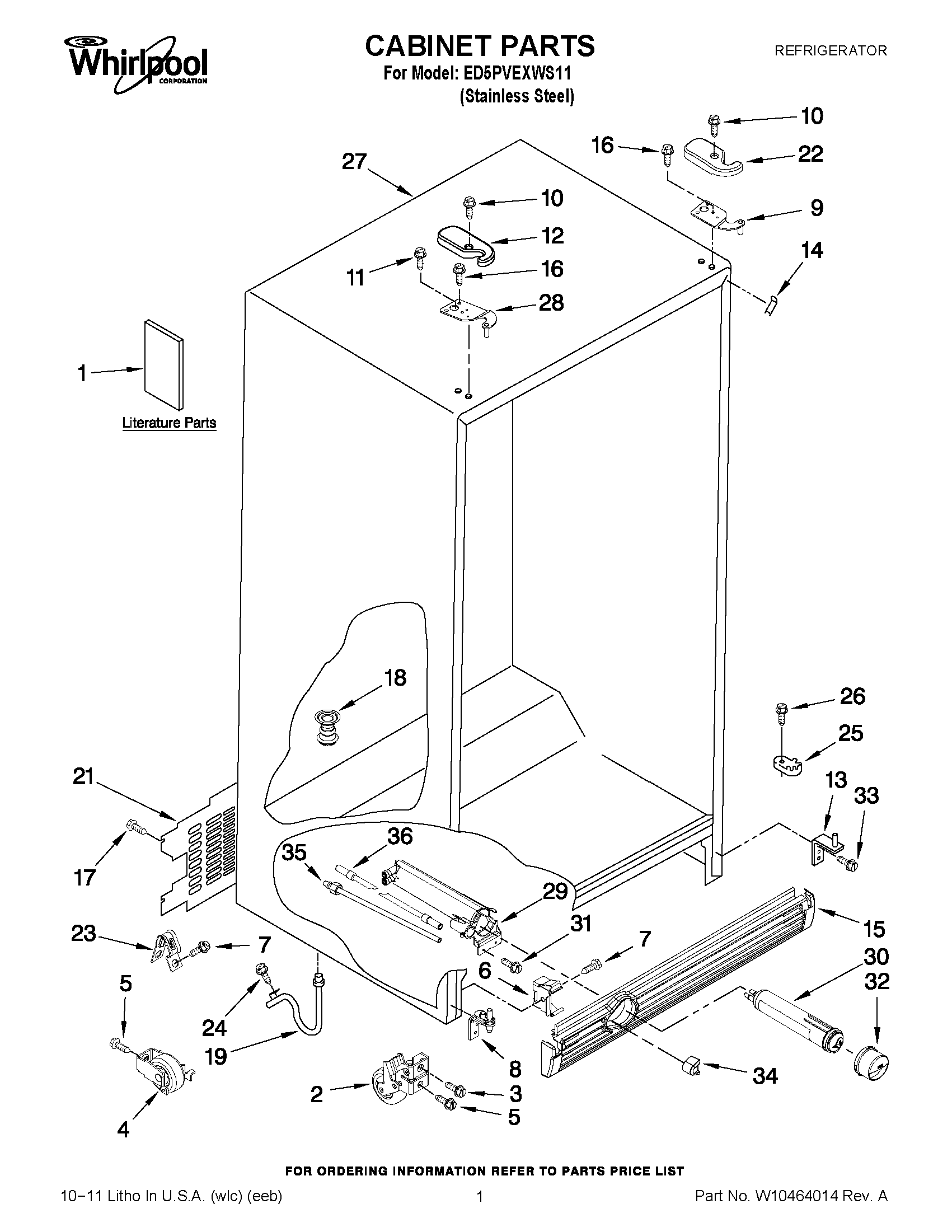

ED5PVEXWS11 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	ENERGY GUIDE
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WPW10141604 Whirlpool Screw
8	ADJUSTABLE HINGE CAM ASSY
9	W10242649 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	WP489128 Whirlpool Refrigerator Screw
12	WP2203407B Whirlpool Refrigerator Cover
13	W10138965 Whirlpool Refrigerator Door Hinge
14	Filler, Wrapper (Black)
15	WPW10311033 Whirlpool Refrigerator Grille
16	WP489497 Whirlpool Screw
17	SCREW
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
21	WP2188755 Whirlpool Rear Panel
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
24	WP489464 Whirlpool Refrigerator Screw
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	CABINET (NOT A SERVICEABLE PART)
28	HINGE, TOP (FC)
29	HOUSING, WATER FILTER
30	FILTER 3-SINGLE TEAL
31	WP489500 Whirlpool Refrigerator Screw
32	WP2260518B Whirlpool Water Filter Cap
34	WP2260503B Whirlpool Refrigerator Button
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	TUBE, FILTER INLET
