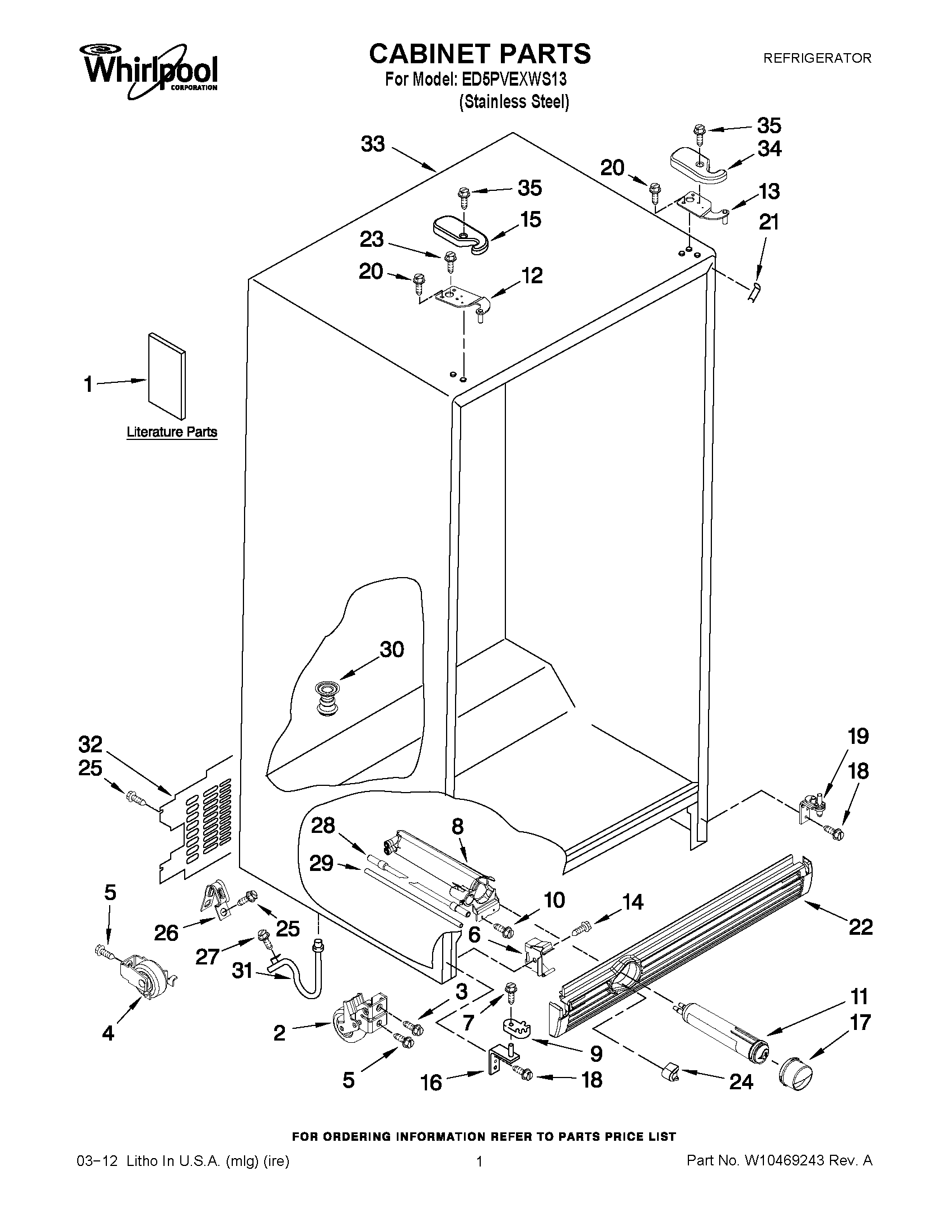

ED5PVEXWS13 01 – CABINET PARTS
Written by
in
ED5PVEXWS13 01 – CABINET PARTS
Products
Position
Product
1
Modular Icemaker Service Sheet
1
Service & Wiring Sheet
1
ENERGY GUIDE
1
INSTRUCTION SHEET, DOOR REMOVAL
1
USE & CARE GUIDE
2
Front Roller (2)
3
W10850698 Whirlpool Refrigerator Screw
4
WPW10250570 Whirlpool Refrigerator Cabinet Roller
5
WP489427 Whirlpool Refrigerator Screw
6
WP2155013 Whirlpool Refrigerator Clip
7
WP489483 Whirlpool Screw
8
WPW10121138 Whirlpool Refrigerator Water Filter Housing
9
WPW10329686 Whirlpool Door Cam Black
10
WP489500 Whirlpool Refrigerator Screw
11
FILTER 3-SINGLE TEAL
12
HINGE, TOP (FC)
13
W10242649 Whirlpool Refrigerator Door Hinge
14
WPW10141604 Whirlpool Screw
15
WP2203407B Whirlpool Refrigerator Cover
16
W10138965 Whirlpool Refrigerator Door Hinge
17
WP2260518B Whirlpool Water Filter Cap
19
ADJUSTABLE HINGE CAM ASSY
20
WP489497 Whirlpool Screw
21
Filler, Wrapper (Black)
22
WPW10311033 Whirlpool Refrigerator Grille
23
WP489128 Whirlpool Refrigerator Screw
24
WP2260503B Whirlpool Refrigerator Button
25
SCREW
26
549193 Whirlpool Refrigerator Power Clamp
27
WP489464 Whirlpool Refrigerator Screw
28
TUBE, FILTER INLET
29
WPW10350006 Whirlpool Refrigerator Water Tube
30
W11566763 Whirlpool Fitting
31
W11512417 Whirlpool Drain Connector
32
WP2188755 Whirlpool Rear Panel
33
CABINET (NOT A SERVICEABLE PART)
34
WP2203408B Whirlpool Refrigerator Cover
35
WP8281227 Whirlpool Screw
←
