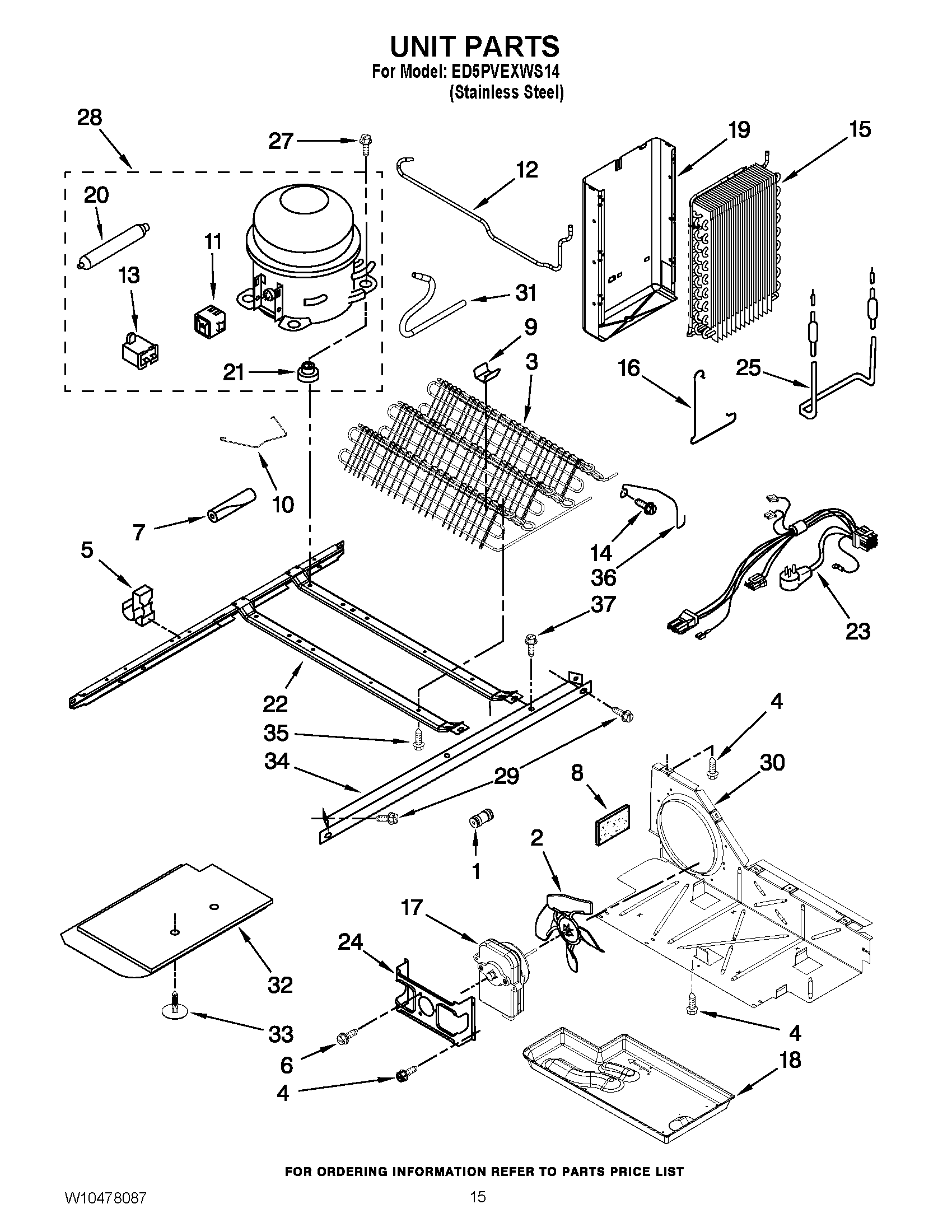

ED5PVEXWS14 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	2217070 Whirlpool Foam Kit
9	W10683556 Whirlpool Refrigerator Clip
10	W11661170 Whirlpool Clip
11	WPW10189190 Whirlpool Start Device
12	W10528574 Whirlpool Refrigerator Tube
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WP489478 Whirlpool Refrigerator Screw
15	WP2188823 Whirlpool Refrigerator Evaporator
16	Clamp
17	WP2188874 Whirlpool Refrigerator Condenser Motor
18	WPW10614158 Whirlpool Refrigerator Evaporator Tray
19	Heat Shield
20	WPW10143759 Whirlpool Dryer Filter
21	W11661108 Whirlpool Grommet
22	W10196321 Whirlpool Refrigerator Frame
23	WPW10309395 Whirlpool Refrigerator Wire Harness
24	WP2181929 Whirlpool Refrigerator Bracket
25	WP2323198 Whirlpool Refrigerator Heater
27	SCREW
28	W10233961 Whirlpool Refrigerator Compressor
29	489340 Whirlpool Refrigerator Screw
30	W10896764 Whirlpool Refrigerator Air Baffle
31	W10371237 Whirlpool Tube Assembly
32	Unit Cover, Bottom
33	489396 Whirlpool Refrigerator Clip
34	2305374 Whirlpool Refrigerator Unit Rail
35	W11544659 Whirlpool Refrigerator Screw
36	2260517 Whirlpool Fan Guard
37	WP489427 Whirlpool Refrigerator Screw
