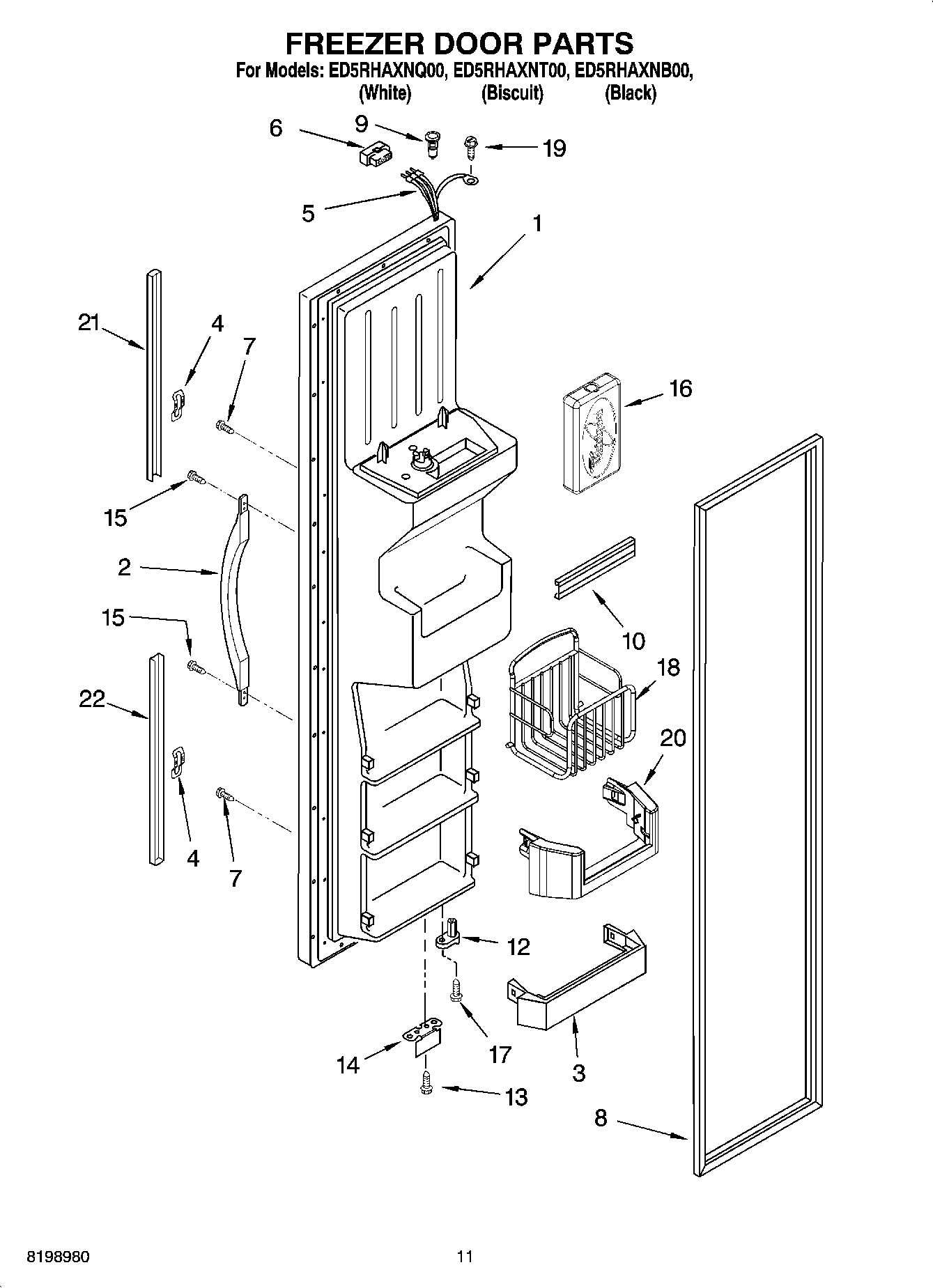

ED5RHAXNB00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle, Center (White)
2	WP2186649B Whirlpool Refrigerator Handle
2	Handle, Center (Biscuit)
3	WP2171157 Whirlpool Shelf Trim
4	WP2195327 Whirlpool Refrigerator Clip
5	2198619 Whirlpool Refrigerator Wire Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	WP3400852 Whirlpool Refrigerator Screw
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	WP2182181 Whirlpool Refrigerator Thimble
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
15	WP489491 Whirlpool Refrigerator Screw
16	Bottle, Ice Pack
17	WP3400012 Whirlpool Refrigerator Screw
18	TRIVET, TILT-OUT
19	WP489128 Whirlpool Refrigerator Screw
20	Basket, Tilt Out
21	WP2194973W Whirlpool Door Trim
21	Extension, Top (Biscuit)
21	Extension, Top (Black)
22	WP2194969B Whirlpool Refrigerator Handle Trim
22	Extension, Bottom (Biscuit)
22	Extension, Bottom (White)
