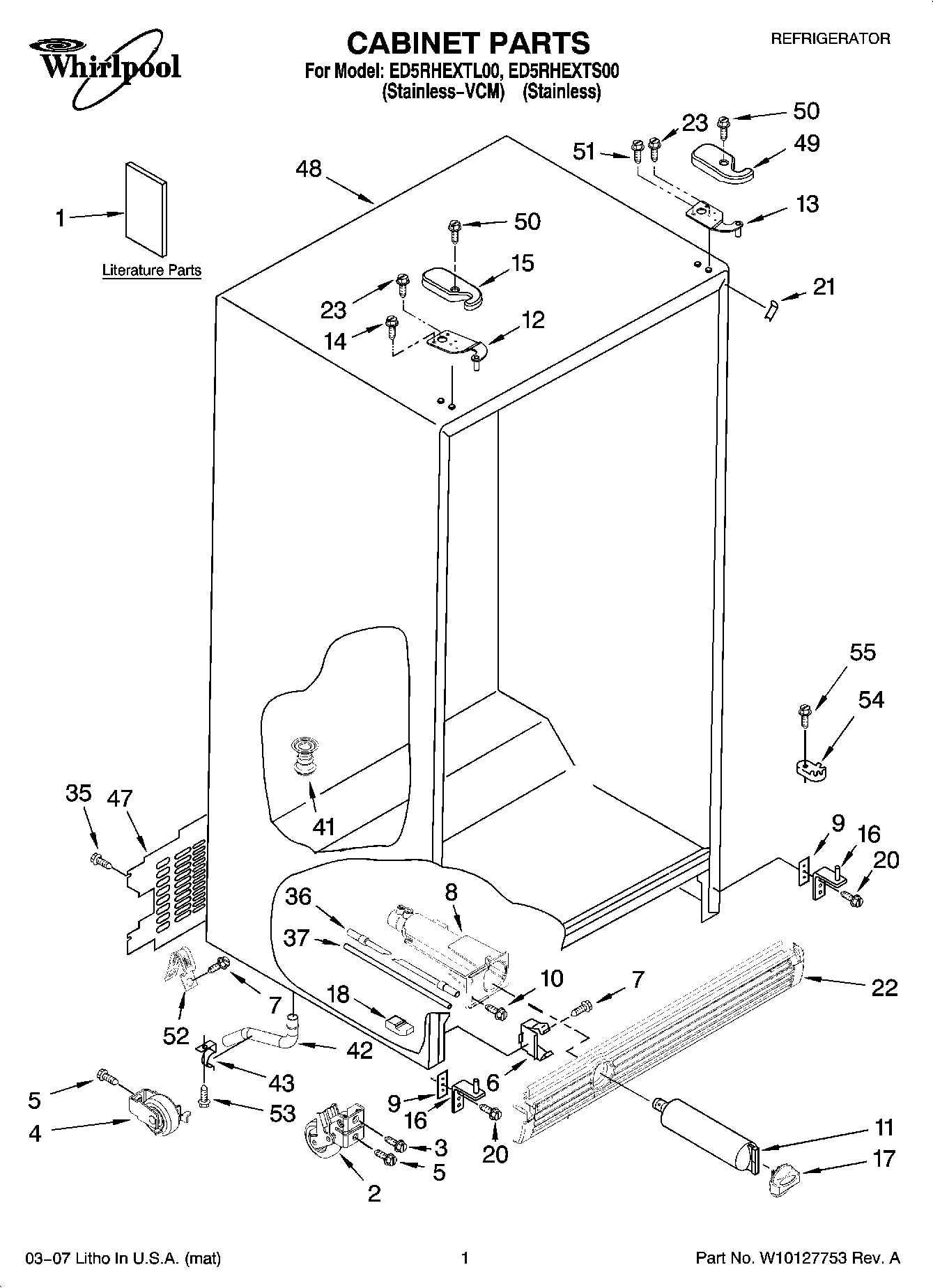

ED5RHEXTL00 01 – CABINET PARTS

ED5RHEXTL00 01 – CABINET PARTS

Written by

in

ED5RHEXTL00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Energy Label
1Modular Icemaker Service Sheet
1Use & Care Guide
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8Housing, Water Filter
9WP2181911 Whirlpool Refrigerator Shim
10WP489500 Whirlpool Refrigerator Screw
11EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
12WP2203770 Whirlpool Refrigerator Door Hinge
13WP2203771 Whirlpool Refrigerator Door Hinge
14WP489128 Whirlpool Refrigerator Screw
15WP2203407B Whirlpool Refrigerator Cover
168201707 Whirlpool Door Hinge
17WP2186494B Whirlpool Refrigerator Filter Cap
18Block, Housing Support
20WP489497 Whirlpool Screw
21Filler, Wrapper (Black)
22W10803964 Whirlpool Grille Assembly
35WP489464 Whirlpool Refrigerator Screw
36WPW10350006 Whirlpool Refrigerator Water Tube
378201597 Whirlpool Inlet Water Fill Tube Kit Filter
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
47WP2188755 Whirlpool Rear Panel
48Cabinet, (Not A Serviceable Part)
49WP2203408B Whirlpool Refrigerator Cover
50WP8281227 Whirlpool Screw
52549193 Whirlpool Refrigerator Power Clamp
54WPW10329686 Whirlpool Door Cam Black
55WP489483 Whirlpool Screw
