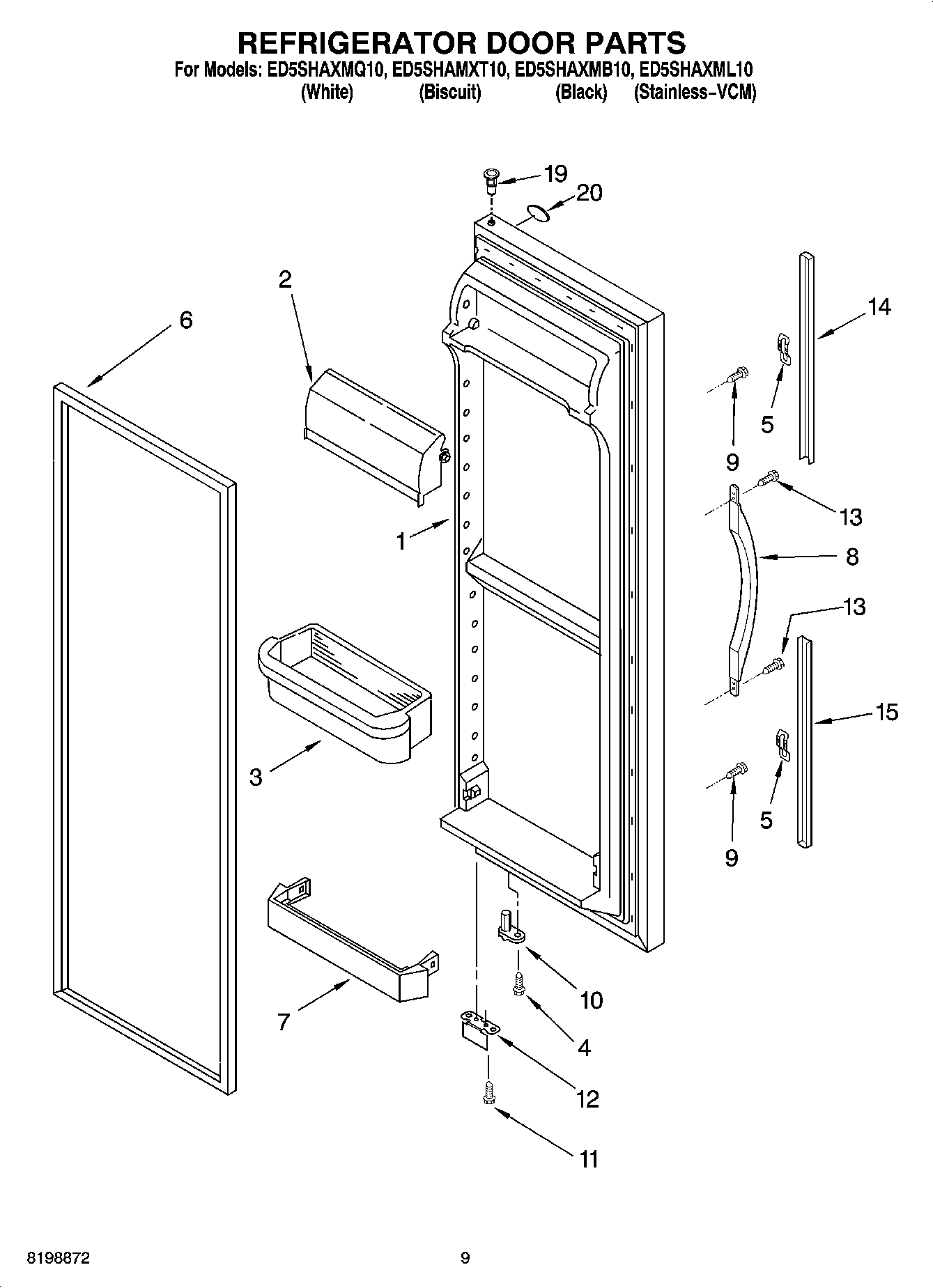

ED5SHAXMQ10 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
1	Refrigerator Door (Includes Item 6) (Stainless-VCM)
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2256101 Whirlpool Dairy Door
3	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	2159083 Whirlpool Gasket Door
6	2159075 Whirlpool Door Gasket Seal
7	WP2156022 Whirlpool Refrigerator Door Trim
8	WP2186649B Whirlpool Refrigerator Handle
8	Handle, Center (White)
8	Handle, Center (Biscuit)
9	WP3400852 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	WP2206629B Whirlpool Refrigerator Bracket
13	WP489491 Whirlpool Refrigerator Screw
14	Extension, Top (Biscuit)
14	Extension, Top (Black)
14	WP2194973W Whirlpool Door Trim
15	Extension, Bottom (White)
15	WP2194969B Whirlpool Refrigerator Handle Trim
15	Extension, Bottom (Biscuit)
19	WP2182181 Whirlpool Refrigerator Thimble
20	WP2213265 Whirlpool Refrigerator Nameplate
