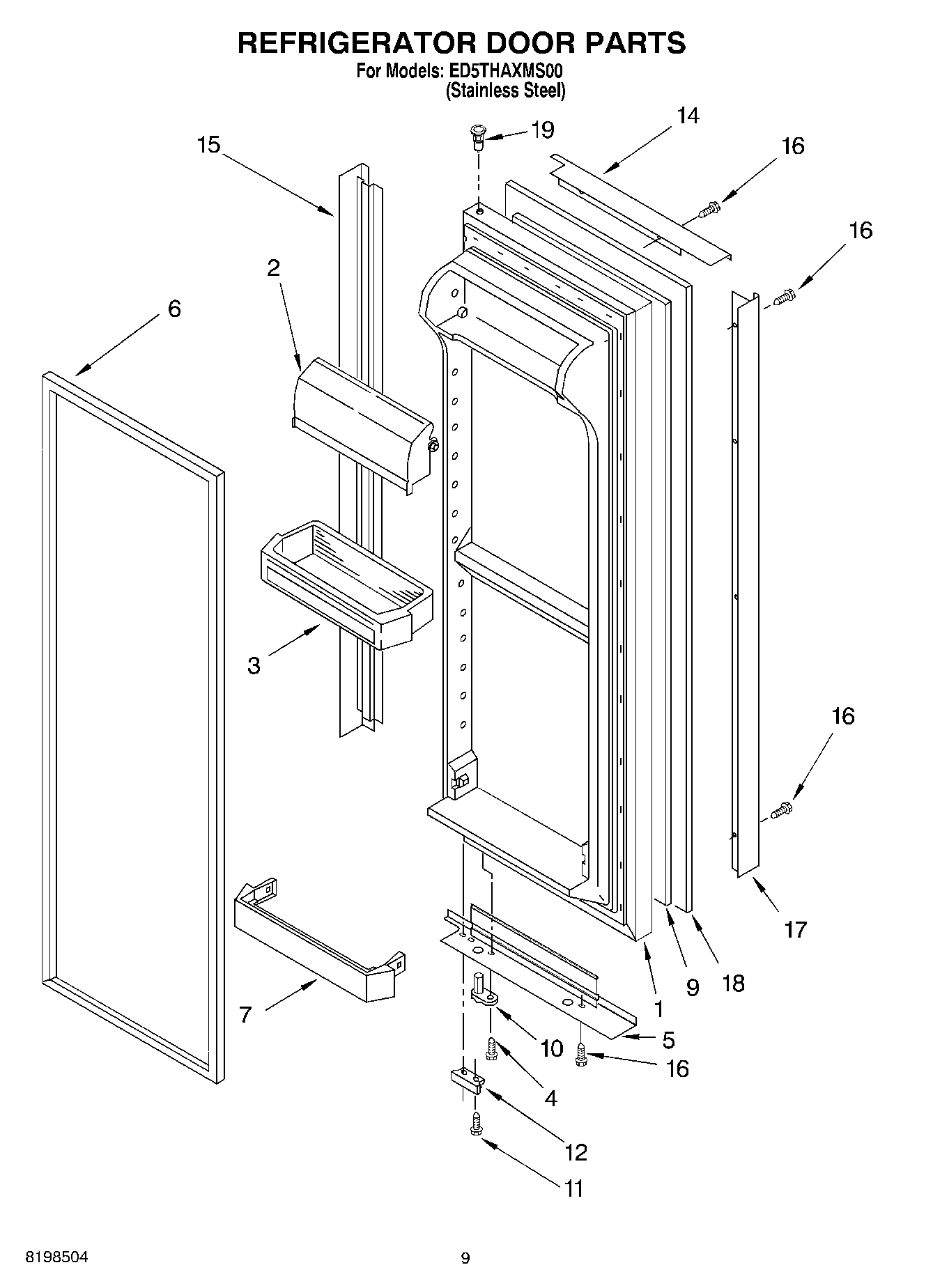

ED5THAXMS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Black)
2WP2256101 Whirlpool Dairy Door
3WPW10321304 Whirlpool Refrigerator Door Shelf Bin
4WP3400012 Whirlpool Refrigerator Screw
5Trim, Door Bottom (Stainless Steel)
62159083 Whirlpool Gasket Door
7WP2156022 Whirlpool Refrigerator Door Trim
9Filler Board
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Black)
14Trim, Door Top (Stainless Steel)
15Trim, Hinge Side (Stainless Steel)
16Screw
17Handle (Stainless Steel)
18Panel, Door (Stainless Steel)
19WP2182181 Whirlpool Refrigerator Thimble
