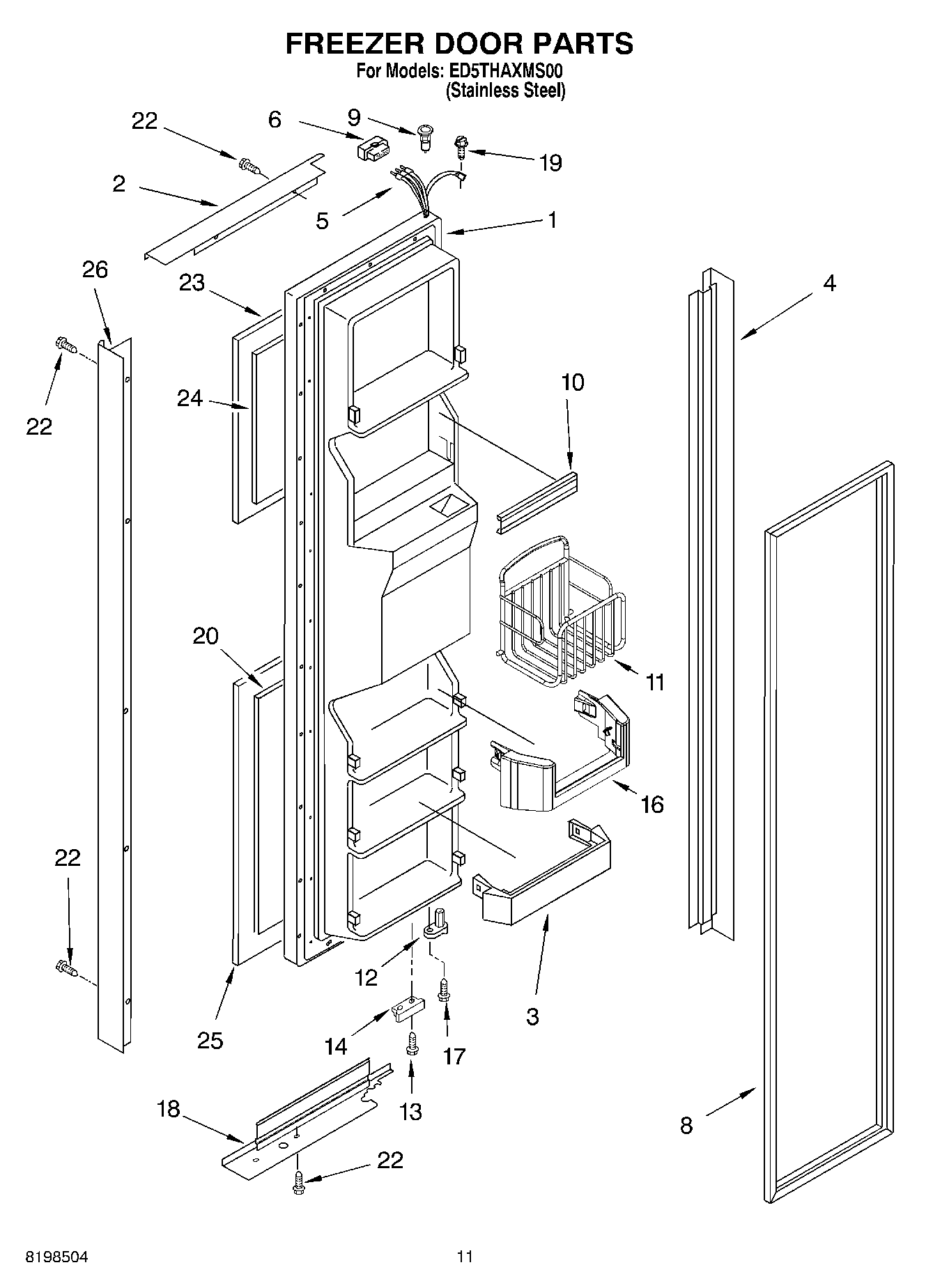

ED5THAXMS00 07 – FREEZER DOOR PARTSadmin2025-04-26T09:48:02+00:00ED5THAXMS00 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes 8 And Dispenser Front Parts) (Black) |
| 2 | Trim, Door Top (Stainless Steel) |
| 3 | WP2171157 Whirlpool Shelf Trim |
| 4 | Trim, Hinge Side (Stainless Steel) |
| 5 | 2198619 Whirlpool Refrigerator Wire Harness |
| 6 | WP2154473 Whirlpool Refrigerator Connector |
| 8 | 2159082 Whirlpool Freezer Door Gasket Black |
| 9 | WP2182181 Whirlpool Refrigerator Thimble |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 11 | Basket, Tilt Out |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Black) |
| 16 | TRIVET, TILT-OUT |
| 17 | WP3400012 Whirlpool Refrigerator Screw |
| 18 | Trim, Door Bottom (Stainless Steel) |
| 19 | WP489128 Whirlpool Refrigerator Screw |
| 20 | Filler, Board Lower |
| 22 | Screw |
| 23 | Panel, Door Upper (Stainless Steel) |
| 24 | Filler, Board Upper |
| 25 | Panel, Door Lower (Stainless Steel) |
| 26 | Handle (Stainless Steel) |
