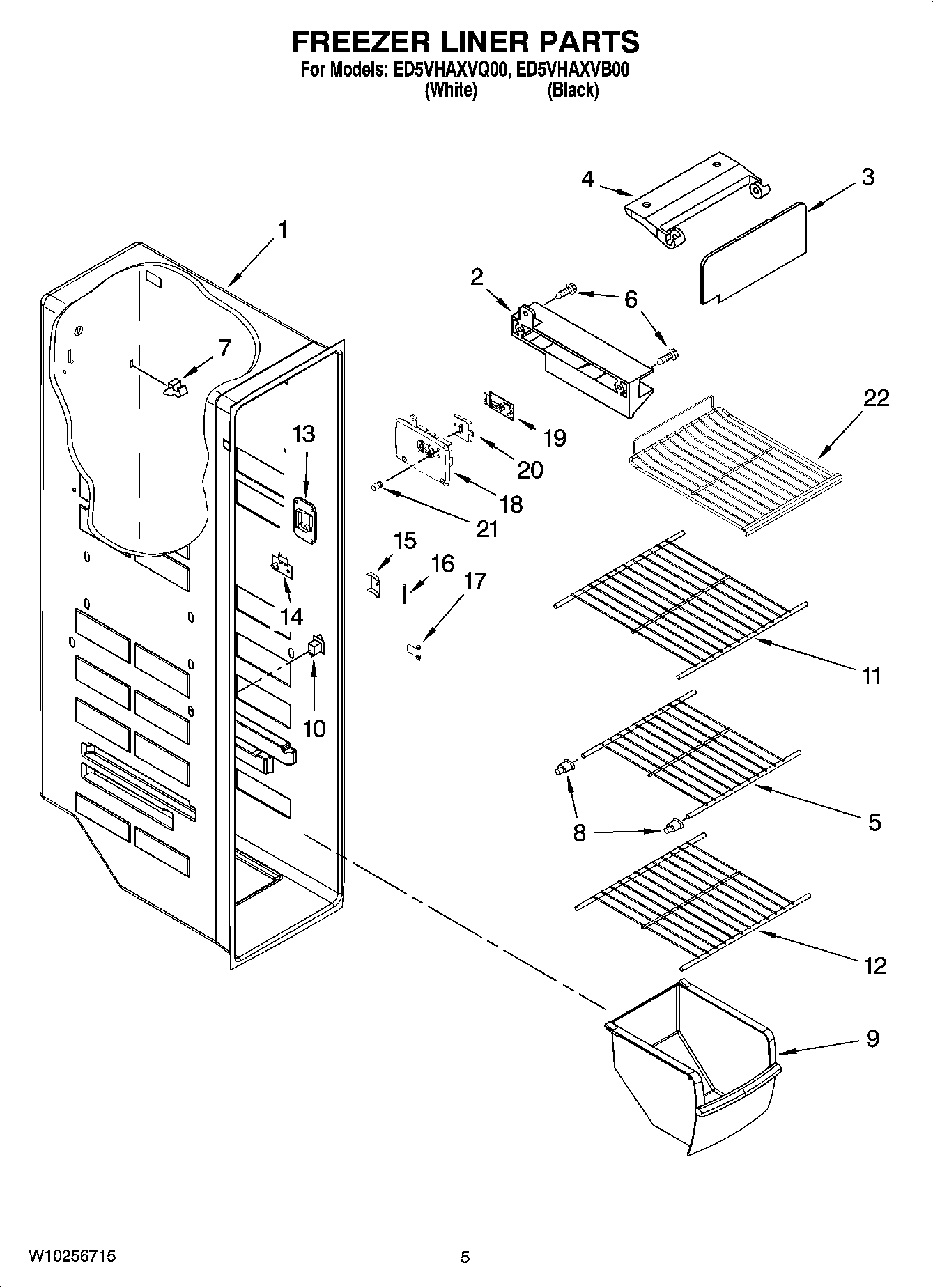

ED5VHAXVB00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Maker
3	WP2255720 Whirlpool Refrigerator Ice Maker Door
4	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
5	WPW10318948 Whirlpool Wire Shelf
6	WP489478 Whirlpool Refrigerator Screw
7	2215823 Whirlpool Refrigerator Clip
8	WPW10130299 Whirlpool Refrigerator Cup
9	WPW10144409 Whirlpool Refrigerator Freezer Bin
10	W11457217 Whirlpool Refrigerator Rocker Switch Combination
11	WPW10318961 Whirlpool Refrigerator Wire Shelf
12	WPW10318947 Whirlpool Wire Shelf
13	WP2198587 Whirlpool Refrigerator Cover
14	W10757851-includeCORE Whirlpool Electronic Control+Core
15	WP2198633 Whirlpool Refrigerator Flipper
16	WP2198634 Whirlpool Door Pin
17	WP2198635 Whirlpool Refrigerator Spring
18	Cover, Receiver
20	2315398 Whirlpool Refrigerator Slide
21	WP2198643 Whirlpool Refrigerator Lens
22	WPW10317556 Whirlpool Refrigerator Wire Shelf
