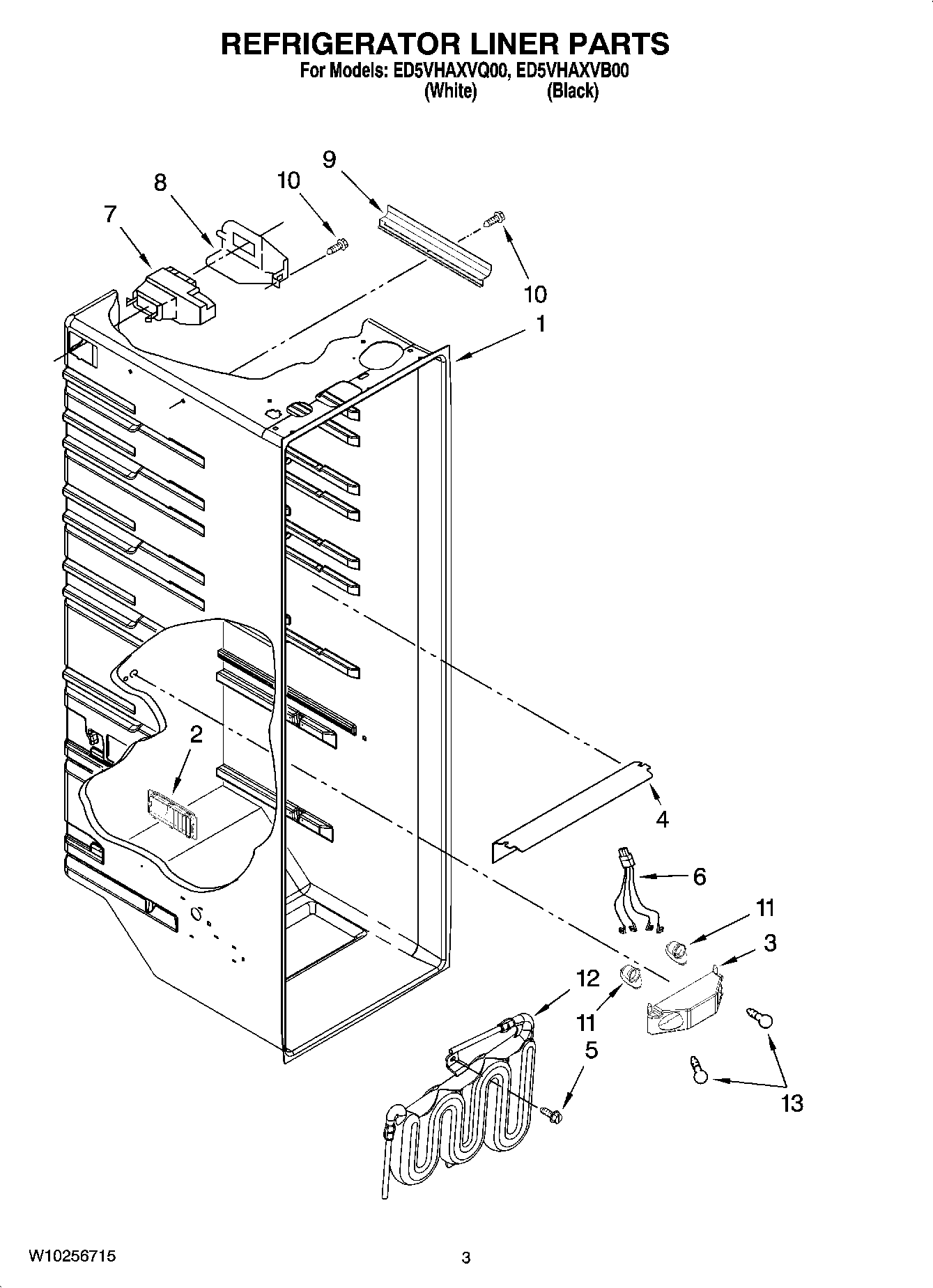

ED5VHAXVQ00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Louver
3Bracket, Dual Crisper Light
4Light Lens
5Screw (2)
62311637 Whirlpool Refrigerator Wire Harness
7WPW10151375 Whirlpool Refrigerator Diffuser
82152019 Whirlpool Refrigerator Cover
92150331 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13RANGE ONLY 40W 120V APPL BULB
