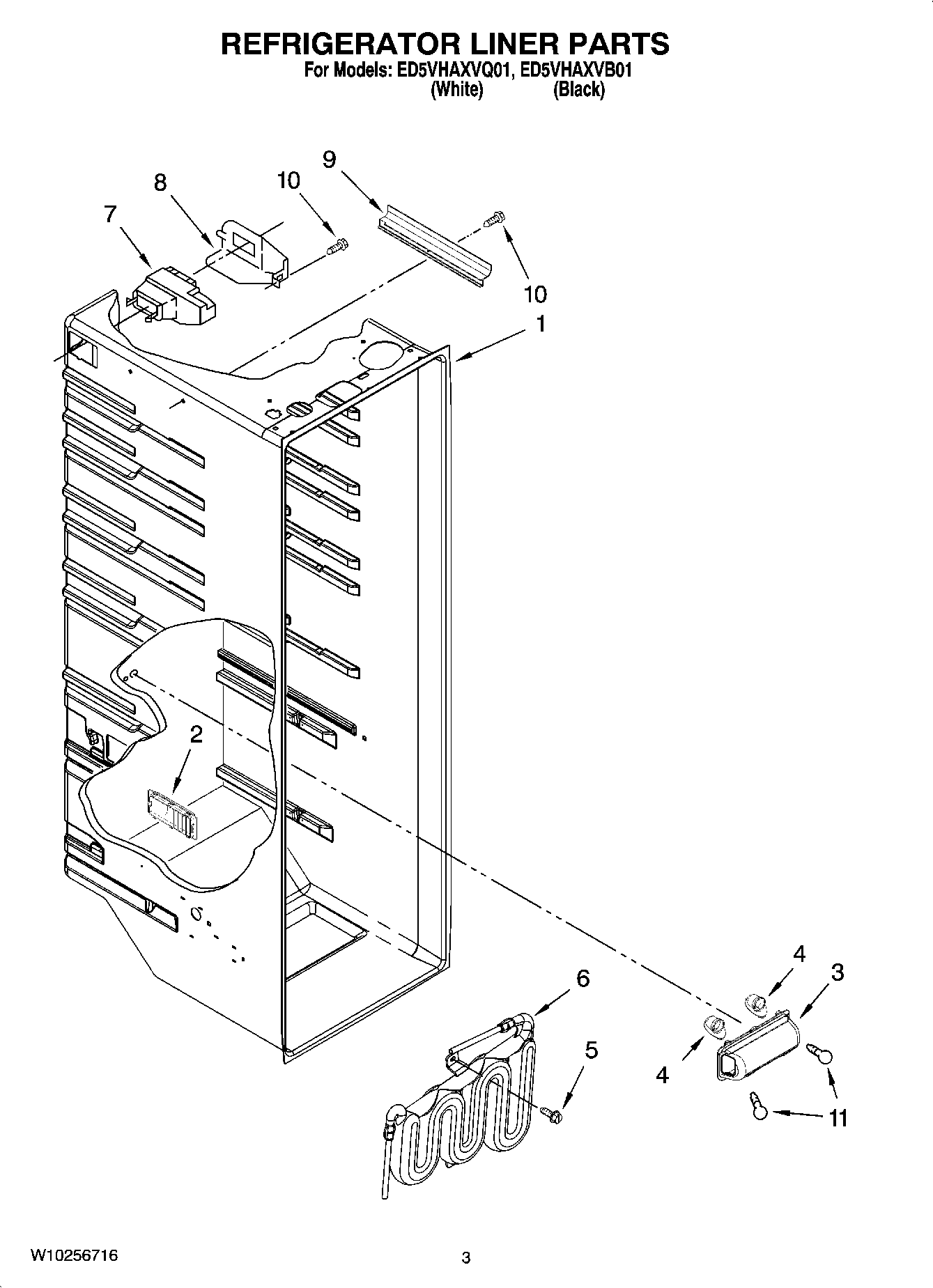

ED5VHAXVQ01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Louver
3W11239891 Whirlpool Refrigerator Light Lens
4RANGE ONLY 40W 120V APPL BULB
5Screw (2)
6RESERVOIR
7WPW10151375 Whirlpool Refrigerator Diffuser
82152019 Whirlpool Refrigerator Cover
92150331 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
