ED5VHAXVQ01 10 – AIR FLOW PARTS

ED5VHAXVQ01 10 – AIR FLOW PARTS

Written by

in

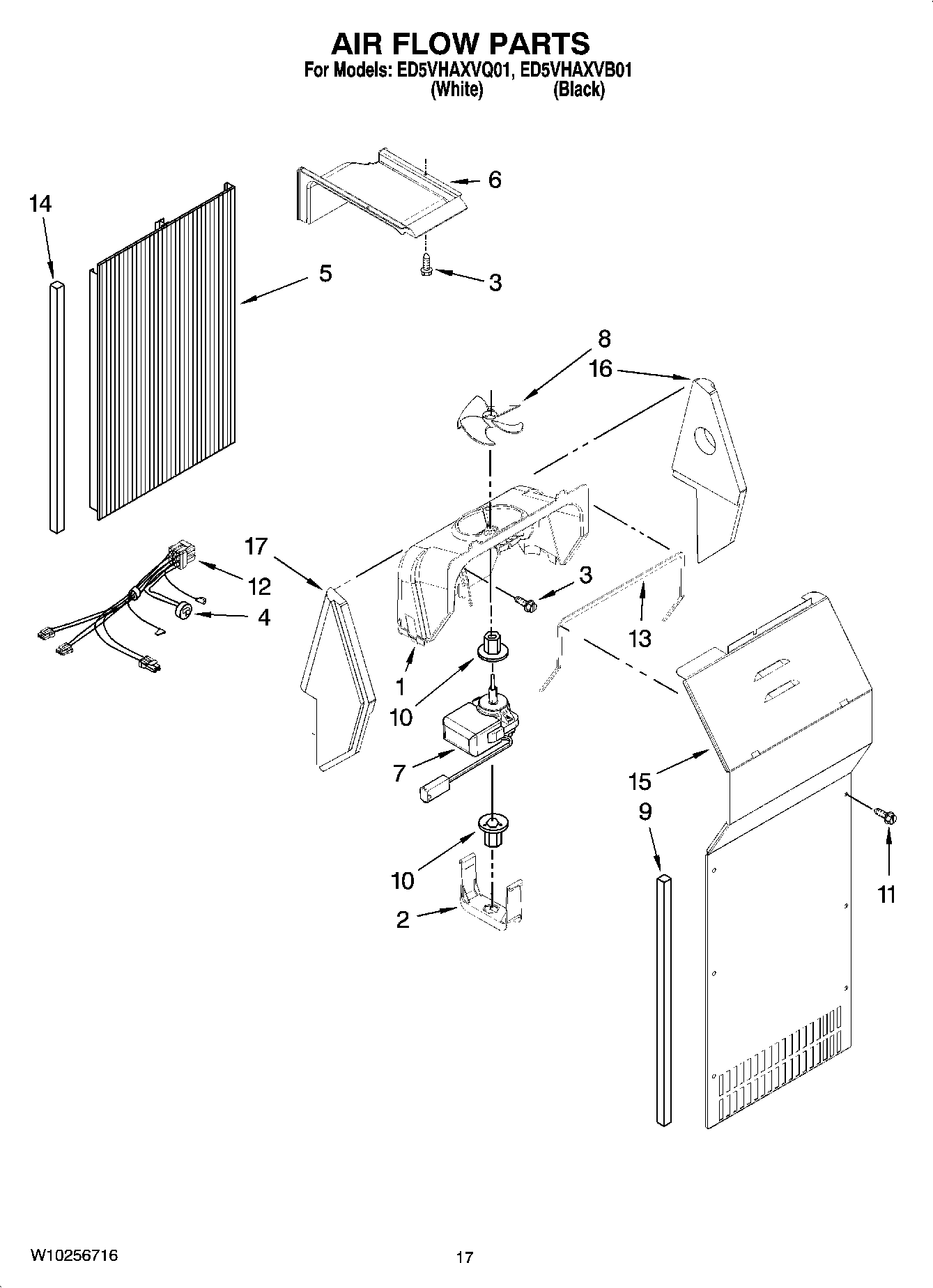

ED5VHAXVQ01 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
62313359 Whirlpool Refrigerator Air Duct
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
114389654 Whirlpool Screw
12W11225843 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
144388500 Whirlpool Refrigerator Gasket
15Cover, Evaporator (Includes 9)
164388358 Whirlpool Refrigerator Support Bracket
