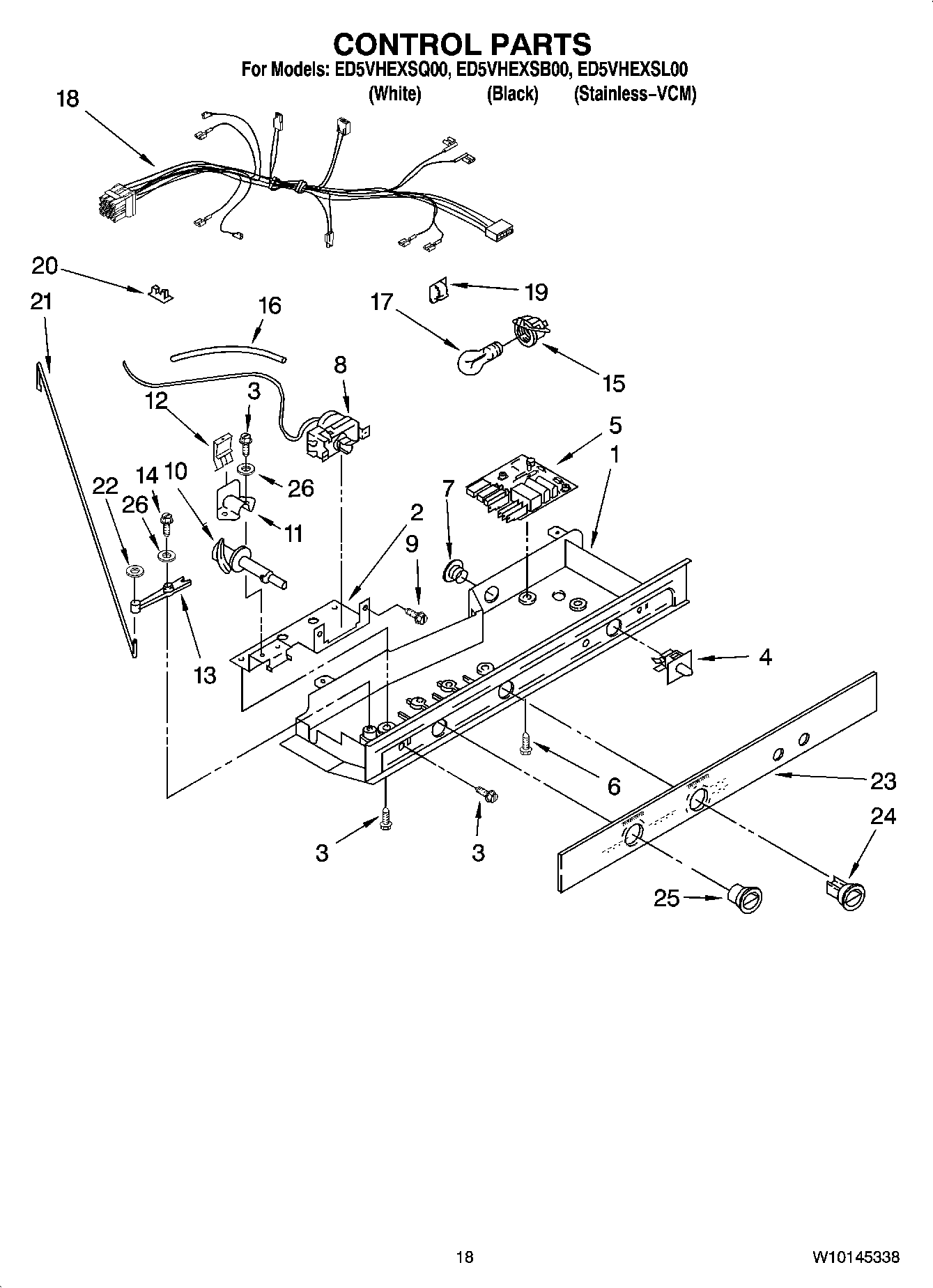

ED5VHEXSB00 11 – CONTROL PARTS

ED5VHEXSB00 11 – CONTROL PARTS

Written by

in

ED5VHEXSB00 11 – CONTROL PARTS

Products

PositionProduct
1Control Box
2Mounting Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
54388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
6489392 Whirlpool Refrigerator Screw
7940014 Whirlpool Refrigerator Primary Button Plug
8WP2198202 Whirlpool Refrigerator Temperature Thermostat
9WP965173 Whirlpool Dishwasher Screw
10WP2182195 Whirlpool Refrigerator Cam
111110560 Whirlpool Refrigerator Bearing
12WP2196062 Whirlpool Refrigerator Clip
13Pivot Arm
14627068 Whirlpool Refrigerator Screw
154387478 Whirlpool Refrigerator Light Socket
16WP2196003 Whirlpool Refrigerator Bar Riser
17RANGE ONLY 40W 120V APPL BULB
18Control Box Harness
19WP1115374 Whirlpool Refrigerator Clip
20CLIP, WIRING
21Connecting Rod
22Fastener, Push-On
23Escutcheon, Control Box
242182111 Whirlpool Refrigerator Thermal Knob
25Knob, Air Control
26489203 Whirlpool Refrigerator Washer
