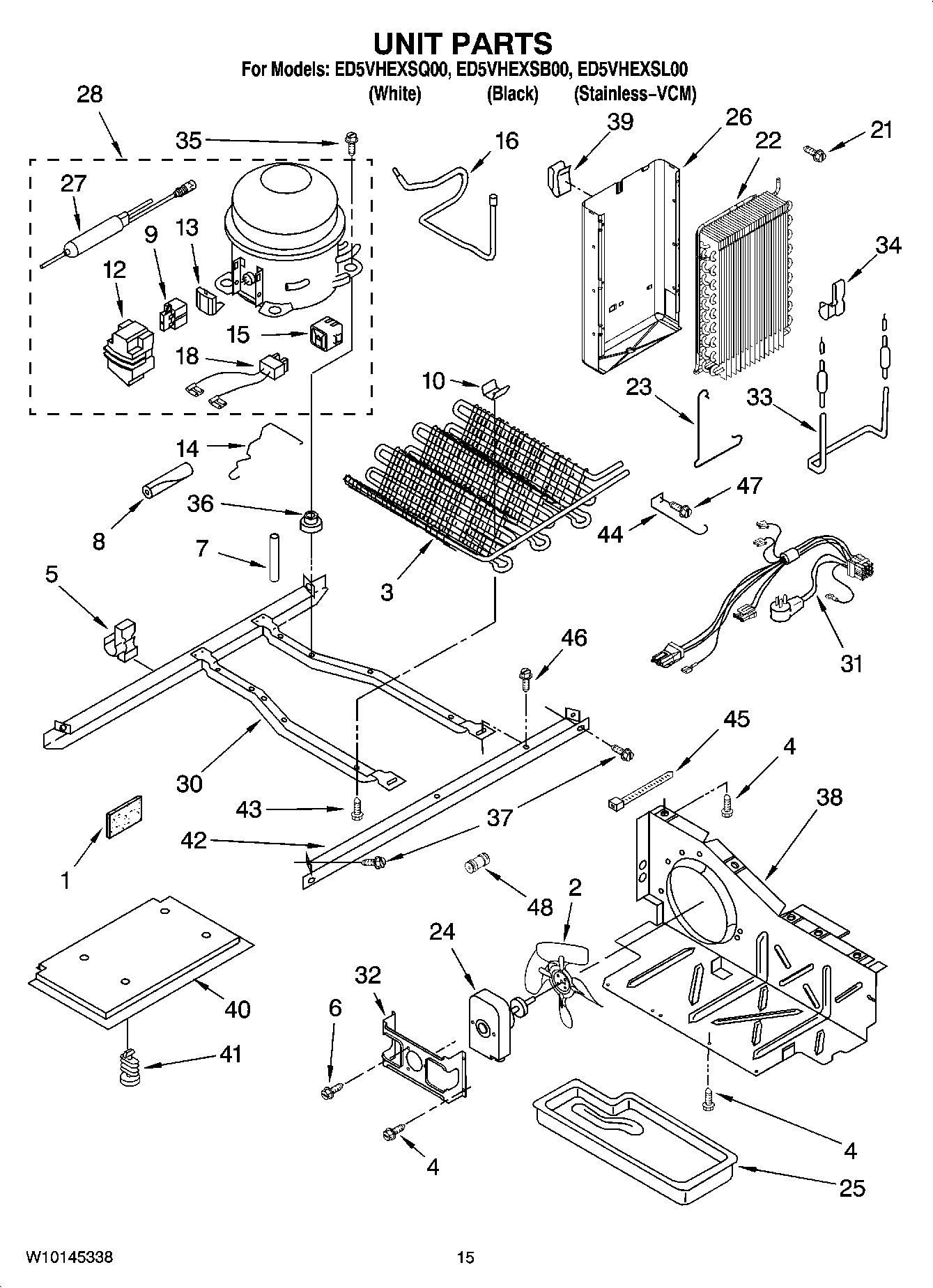

ED5VHEXSL00 09 – UNIT PARTSadmin2025-04-26T09:47:39+00:00ED5VHEXSL00 09 – UNIT PARTS ProductsPositionProduct1W11553819 Whirlpool Refrigerator Insulation2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube6WP8533993 Whirlpool Refrigerator Screw7Bushing, Compressor8SLEEVE9W10920279 Whirlpool Refrigerator Start Relay10W10683556 Whirlpool Refrigerator Clip12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2154697 Whirlpool Refrigerator Overload142223313 Whirlpool Clip15WP2304885 Whirlpool Refrigerator Start Device16WP2205765 Whirlpool Refrigerator Tube18WP2172890 Whirlpool Refrigerator Wire21WP489478 Whirlpool Refrigerator Screw22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27WPW10143759 Whirlpool Dryer Filter27W10843121 Whirlpool Refrigerator Tube28W10139460 Whirlpool Refrigerator Compressor302304904 Whirlpool Frame Assembly31Unit, Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323198 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip36876811 Whirlpool Grommet36WP4387558 Whirlpool Refrigerator Compressor Grommet37489340 Whirlpool Refrigerator Screw38W10896764 Whirlpool Refrigerator Air Baffle39Clip, Heat Shield40Unit Cover, Bottom41489396 Whirlpool Refrigerator Clip422305374 Whirlpool Refrigerator Unit Rail43W11544659 Whirlpool Refrigerator Screw44Guard, Fan45WPW10339879 Whirlpool Wire Tie46WP489427 Whirlpool Refrigerator Screw47WPW10141625 Whirlpool Refrigerator Screw Assembly48978026 Whirlpool Refrigerator Primary Valve48Following Parts Not Illustrated and Optional Parts Not Included48VALVE, ACCESS (5/8``)48876764 Whirlpool Refrigerator Primary Valve48VALVE, ACCESS (1/2``)48WP978025 Whirlpool Refrigerator Valve48978030 Whirlpool Refrigerator Valve48WPW10334458 Whirlpool Refrigerator Connector48978027 Whirlpool Refrigerator Primary Valve48REFRIGERANT CHARGE
