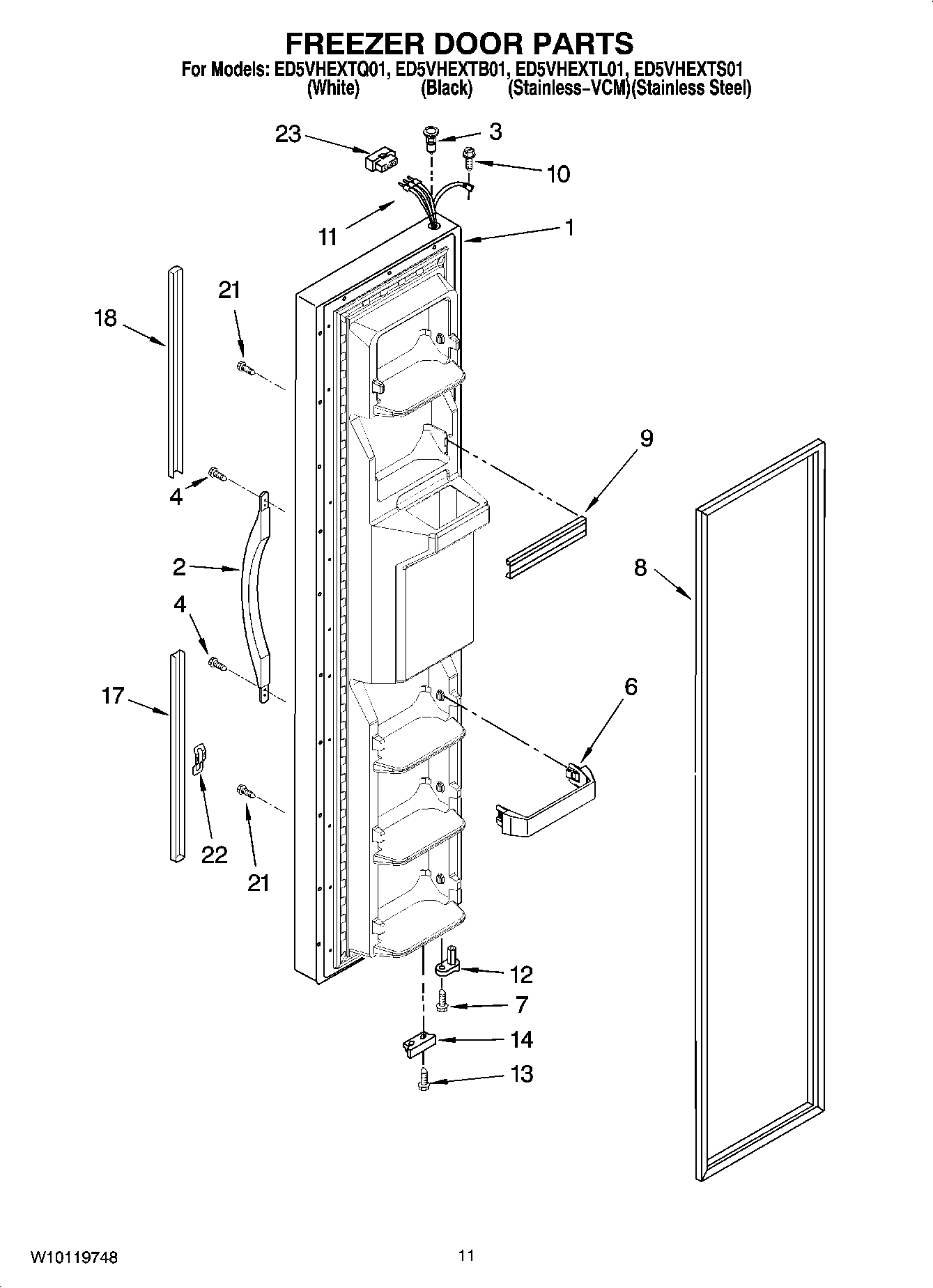

ED5VHEXTL01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle, Center (White)
2	WP2186649B Whirlpool Refrigerator Handle
3	WP2182181 Whirlpool Refrigerator Thimble
4	WP489491 Whirlpool Refrigerator Screw
6	WP2309718 Whirlpool Refrigerator Door Trim
7	WP3400012 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2311641 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
17	WP2194969B Whirlpool Refrigerator Handle Trim
17	Extension, Bottom (White)
18	Extension, Top (Black)
18	WP2194973W Whirlpool Door Trim
21	WP3400852 Whirlpool Refrigerator Screw
22	WP2195327 Whirlpool Refrigerator Clip
23	WP2154473 Whirlpool Refrigerator Connector
