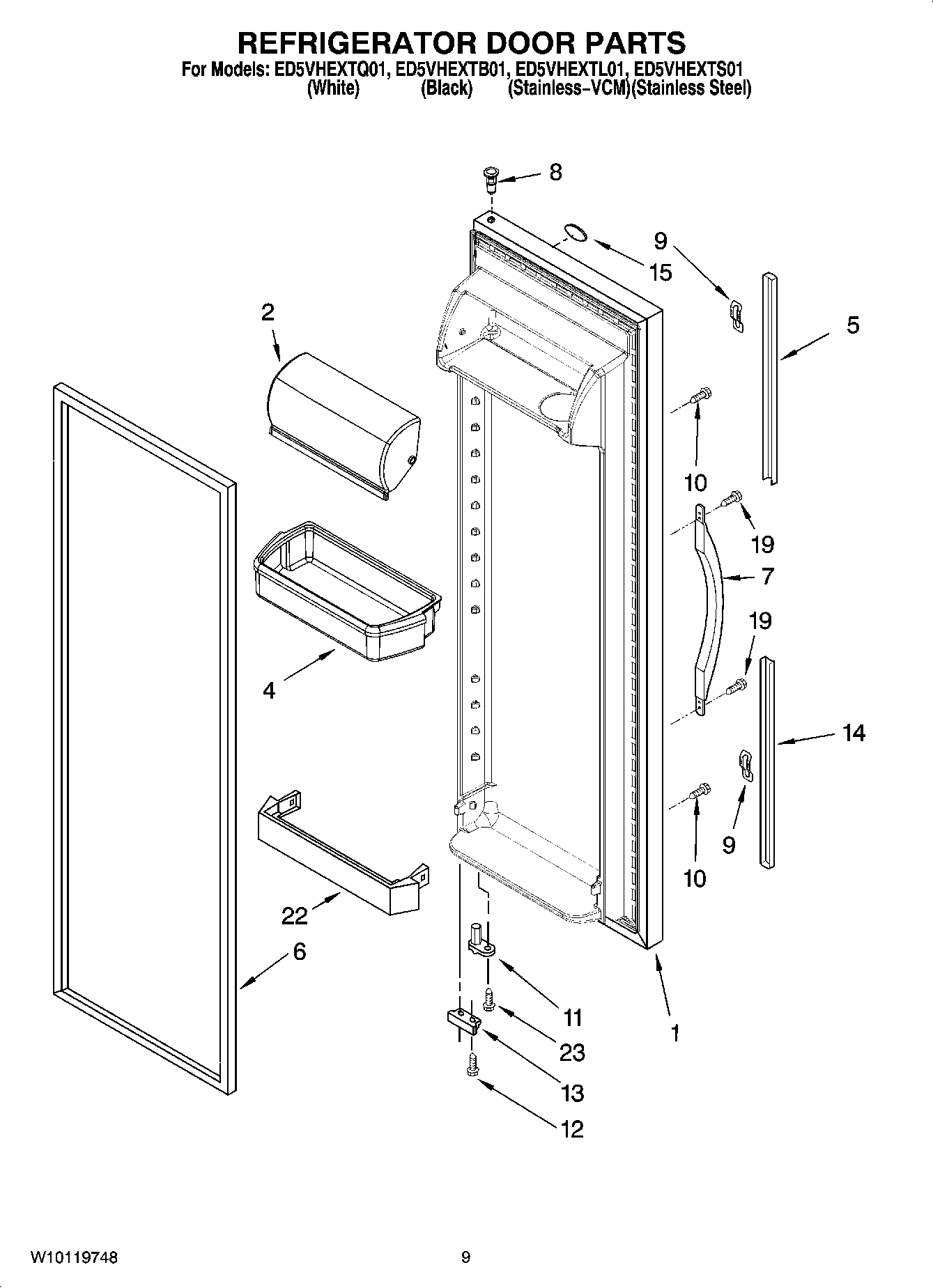

ED5VHEXTQ01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Stainless)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (Stainless-VCM)
2	WP2256101 Whirlpool Dairy Door
4	WP2187172 Whirlpool Refrigerator Door Shelf Bin
5	Extension, Top (Black)
5	WP2194973W Whirlpool Door Trim
6	2159075 Whirlpool Door Gasket Seal
6	2159083 Whirlpool Gasket Door
7	WP2186649B Whirlpool Refrigerator Handle
7	Handle, Center (White)
8	WP2182181 Whirlpool Refrigerator Thimble
9	WP2195327 Whirlpool Refrigerator Clip
10	WP3400852 Whirlpool Refrigerator Screw
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
14	Extension, Bottom (White)
14	WP2194969B Whirlpool Refrigerator Handle Trim
15	WP2213265 Whirlpool Refrigerator Nameplate
19	WP489491 Whirlpool Refrigerator Screw
22	WP2177962K Whirlpool Refrigerator Door Trim
23	WP3400012 Whirlpool Refrigerator Screw
