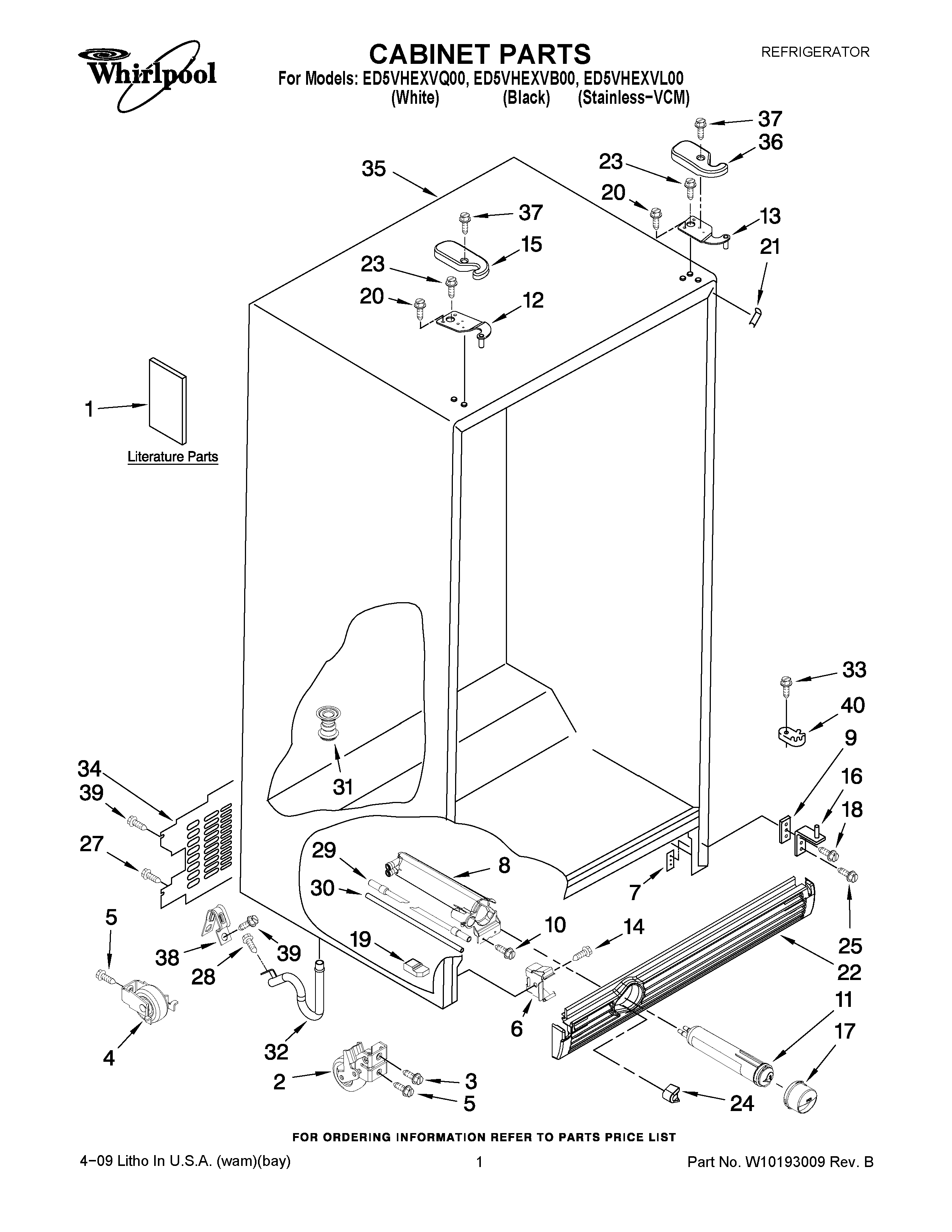

ED5VHEXVB00 01 – CABINET PARTS

Products

Position	Product
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Energy Label
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP2260518W Whirlpool Refrigerator Filter Cap
17	WP2260518B Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	Block, Housing Support
20	W10853301 Whirlpool Refrigerator Screw
21	WPW10283959 Whirlpool Refrigerator Filler
21	W11252732 Whirlpool Refrigerator Filler
22	WPW10311032 Whirlpool Refrigerator Grille
22	WPW10311033 Whirlpool Refrigerator Grille
24	WP2260503B Whirlpool Refrigerator Button
24	2260503W Whirlpool Refrigerator Button
25	W10856122 Whirlpool Refrigerator Screw
27	WP488488 Whirlpool Refrigerator Screw
28	WP489464 Whirlpool Refrigerator Screw
29	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
30	WPW10350006 Whirlpool Refrigerator Water Tube
31	W11566763 Whirlpool Fitting
32	W11512417 Whirlpool Drain Connector
33	WP489483 Whirlpool Screw
34	WP2188755 Whirlpool Rear Panel
35	Cabinet, (Not A Serviceable Part)
36	WP2203408W Whirlpool Refrigerator Cover
36	WP2203408B Whirlpool Refrigerator Cover
37	WP8281227 Whirlpool Screw
38	549193 Whirlpool Refrigerator Power Clamp
40	WPW10329686 Whirlpool Door Cam Black
