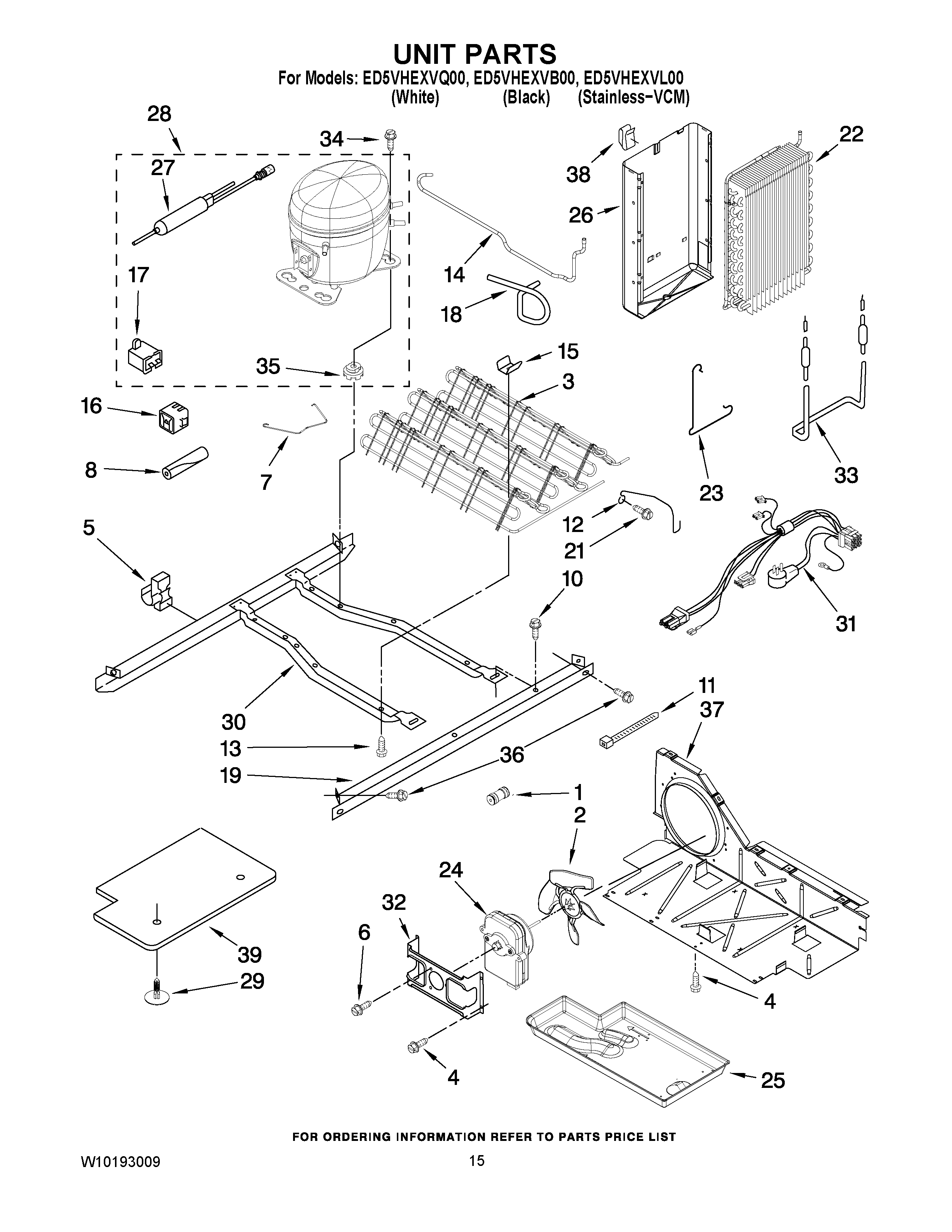

ED5VHEXVB00 09 – UNIT PARTS

ED5VHEXVB00 09 – UNIT PARTS

Written by

in

ED5VHEXVB00 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	REFRIGERANT CHARGE 5.0 oz. (R-134A)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	W11661170 Whirlpool Clip
8	SLEEVE
10	WP489427 Whirlpool Refrigerator Screw
11	WPW10339879 Whirlpool Wire Tie
12	2260517 Whirlpool Fan Guard
13	W11544659 Whirlpool Refrigerator Screw
14	W10210786 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WPW10189190 Whirlpool Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	W10274306 Whirlpool Refrigerator Tube
19	WPW10196323 Whirlpool Refrigerator Rail Assembly
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	W10194475 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10233961 Whirlpool Refrigerator Compressor
29	489396 Whirlpool Refrigerator Clip
30	W10196321 Whirlpool Refrigerator Frame
31	WPW10309395 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
35	876811 Whirlpool Grommet
36	489340 Whirlpool Refrigerator Screw
37	Air Baffle
38	Clip, Heat Shield
39	Unit Cover, Bottom
