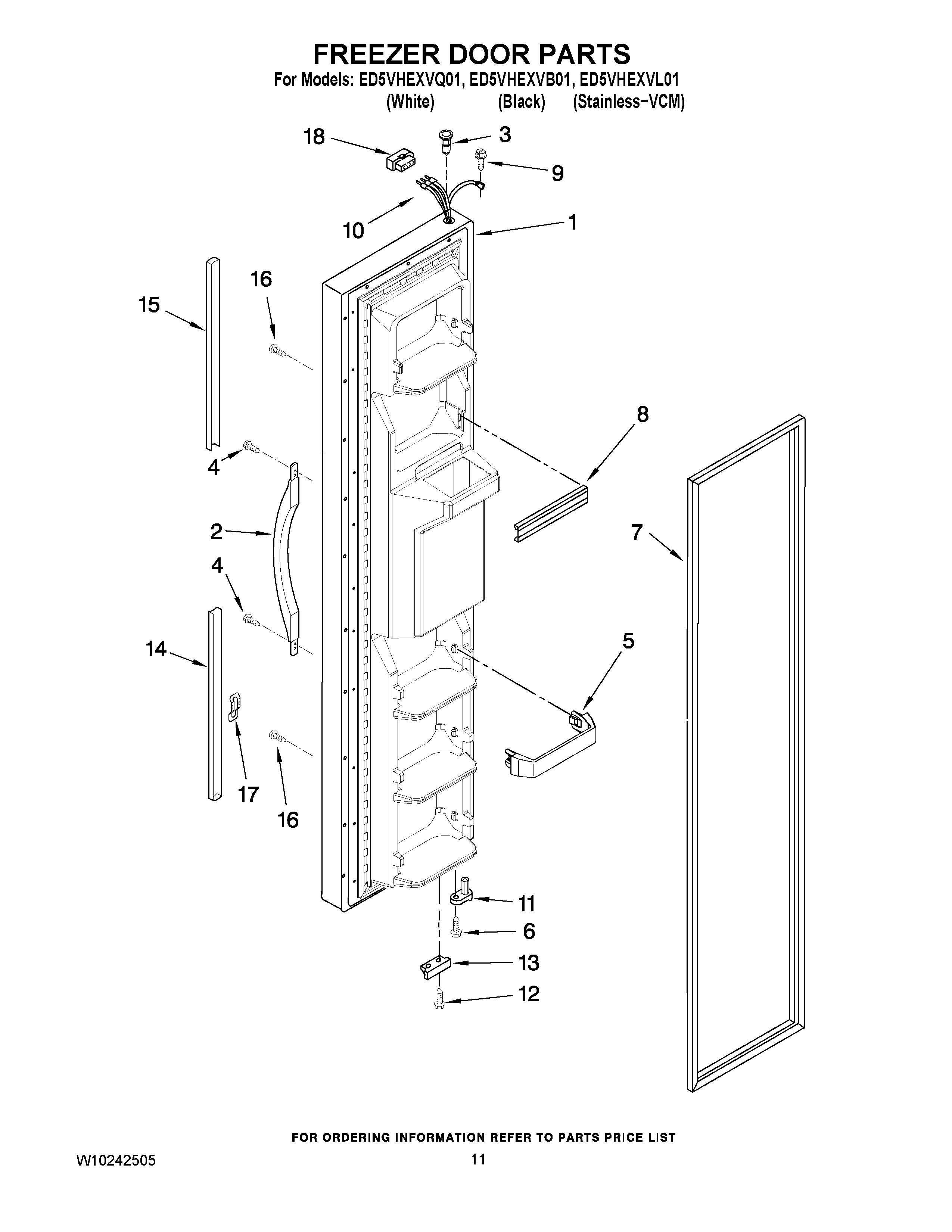

ED5VHEXVB01 07 – FREEZER DOOR PARTS

ED5VHEXVB01 07 – FREEZER DOOR PARTS

Written by

in

ED5VHEXVB01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2Handle (White)
2Handle (Black)
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
5WP2309718 Whirlpool Refrigerator Door Trim
6WP3400012 Whirlpool Refrigerator Screw
72159074 Whirlpool Door Gasket Seal
72159082 Whirlpool Freezer Door Gasket Black
8WPW10307490 Whirlpool Door Trim Assembly
9WP489128 Whirlpool Refrigerator Screw
102311641 Whirlpool Refrigerator Wire Harness
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14Extension, Bottom (Black)
14Extension, Bottom (White)
15TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
15TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
16WP3400852 Whirlpool Refrigerator Screw
17WP2195327 Whirlpool Refrigerator Clip
18WP2154473 Whirlpool Refrigerator Connector
