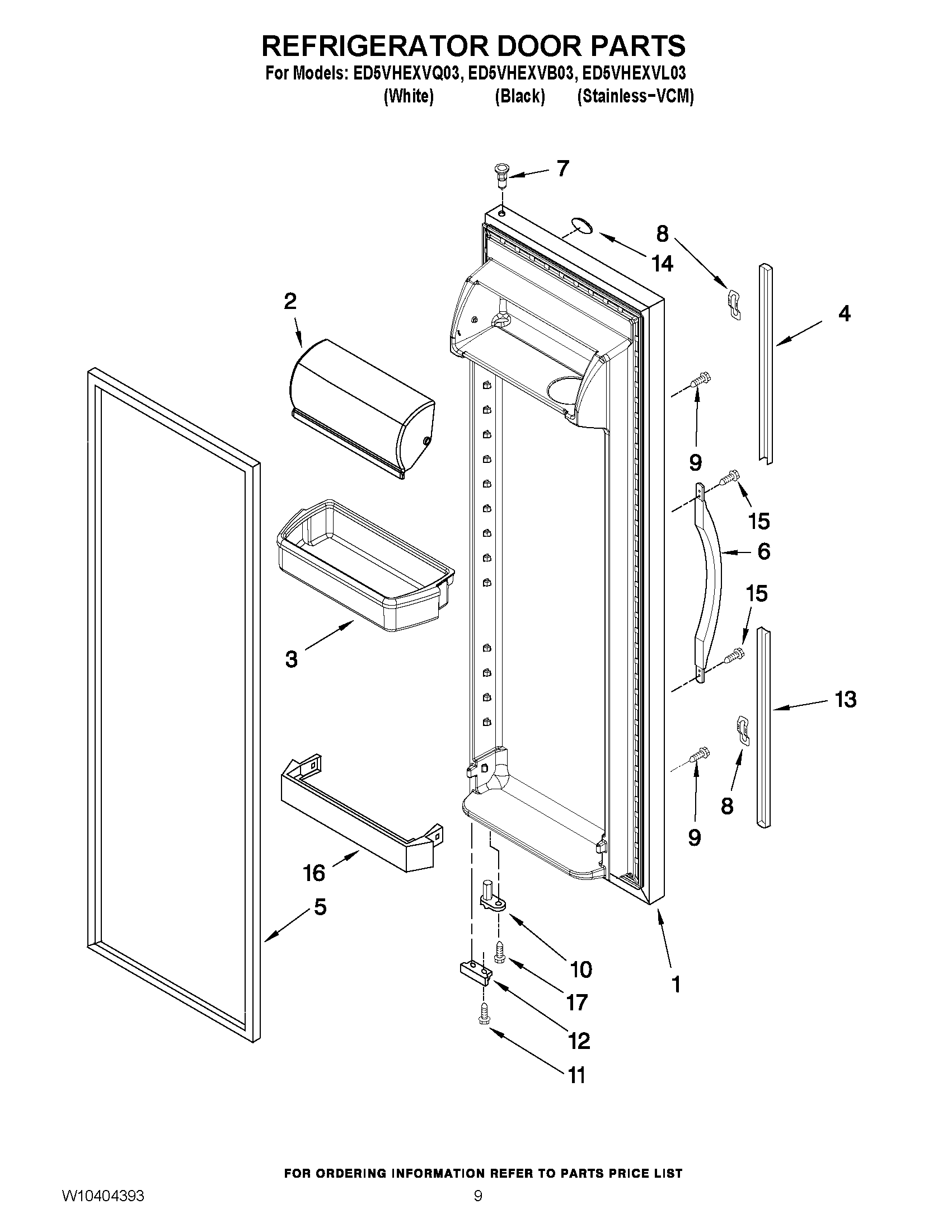

ED5VHEXVB03 06 – REFRIGERATOR DOOR PARTS

ED5VHEXVB03 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED5VHEXVB03 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless-VCM)
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Black)
2WP2256101 Whirlpool Dairy Door
3WP2187172 Whirlpool Refrigerator Door Shelf Bin
4TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
4TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
52159083 Whirlpool Gasket Door
52159075 Whirlpool Door Gasket Seal
6HANDLE (BLACK)
6HANDLE (WHITE)
7WP2182181 Whirlpool Refrigerator Thimble
8WP2195327 Whirlpool Refrigerator Clip
9WP3400852 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Black)
12BRACKET, DOOR STOP (SILVER)
13Extension, Bottom (Black)
13Extension, Bottom (White)
14WP2213265 Whirlpool Refrigerator Nameplate
15WP489491 Whirlpool Refrigerator Screw
16WP2156022 Whirlpool Refrigerator Door Trim
17WP3400012 Whirlpool Refrigerator Screw
