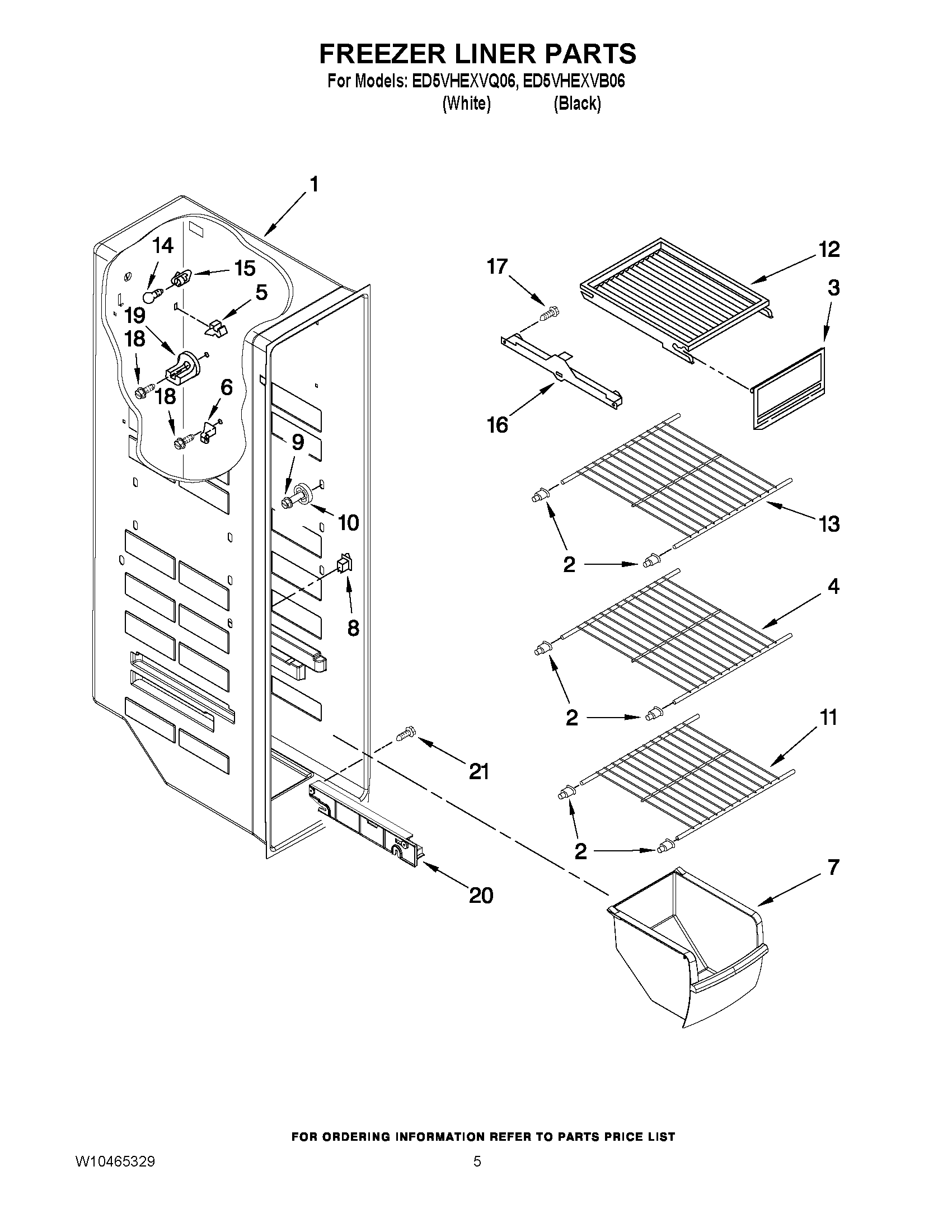

ED5VHEXVB06 04 – FREEZER LINER PARTS

ED5VHEXVB06 04 – FREEZER LINER PARTS

Written by

in

ED5VHEXVB06 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10130299 Whirlpool Refrigerator Cup
3WP2171713 Whirlpool Refrigerator Ice Door
4WPW10318947 Whirlpool Wire Shelf
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7WP2182971 Whirlpool Refrigerator Freezer Bin
8W11457217 Whirlpool Refrigerator Rocker Switch Combination
9WPW10191952 Whirlpool Refrigerator Screw
10W11527119 Whirlpool Refrigerator Shelf Stud
11SHELF, WIRE
12Shelf, Top Compartment
13SHELF, WIRE
14W11679940 Whirlpool Refrigerator Light Bulb Assembly
154387478 Whirlpool Refrigerator Light Socket
16W10845585 Whirlpool Refrigerator Track
16W10845583 Whirlpool Refrigerator Track
17718257 Whirlpool Dishwasher Screw
18W10142289 Whirlpool Air Conditioner Screw
19Stud, Rear
20WP2261449 Whirlpool Refrigerator Track
20Slide, Basket (Left Side)
21W10759522 Whirlpool Screw
