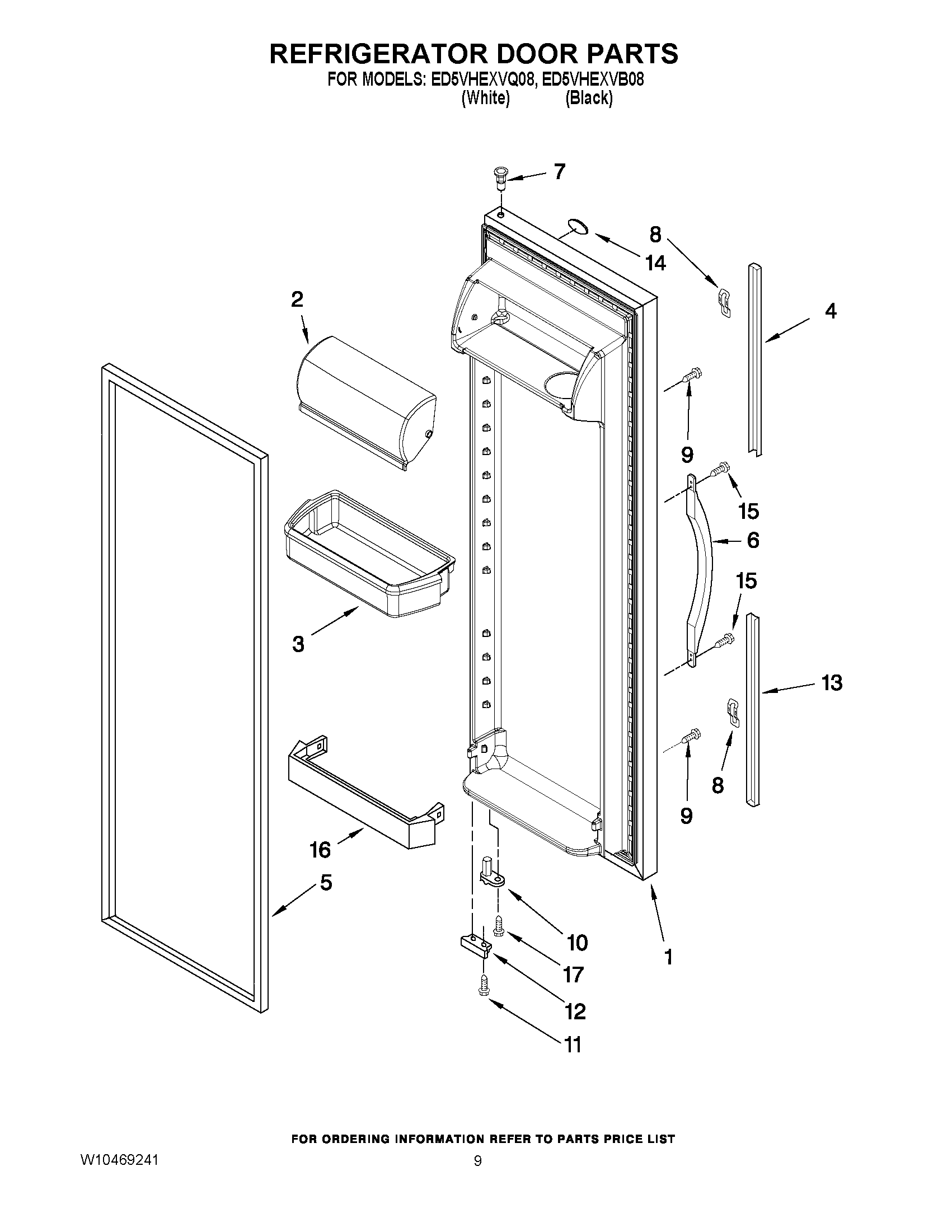

ED5VHEXVB08 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2256101 Whirlpool Dairy Door
3	WP2187172 Whirlpool Refrigerator Door Shelf Bin
4	TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
4	TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
5	2159083 Whirlpool Gasket Door
5	2159075 Whirlpool Door Gasket Seal
6	HANDLE (BLACK)
6	HANDLE (WHITE)
7	WP2182181 Whirlpool Refrigerator Thimble
8	WP2195327 Whirlpool Refrigerator Clip
9	WP3400852 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WPW10142233 Whirlpool Refrigerator Screw
12	BRACKET, DOOR STOP (BLACK)
12	BRACKET, DOOR STOP (CHROME)
13	Extension, Bottom (Black)
13	Extension, Bottom (White)
14	WP2213265 Whirlpool Refrigerator Nameplate
15	WP489491 Whirlpool Refrigerator Screw
16	WP2156022 Whirlpool Refrigerator Door Trim
17	WP3400012 Whirlpool Refrigerator Screw
