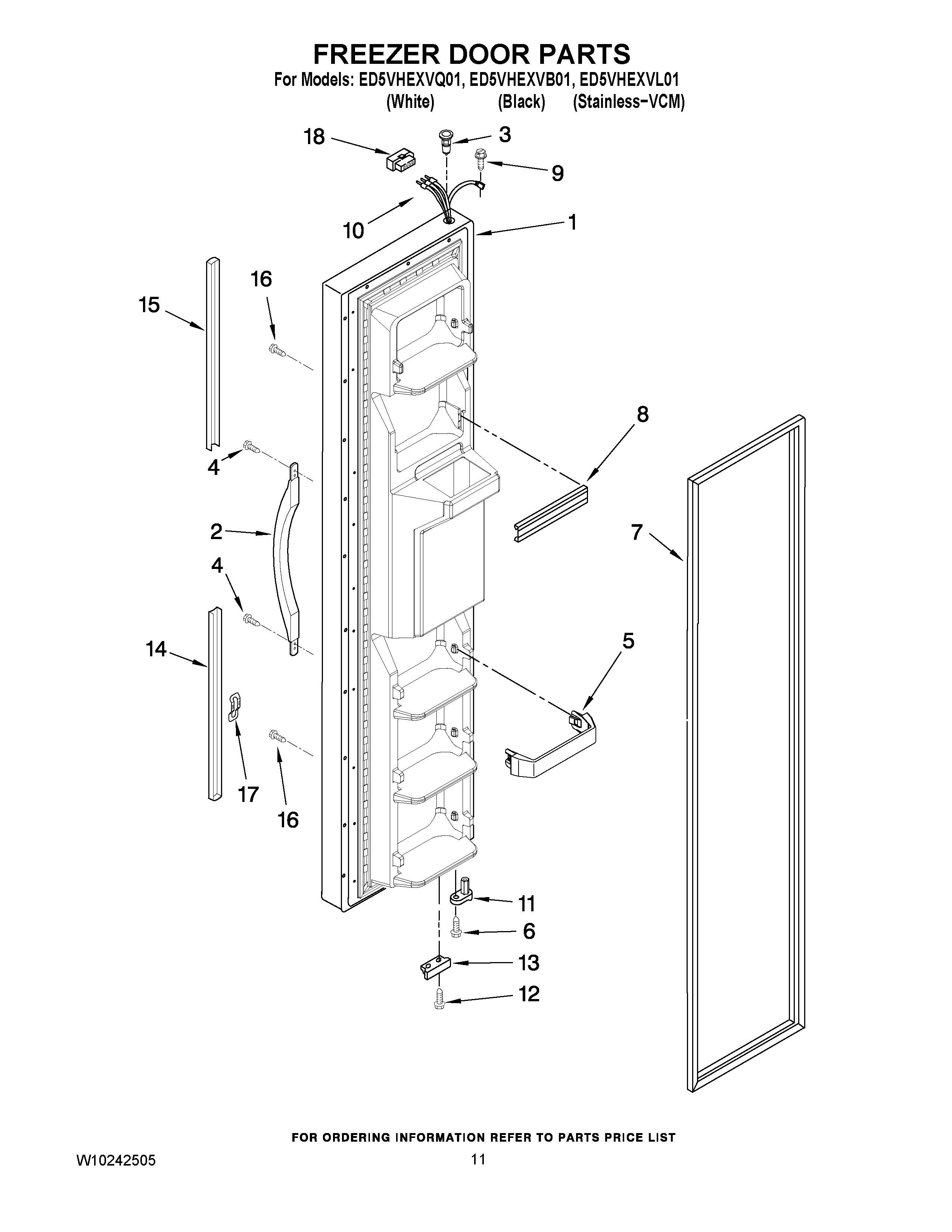

ED5VHEXVL01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2	Handle (White)
2	Handle (Black)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WP489491 Whirlpool Refrigerator Screw
5	WP2309718 Whirlpool Refrigerator Door Trim
6	WP3400012 Whirlpool Refrigerator Screw
7	2159074 Whirlpool Door Gasket Seal
7	2159082 Whirlpool Freezer Door Gasket Black
8	WPW10307490 Whirlpool Door Trim Assembly
9	WP489128 Whirlpool Refrigerator Screw
10	2311641 Whirlpool Refrigerator Wire Harness
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
14	Extension, Bottom (Black)
14	Extension, Bottom (White)
15	TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
15	TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
16	WP3400852 Whirlpool Refrigerator Screw
17	WP2195327 Whirlpool Refrigerator Clip
18	WP2154473 Whirlpool Refrigerator Connector
