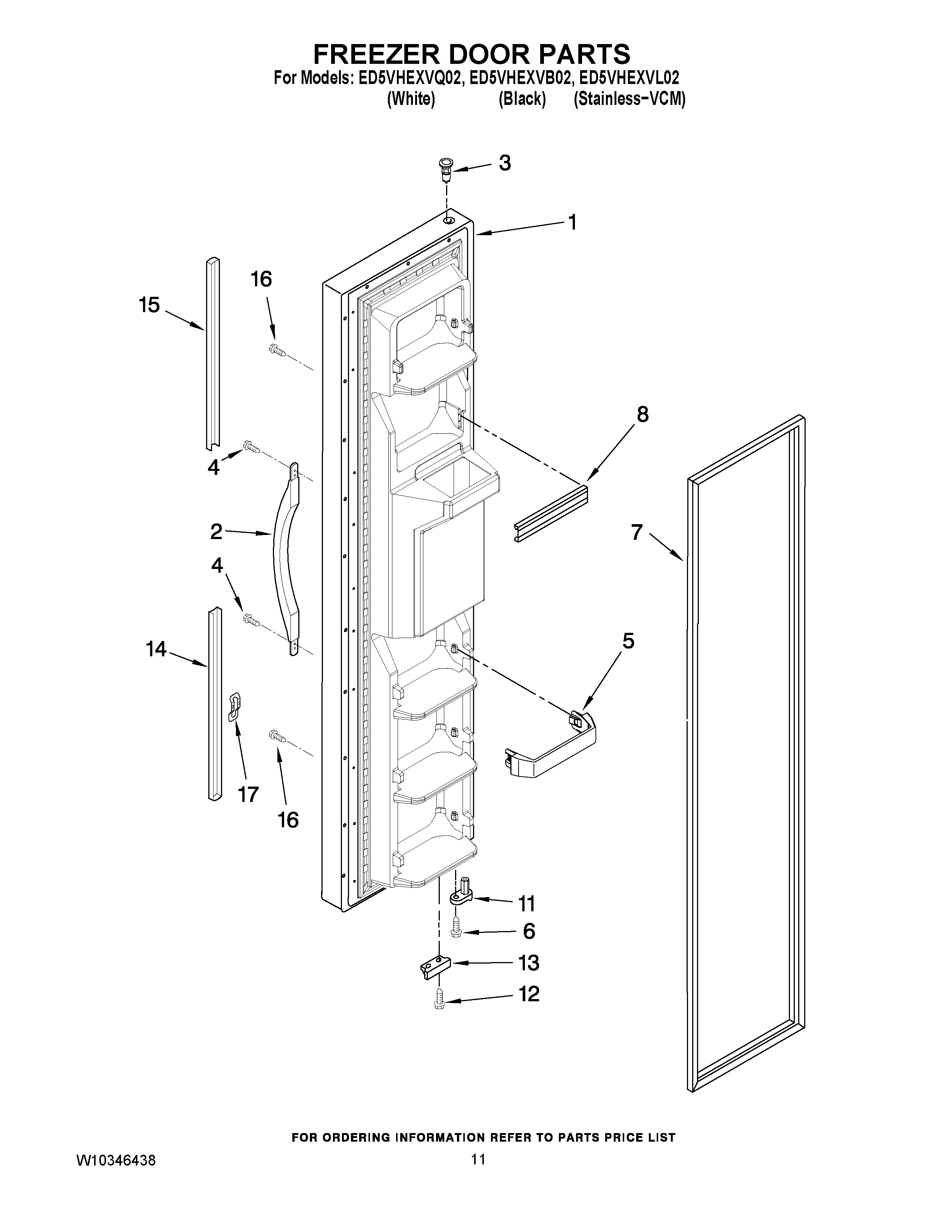

ED5VHEXVL02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS-VCM)
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
2	HANDLE (WHITE)
2	HANDLE (BLACK)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WP489491 Whirlpool Refrigerator Screw
5	WP2309718 Whirlpool Refrigerator Door Trim
6	WP3400012 Whirlpool Refrigerator Screw
7	2159082 Whirlpool Freezer Door Gasket Black
7	2159074 Whirlpool Door Gasket Seal
8	WPW10307490 Whirlpool Door Trim Assembly
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Black)
13	W10185566 Whirlpool Bracket
14	Extension, Bottom (Black)
14	Extension, Bottom (White)
15	TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
15	TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
16	WP3400852 Whirlpool Refrigerator Screw
17	WP2195327 Whirlpool Refrigerator Clip
