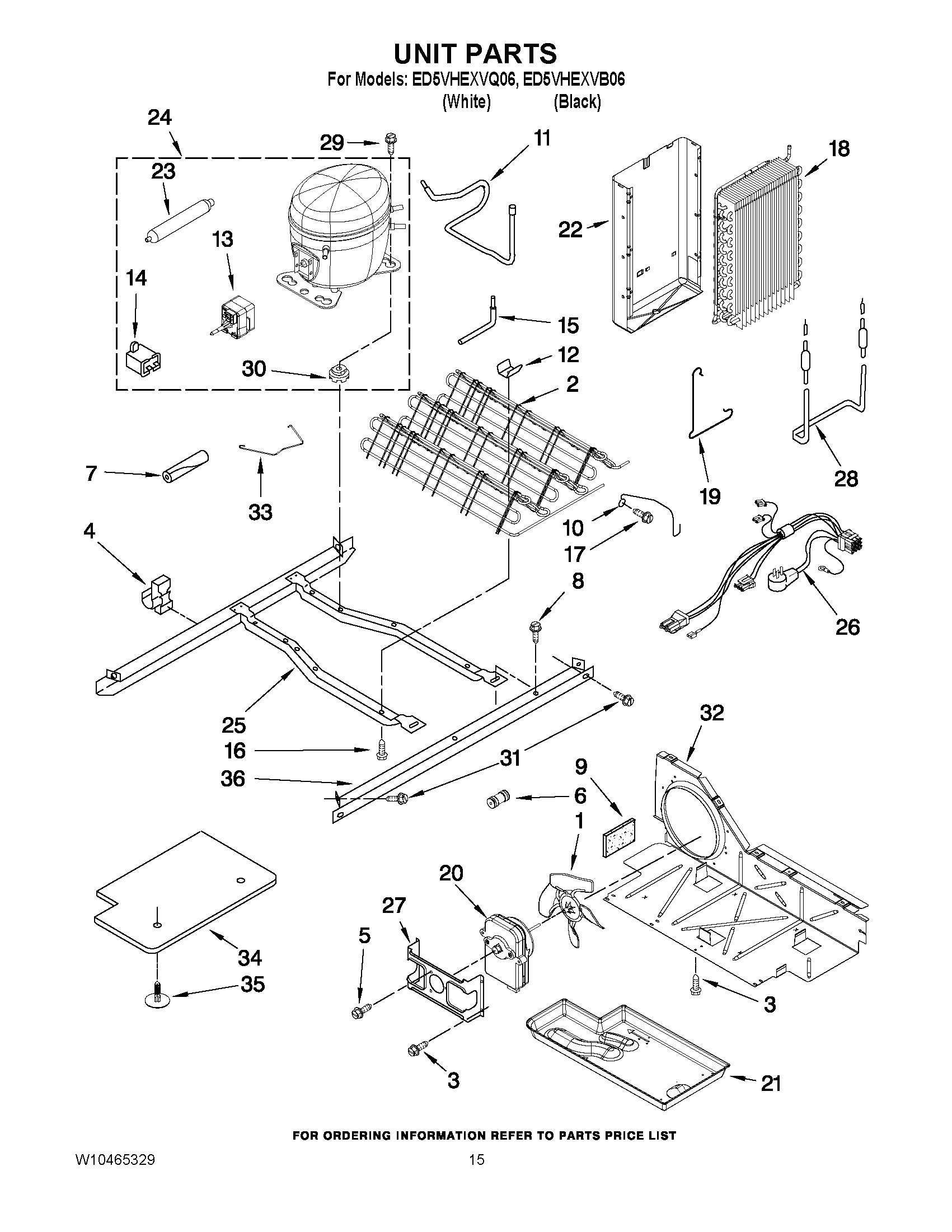

ED5VHEXVQ06 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	W10156818 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	Clip, Wire & Tube
5	WP8533993 Whirlpool Refrigerator Screw
6	WPW10334458 Whirlpool Refrigerator Connector
7	SLEEVE
8	WP489427 Whirlpool Refrigerator Screw
9	2217070 Whirlpool Foam Kit
10	2260517 Whirlpool Fan Guard
11	WP2205765 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10189190 Whirlpool Start Device
14	WPW10662129 Whirlpool Refrigerator Run Capacitor
15	W10858105 Whirlpool Refrigerator Tube
16	W11544659 Whirlpool Refrigerator Screw
17	WP489478 Whirlpool Refrigerator Screw
18	WP2188823 Whirlpool Refrigerator Evaporator
19	Clamp
20	WP2188874 Whirlpool Refrigerator Condenser Motor
21	WPW10614158 Whirlpool Refrigerator Evaporator Tray
22	Heat Shield
23	WPW10143759 Whirlpool Dryer Filter
24	W10139462 Whirlpool Refrigerator Compressor
25	W10196321 Whirlpool Refrigerator Frame
26	WPW10309395 Whirlpool Refrigerator Wire Harness
27	WP2181929 Whirlpool Refrigerator Bracket
28	WP2323198 Whirlpool Refrigerator Heater
30	876811 Whirlpool Grommet
31	489340 Whirlpool Refrigerator Screw
32	W10896764 Whirlpool Refrigerator Air Baffle
33	W10204187 Whirlpool Refrigerator Retainer
34	Unit Cover, Bottom
35	489396 Whirlpool Refrigerator Clip
36	2305374 Whirlpool Refrigerator Unit Rail
