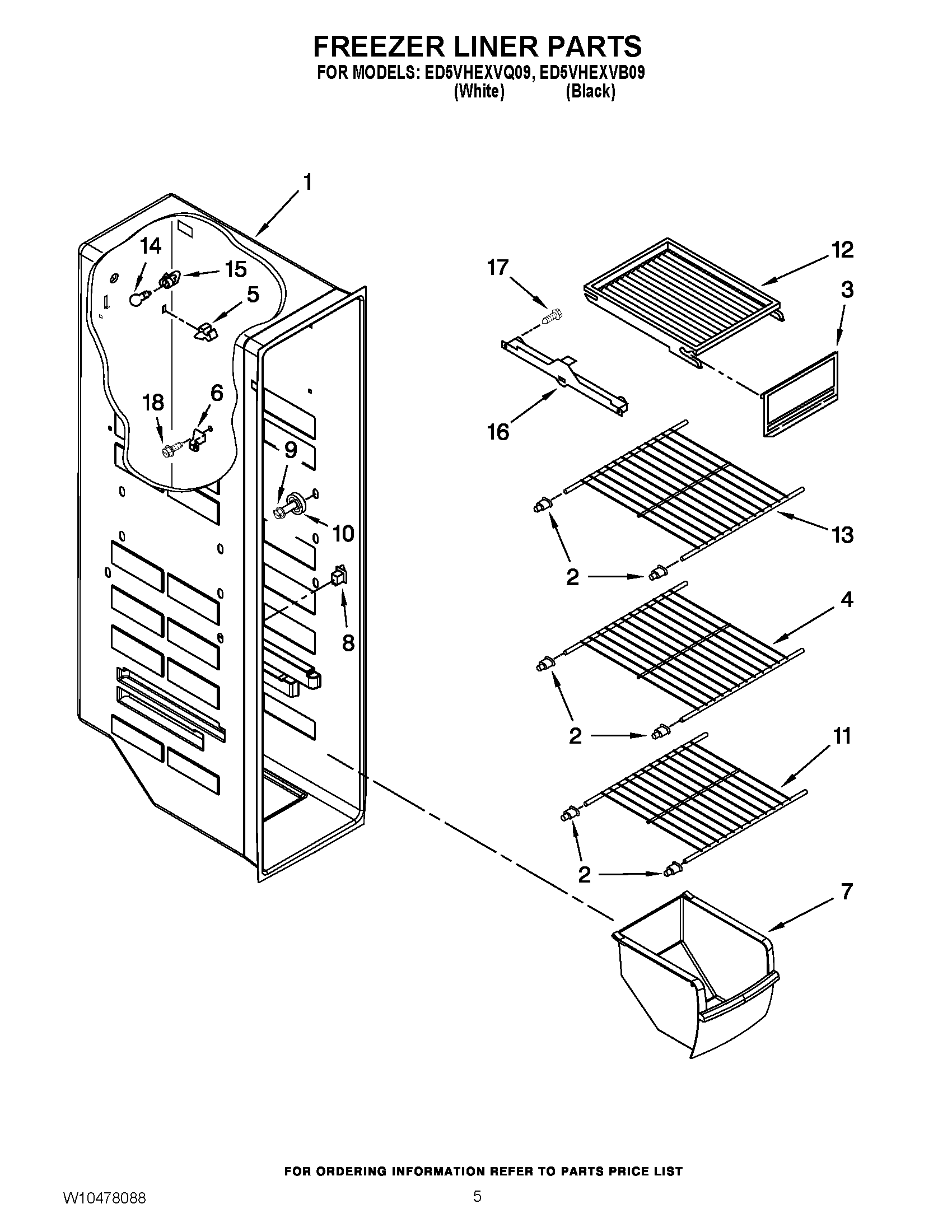

ED5VHEXVQ09 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10130299 Whirlpool Refrigerator Cup
3	WP2171713 Whirlpool Refrigerator Ice Door
4	WPW10318947 Whirlpool Wire Shelf
5	2215823 Whirlpool Refrigerator Clip
6	4388405 Whirlpool Refrigerator Shelf Stud
7	WPW10144409 Whirlpool Refrigerator Freezer Bin
8	W11396033 Whirlpool Refrigerator Rocker Switch
9	WPW10191952 Whirlpool Refrigerator Screw
10	W11527119 Whirlpool Refrigerator Shelf Stud
11	WPW10318948 Whirlpool Wire Shelf
12	Shelf, Top Compartment
13	SHELF, WIRE
14	W11679940 Whirlpool Refrigerator Light Bulb Assembly
15	4387478 Whirlpool Refrigerator Light Socket
16	W10845585 Whirlpool Refrigerator Track
16	W10845583 Whirlpool Refrigerator Track
17	718257 Whirlpool Dishwasher Screw
18	W10142289 Whirlpool Air Conditioner Screw
