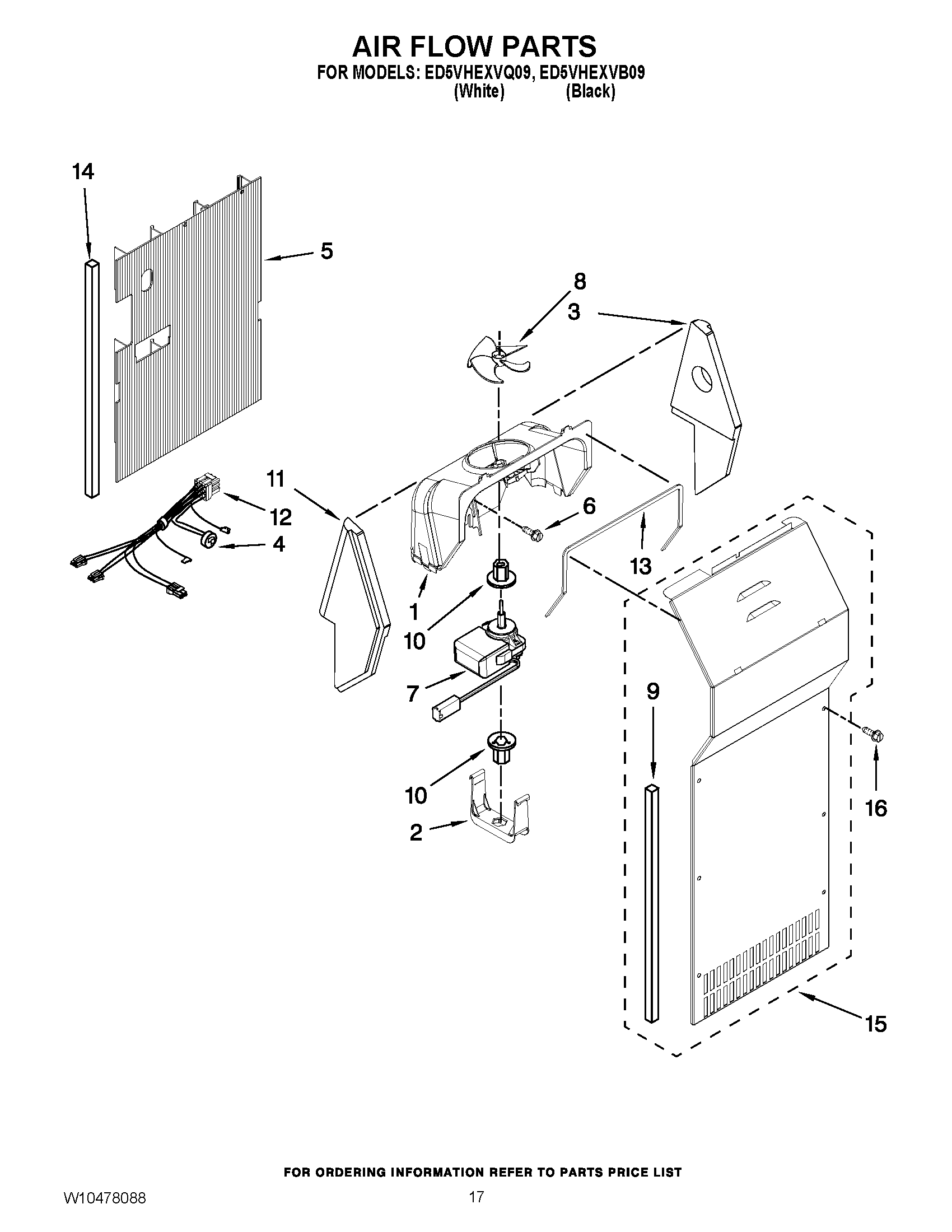

ED5VHEXVQ09 10 – AIR FLOW PARTS

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	4388358 Whirlpool Refrigerator Support Bracket
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	W10756902 Whirlpool Refrigerator Air Duct
6	WP489478 Whirlpool Refrigerator Screw
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
12	W11084324 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	4388500 Whirlpool Refrigerator Gasket
15	Cover, Evaporator
16	WP693995 Whirlpool Screw
