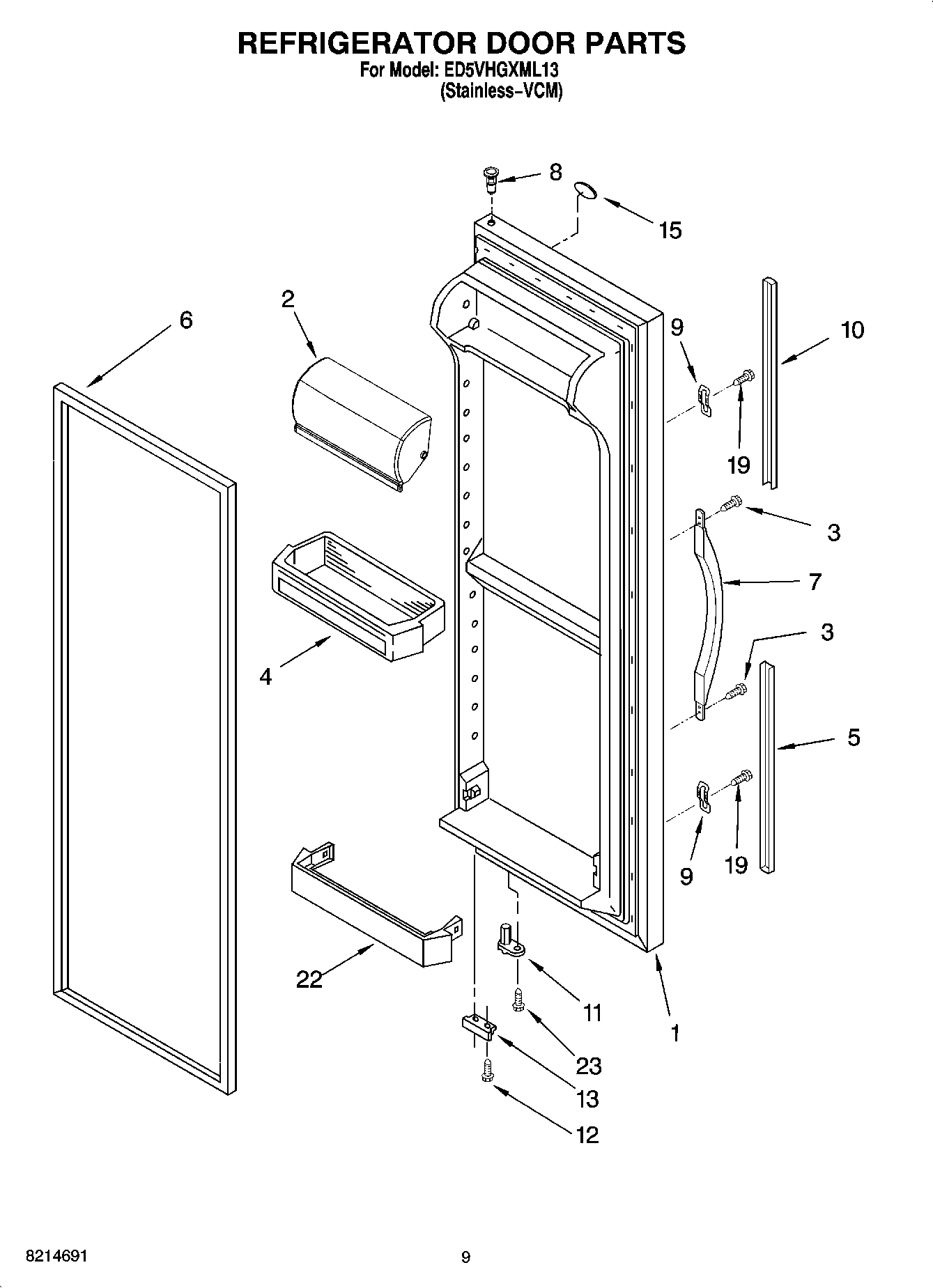

ED5VHGXML13 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Stainless-VCM)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2187172 Whirlpool Refrigerator Door Shelf Bin
5	WP2194969B Whirlpool Refrigerator Handle Trim
6	2159083 Whirlpool Gasket Door
7	WP2186649B Whirlpool Refrigerator Handle
8	WP2182181 Whirlpool Refrigerator Thimble
9	WP2195327 Whirlpool Refrigerator Clip
10	Extension, Top (Black)
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
15	WP2213265 Whirlpool Refrigerator Nameplate
19	WP3400852 Whirlpool Refrigerator Screw
22	WP2177962K Whirlpool Refrigerator Door Trim
23	WP3400012 Whirlpool Refrigerator Screw
