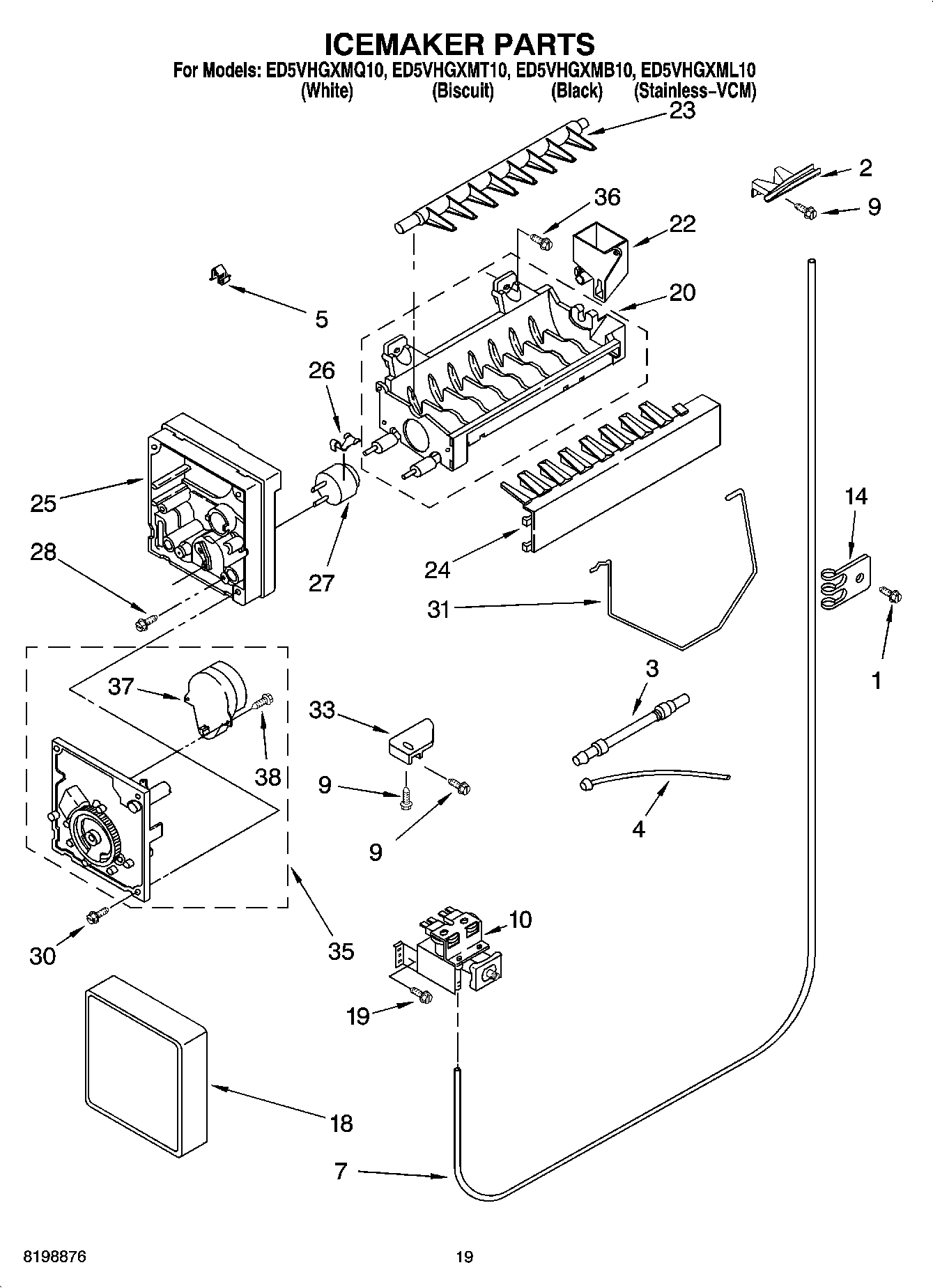

ED5VHGXMQ10 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

ED5VHGXMQ10 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

ED5VHGXMQ10 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 799833
Enamel, Black (1 Qt. Uncut)
212643 Whirlpool Refrigerator Permagum Sealer
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
WPL 876029
WPL ARI38862A7
Torx Key
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI38861A8
833938 Whirlpool Refrigerator Terminal
WPL ARI38860A7
WPL ARI38859A2
WPL ARI38858A2
WPW10312300 Whirlpool Refrigerator Ice Container
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
2W11505385 Whirlpool Refrigerator Chute
38201597 Whirlpool Inlet Water Fill Tube Kit Filter
4WPW10350006 Whirlpool Refrigerator Water Tube
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
9WP489478 Whirlpool Refrigerator Screw
10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
36WP488163 Whirlpool Refrigerator Screw
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
