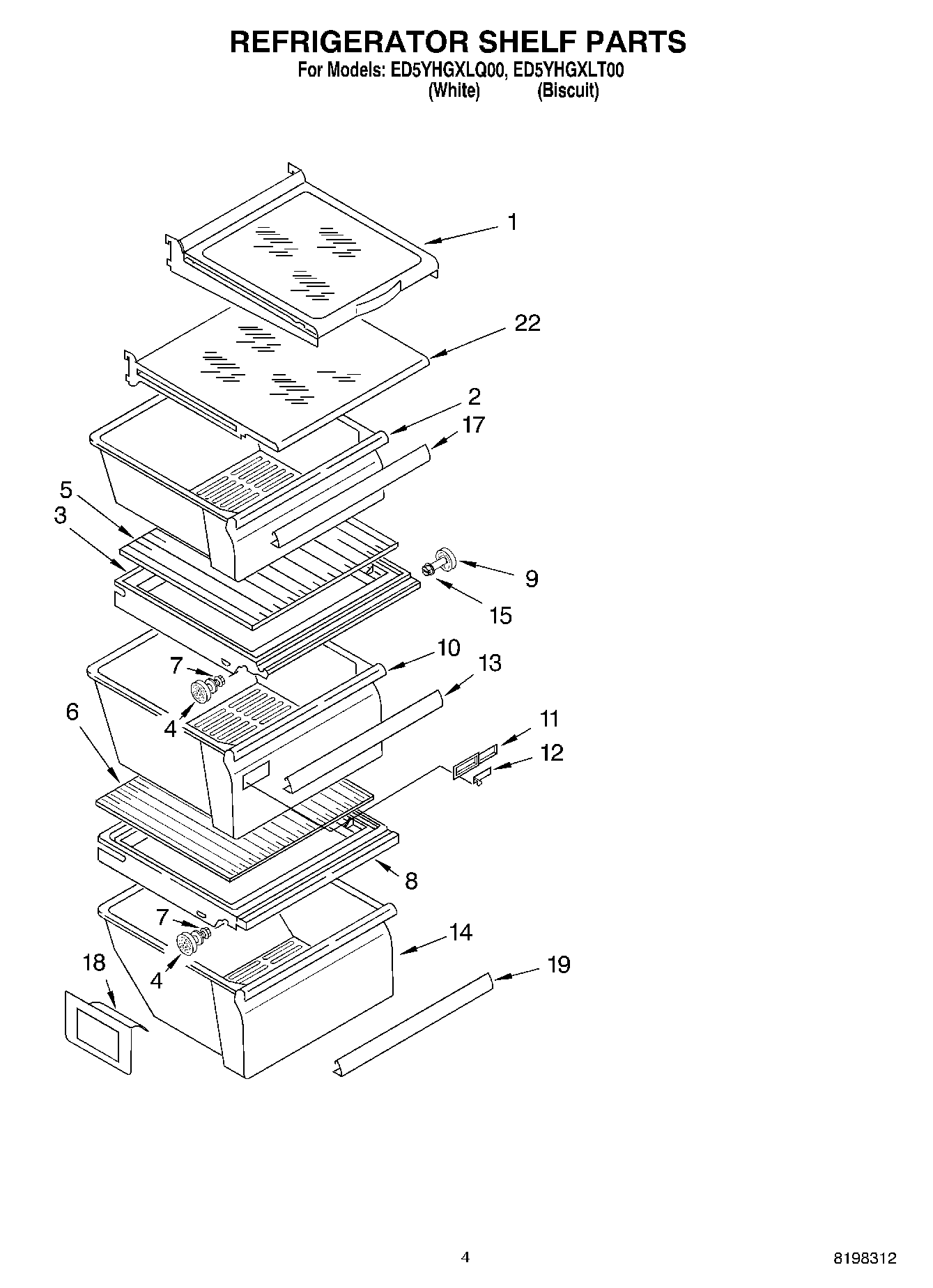

ED5YHGXLQ00 03 – REFRIGERATOR SHELF PARTS

ED5YHGXLQ00 03 – REFRIGERATOR SHELF PARTS

Written by

in

ED5YHGXLQ00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2W11497323 Whirlpool Snack Pan
3W10508993 Whirlpool Refrigerator Cover Pan
4W11223328 Whirlpool Refrigerator Shelf Stud
5W10864399 Whirlpool Glass Shelf
7WP3-24004-109 Whirlpool Refrigerator Screw
8Cover, Meat Pan
9WP2196483 Whirlpool Refrigerator Shelf Stud
10PAN-CRISPR
11WP2179343 Whirlpool Refrigerator Control Body
12WP2179342 Whirlpool Refrigerator Slide
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15WP3400806 Whirlpool Screw
17WP2179243 Whirlpool Refrigerator Pan Trim
182179350 Whirlpool Refrigerator Deflector
19WP2179234 Whirlpool Refrigerator Pan Trim
22Shelf, Snack Bin
