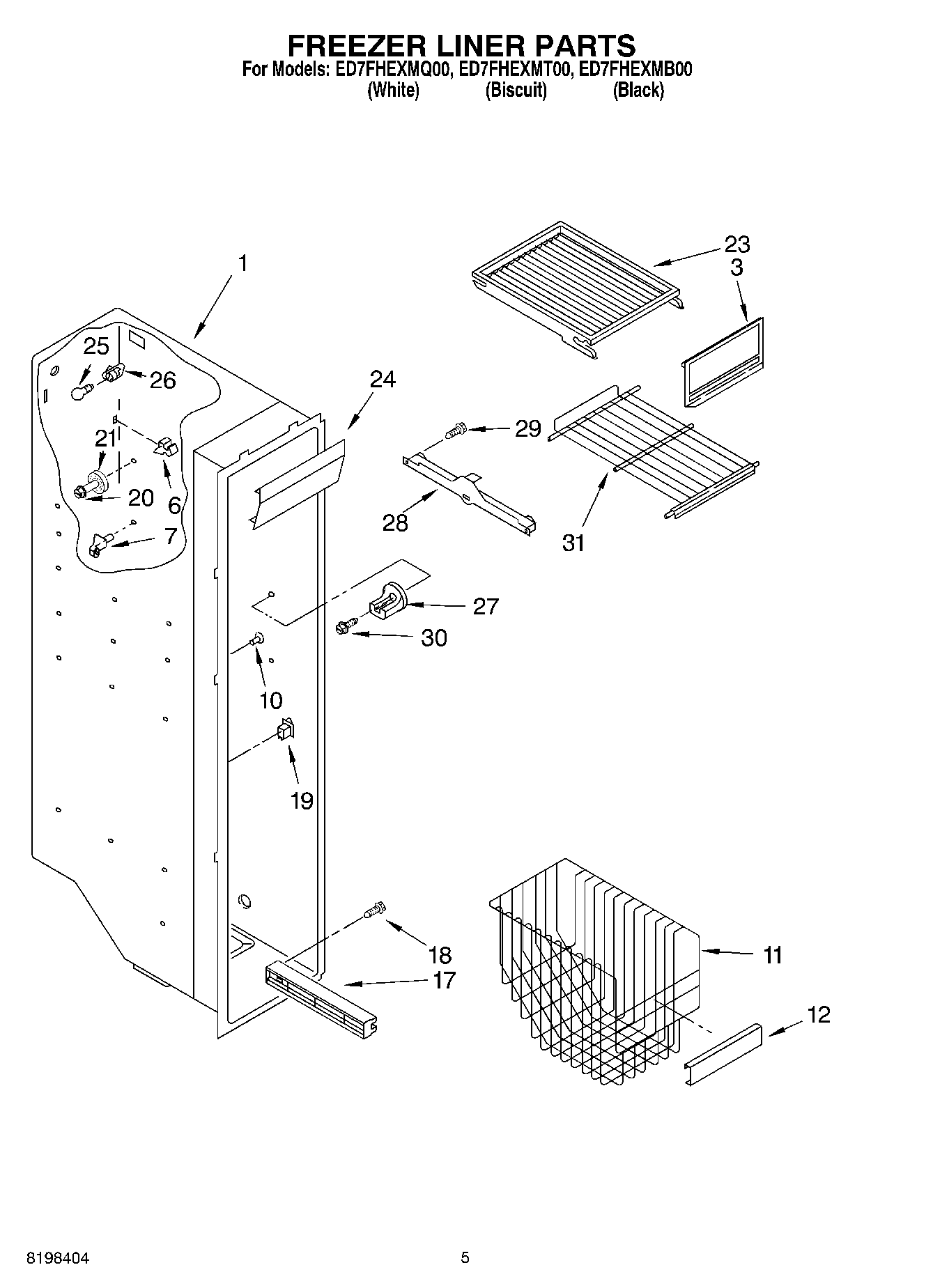

ED7FHEXMQ00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
3	Door, Ice Compartment
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
10	Grommet
11	Basket, Sloped
12	Trim, Basket
17	Slide, Basket (Left Side (2))
17	Slide, Basket (Right Side (2))
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	WP3400806 Whirlpool Screw
21	WP2196483 Whirlpool Refrigerator Shelf Stud
23	Shelf, Top Compartment
24	2171705 Whirlpool Refrigerator Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
27	Stud, Rear
28	W10845585 Whirlpool Refrigerator Track
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
30	W10142289 Whirlpool Air Conditioner Screw
31	Shelf (2)
31	WP2174267 Whirlpool Refrigerator Wire Shelf
