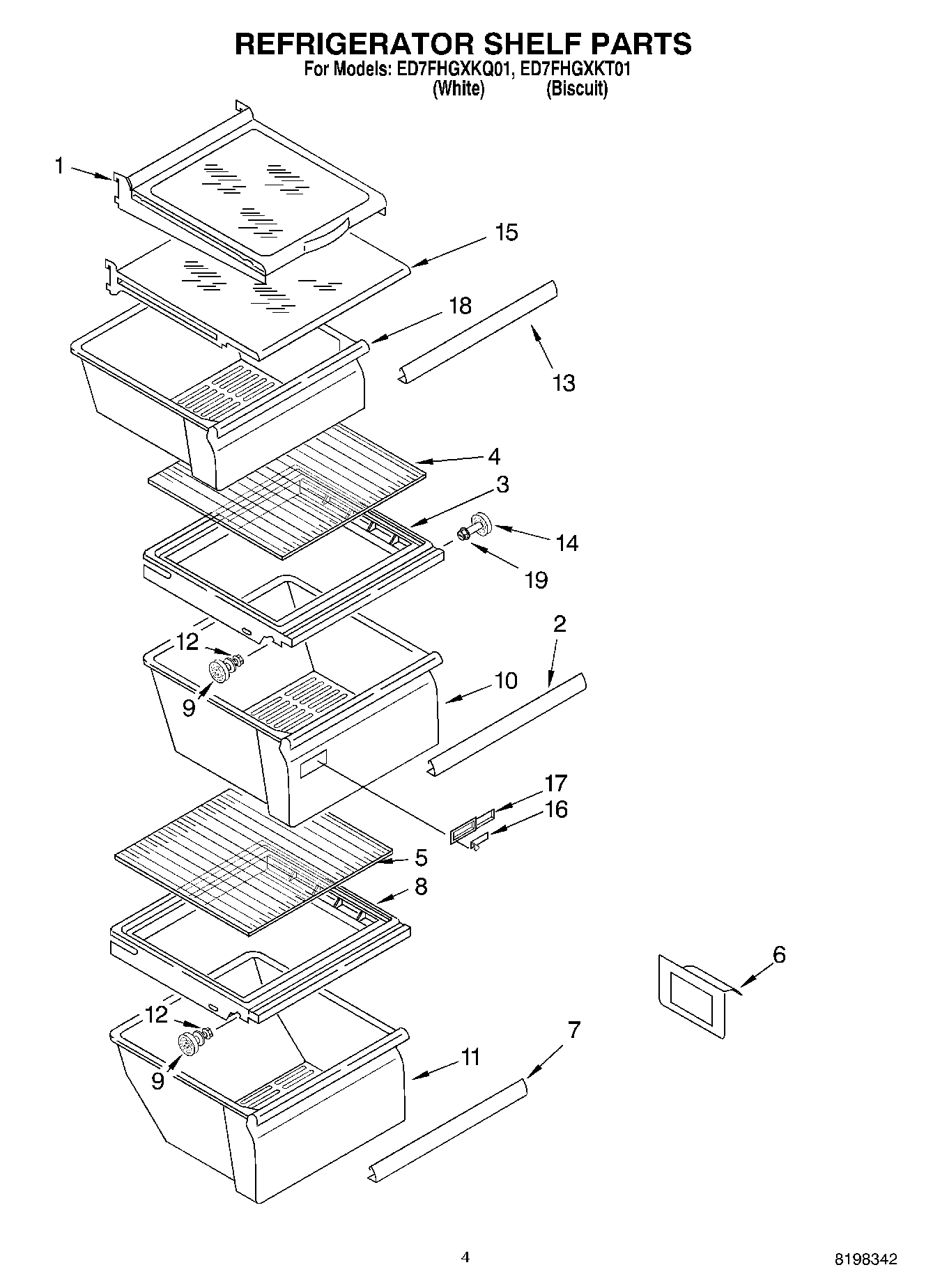

ED7FHGXKQ01 03 – REFRIGERATOR SHELF PARTS

ED7FHGXKQ01 03 – REFRIGERATOR SHELF PARTS

Written by

in

ED7FHGXKQ01 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
3W10508993 Whirlpool Refrigerator Cover Pan
4W10864399 Whirlpool Glass Shelf
62179350 Whirlpool Refrigerator Deflector
7WP2179234 Whirlpool Refrigerator Pan Trim
8Cover, Meat Pan
9W11223328 Whirlpool Refrigerator Shelf Stud
10PAN-CRISPR
11WP2188664 Whirlpool Dishwasher Meat Crisper Pan
12WP3-24004-109 Whirlpool Refrigerator Screw
13WP2179243 Whirlpool Refrigerator Pan Trim
14WP2196483 Whirlpool Refrigerator Shelf Stud
15Shelf, Snack Bin
16WP2179342 Whirlpool Refrigerator Slide
17WP2179343 Whirlpool Refrigerator Control Body
18W11497323 Whirlpool Snack Pan
19WP3400806 Whirlpool Screw
