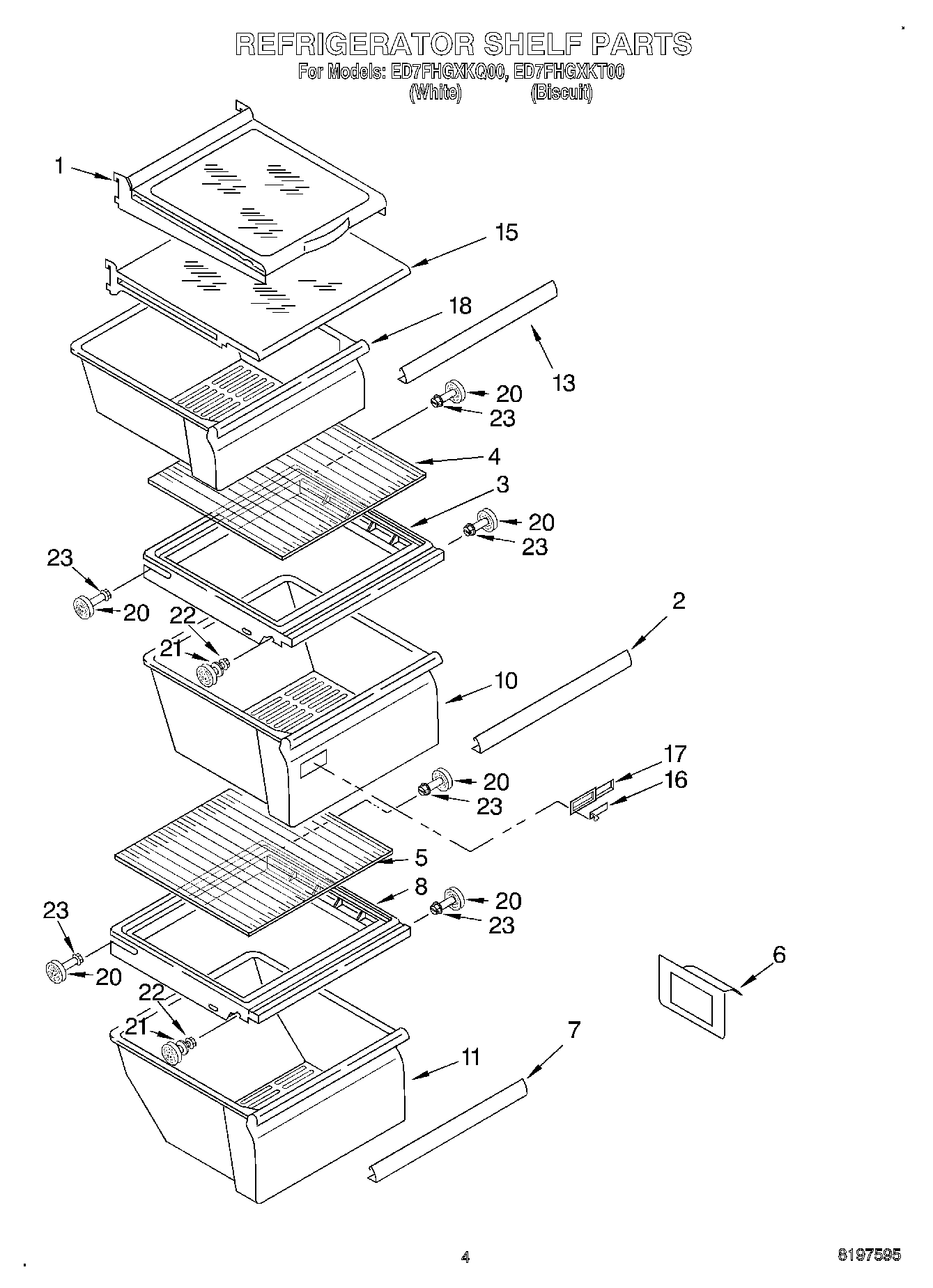

ED7FHGXKT00 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
3	W10508993 Whirlpool Refrigerator Cover Pan
4	W10864399 Whirlpool Glass Shelf
6	2179350 Whirlpool Refrigerator Deflector
7	WP2179234 Whirlpool Refrigerator Pan Trim
8	Cover, Meat Pan
10	PAN-CRISPR
11	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
13	WP2179243 Whirlpool Refrigerator Pan Trim
15	Shelf, Snack Bin
16	WP2179342 Whirlpool Refrigerator Slide
17	WP2179343 Whirlpool Refrigerator Control Body
18	W11497323 Whirlpool Snack Pan
20	WP2196483 Whirlpool Refrigerator Shelf Stud
21	W11223328 Whirlpool Refrigerator Shelf Stud
22	WP3-24004-109 Whirlpool Refrigerator Screw
23	WP3400806 Whirlpool Screw
