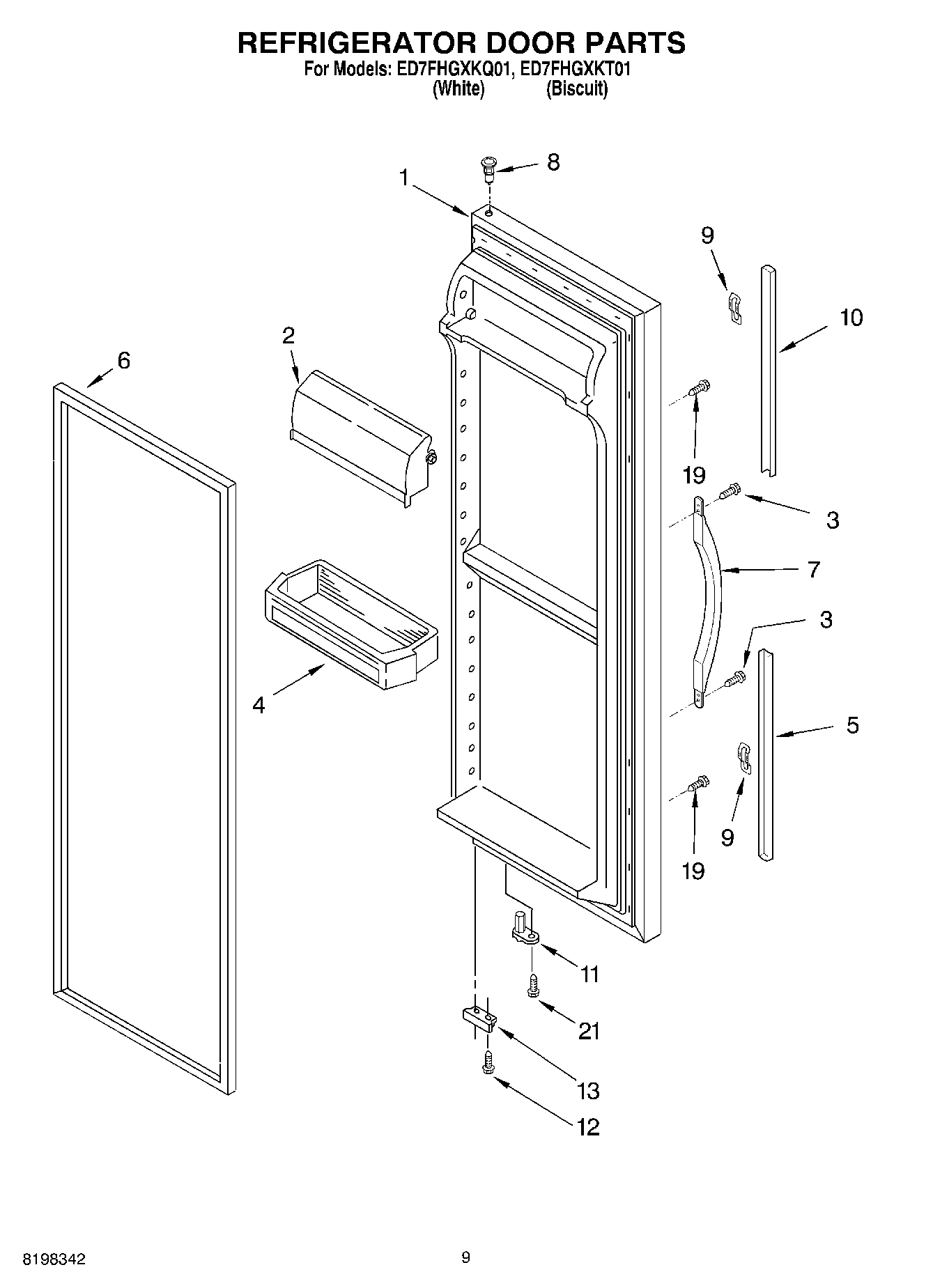

ED7FHGXKT01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Biscuit)
1	Refrigerator Door (Includes Item 6) (White)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2203872 Whirlpool Refrigerator Cantilever Bin
5	Extension, Bottom (White)
5	Extension, Bottom (Biscuit)
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center (Biscuit)
7	Handle, Center (White)
8	WP2182181 Whirlpool Refrigerator Thimble
9	WP2195327 Whirlpool Refrigerator Clip
10	WP2194973W Whirlpool Door Trim
10	Extension, Top (Biscuit)
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop
19	WP3400852 Whirlpool Refrigerator Screw
21	WP3400012 Whirlpool Refrigerator Screw
