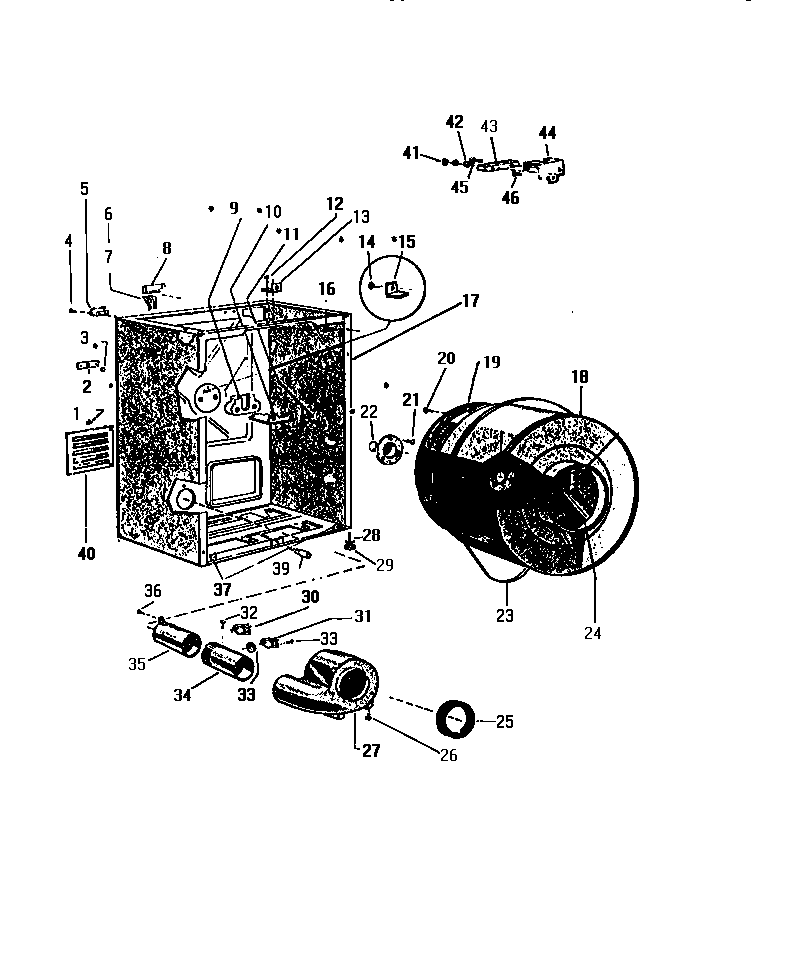

EDD15A2D5 04 – CABINET, DRUM

Products

Position	Product
*89364	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2	SPEED NUT STRIP
3	BALL
5	WCI Q155561
6	WCI Q435098
7	WCI Q133283
8	WCI Q133281
9	BEARING
10	BRACKET
11	SCREW
13	WCI Q600105
15	BRACKET
16	WCI Q505564
17	BODY, ALMD
18	SPINNER, BASKET
19	WCI Q165773
20	SCREW (3)
21	SCREW
22	SHAFT
23	WCI Q63807
24B	WCI Q501592
24A	WCI Q615894
24	WCI Q615893
25	WCI Q19462
26	SCREW (4)
27	WCI Q171281
28	WCI Q198170
29	WCI Q16971
30	THERMOSTAT, LOW HEAT
31	THERMOSTAT, REGULAR HEAT
32	SCREW
33	WCI Q606131
34	WCI Q603012
35	WCI Q182901
37	WCI Q500786
38	SCREW (4)
39	WCI Q504281
40	WCI Q94811
41	WCI Q401002
42	WCI Q440082
43	TERMINAL BLOCK
44	WCI Q133288
45	WCI Q403005
46	WCI Q409702
