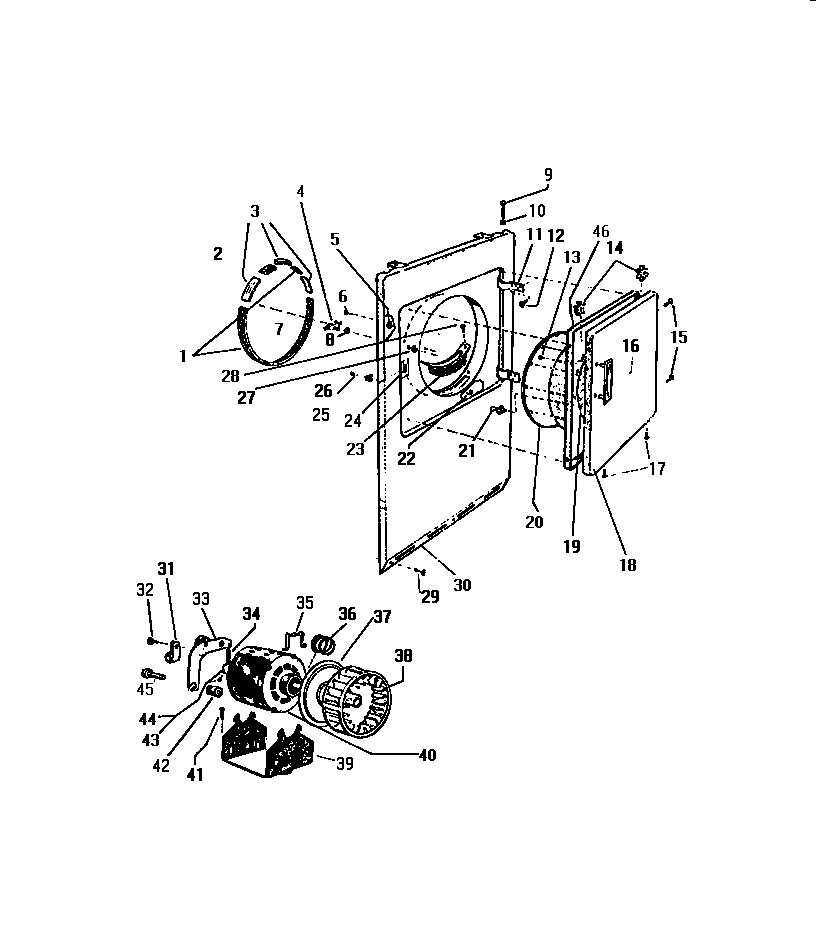

EDD15A2H5 03 – FRONT PANEL, DOOR & MOTOR

Products

Position	Product
1	WCI Q142888
2	WCI Q15141
3	GUIDE KIT
4	WCI Q622422
6	WCI Q505564
7	WCI Q15142
8	WCI Q409004
9	WCI Q55021
10	WCI Q500155
11	WCI Q94651
12	WCI Q500433
13	WCI Q503952
14	WCI Q631591
16	WCI Q151326
17	WCI Q411004
18	WCI Q125674
19	SHIELD
20	WCI Q167703
21	WCI Q504552
22	WCI Q500255
23	WCI Q168541
24	WCI Q504551
25	WCI 1466314
26	WCI Q502482
27	WCI Q501450
28	WCI Q405802
29	WCI Q501687
30	WCI Q632693
31	CLAMP
32	WCI Q414002
33	IDLER PULLEY AND BRACKET
34	SPRING
35	WCI Q62206
36	WCI Q94715
37	WCI Q94948
38	WCI Q615901
39	WCI Q94874
40C	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
40E	START SWITCH FOR Q616401 GE
40	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
40D	START SWITCH FOR Q615921 WW
40B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
40A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
40F	START SWITCH FOR Q616391 EMER.
41	SCREW
42	WCI Q600179
43	SCREW
44	PULLEY (SEE NOTE 1)
45	WCI Q433401
46	WCI Q125734
