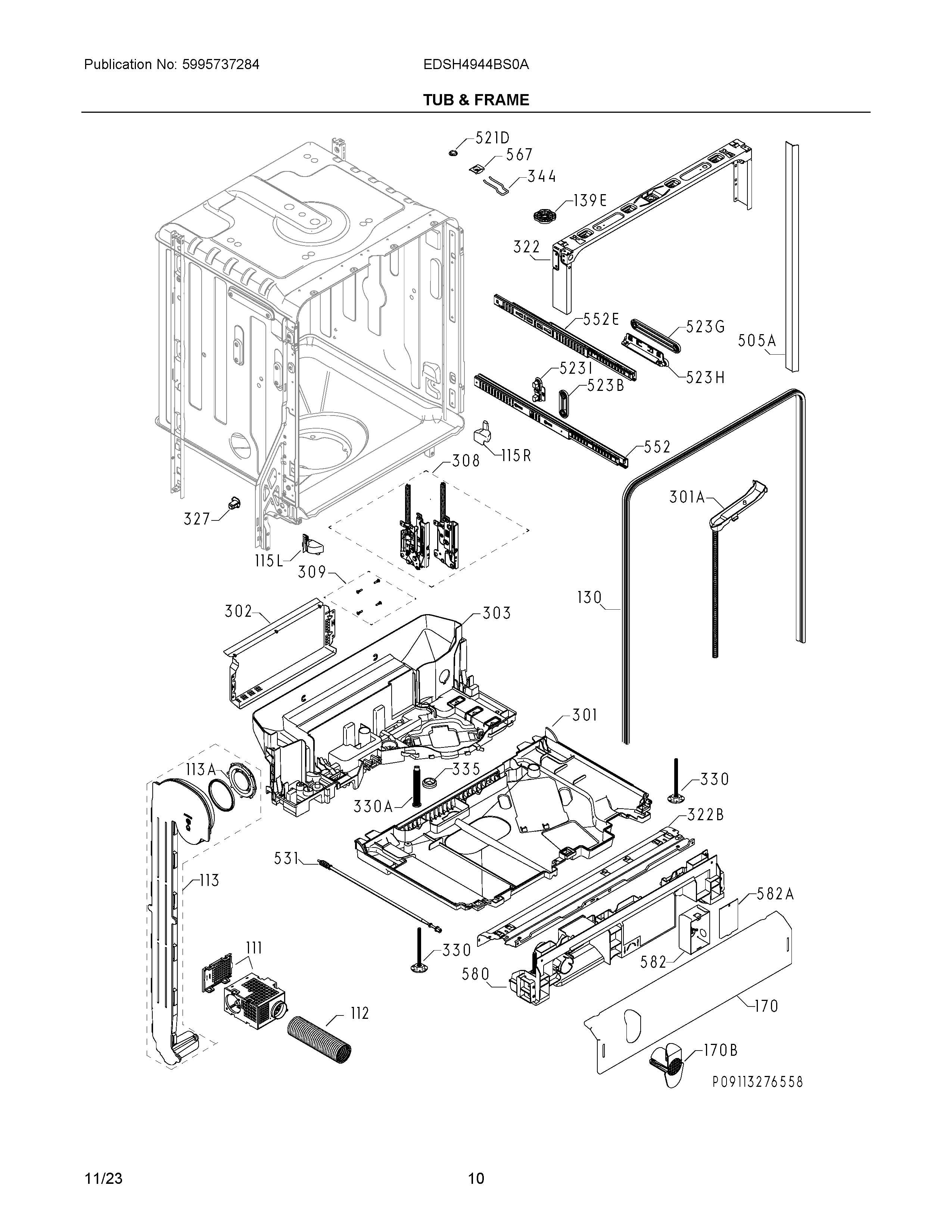

EDSH4944BS0A 06 – TUB & FRAME

EDSH4944BS0A 06 – TUB & FRAME

Written by

in

EDSH4944BS0A 06 – TUB & FRAME

Products

PositionProduct
NI405530687 Frigidaire Screw
1115304509259 Frigidaire Dishwasher Housing Assembly
112A05660505 Frigidaire Dishwasher Hose
113AA06525801 Frigidaire Dishwasher Outlet
113405537600 Frigidaire Dishwasher Air Duct
115LA11462601 Frigidaire Dishwasher Bridge
115RA11462602 Frigidaire Dishwasher Bridge
130117158011 Frigidaire Dishwasher Door Seal Gasket
139E807240301 Frigidaire Dishwasher Nut
170405537597 Frigidaire Dishwasher Insulation Kit
170BA05936001 Frigidaire Dishwasher Outlet
301807104203 Frigidaire Dishwasher Tray
301AOVERFLOW HOSE KIT
302A00075002 Frigidaire Dishwasher Cover
303A01868606 Frigidaire Dishwasher Base Assembly
308405539886 Frigidaire Dishwasher Assembly Hinge
322BCROSS PIECE, FRONT, BOTTOM
322A00166805 Frigidaire Dishwasher Crossbar
327117427700 Frigidaire Dishwasher Clip
330152661702 Frigidaire Dishwasher Foot
330A117363200 Frigidaire Dishwasher Foot
335152714200 Frigidaire Dishwasher COG
344152234405 Frigidaire Dishwasher Latch
505A808470401 Frigidaire Dishwasher Trim
521D152657610 Frigidaire PLUG
523GA21199802 Frigidaire Holder
523B152122010 Frigidaire Dishwasher Holder
523ISUPPORT, RAIL BASKET
523HSUPPORT, RAIL BASKET, TOP
531A00021003 Frigidaire Dishwasher Screw
552RAIL, BASKET, L=499MM, UPPER
552ERAIL, CUTLERY TRAY, L=461.5MM
567152323603 Frigidaire Dishwasher Bracket
580A04472907 Frigidaire Cover
582AA03337103 Frigidaire Dishwasher Cover Assembly
582A03987801 Frigidaire Dishwasher Box
