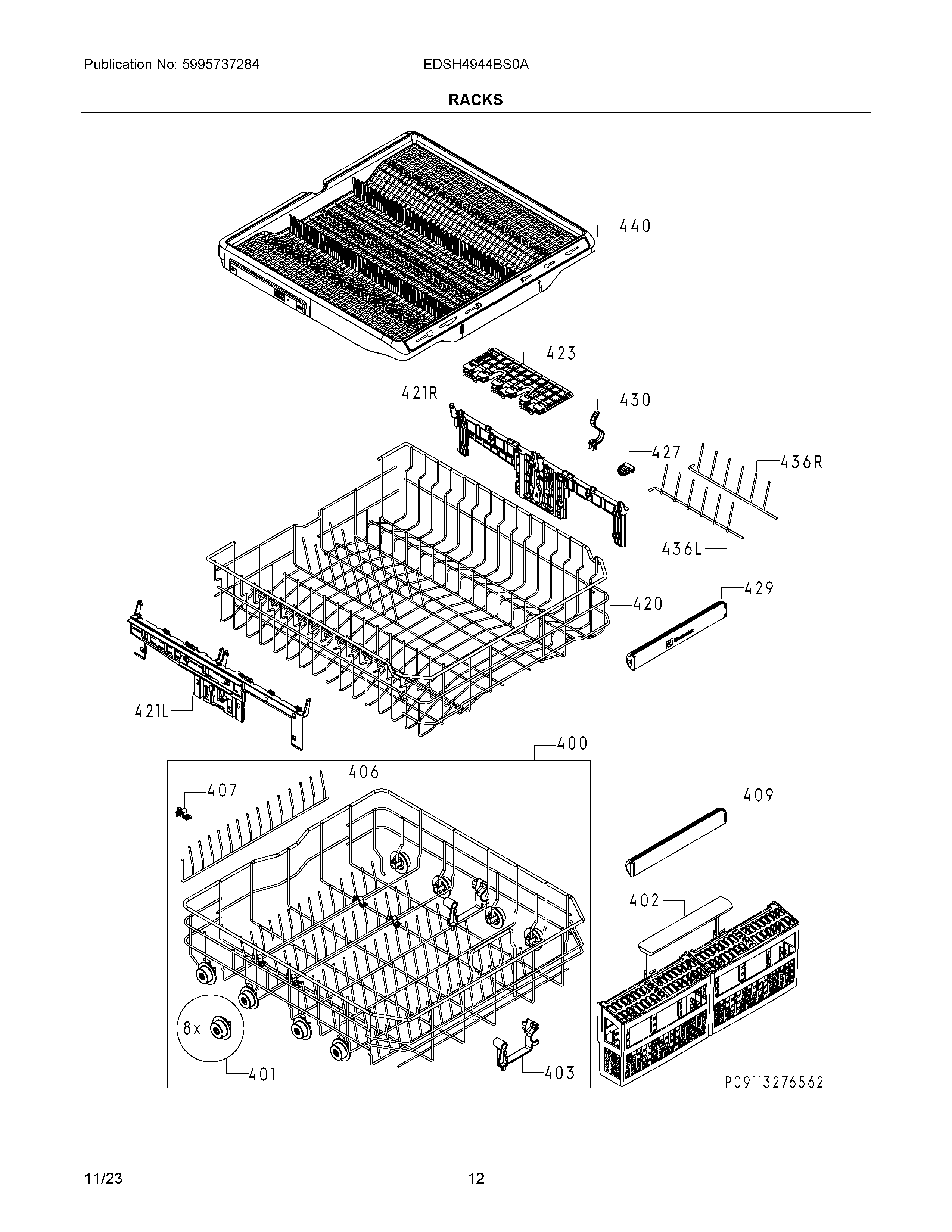

EDSH4944BS0A 07 – RACKS

EDSH4944BS0A 07 – RACKS

Written by

in

EDSH4944BS0A 07 – RACKS

Products

PositionProduct
400A06629603 Frigidaire Dishwasher Rack Assembly
401405507213 Frigidaire Dishwasher Rack Roller
402CUTLERY BASKET, ASSEMBLY, GREY
403CLIP, CUTLERY BASKET
406A06542001 Frigidaire Dishwasher Partition Assembly
407807282902 Frigidaire Dishwasher Tine Clip
409HANDLE ASSEMBLY, BASKET, LOWER, FRONT & REAR
420A00239833 Frigidaire Dishwasher Rack Assembly
421LADJUSTER, UPPER BASKET, LH, QUICK LIFT
421RADJUSTER, UPPER BASKET, RH, QUICK LIFT
423808124102 Frigidaire Dishwasher Shelf
427A00141702 Frigidaire Dishwasher Fixing Clamp
429HANDLE ASSEMBLY, BASKET, UPPER, FRONT & REAR
430A00924504 Frigidaire Dishwasher Clip
436R807077101 Frigidaire Dishwasher Partition
436LA00237001 Frigidaire Dishwasher Partition
440TRAY, CUTLERY, GRAY
