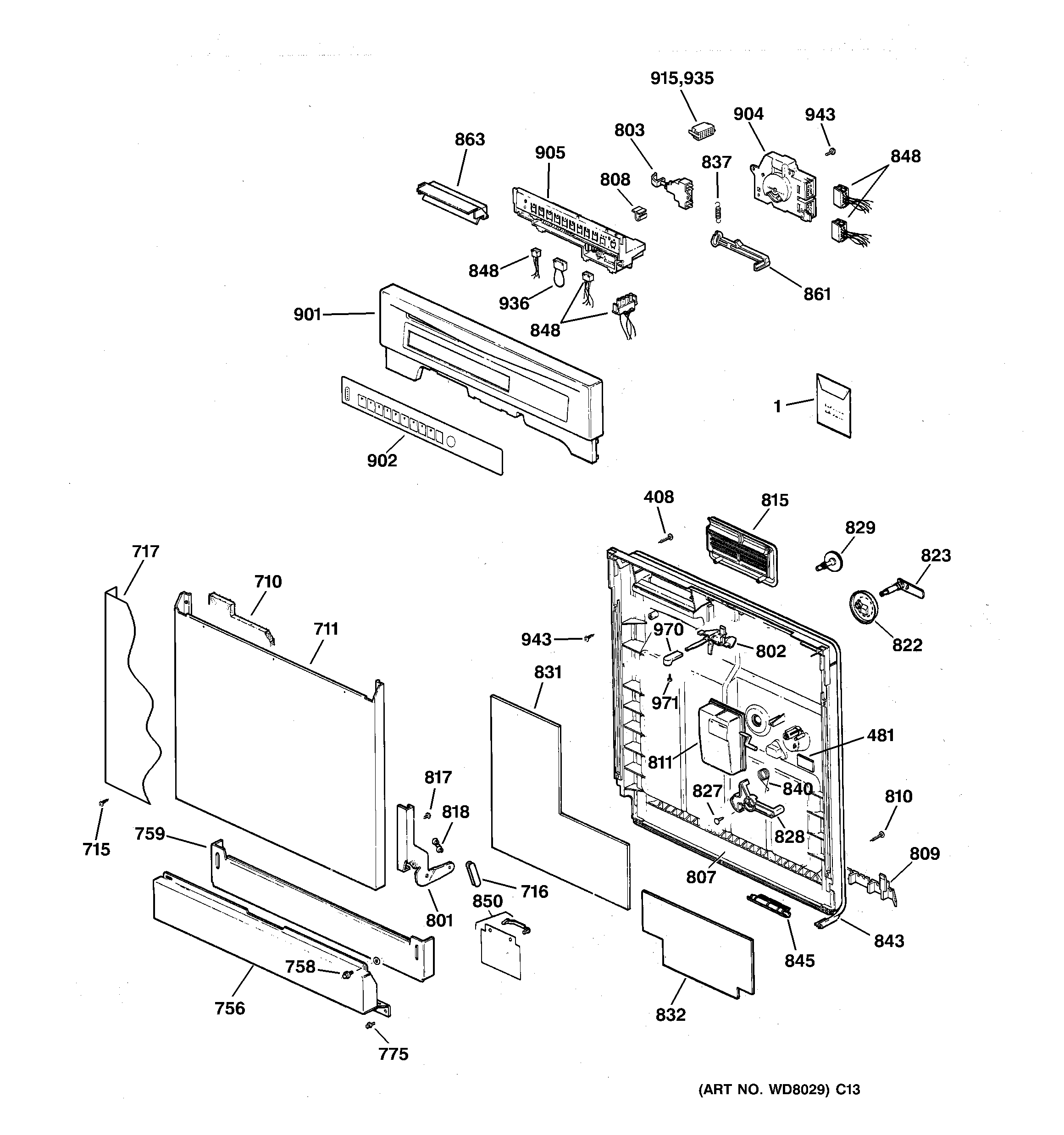

EDW2020F00BB ESCUTCHEON & DOOR ASSEMBLY

EDW2020F00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

EDW2020F00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
711WD31X10024 GE Dishwasher Black Front Panel
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10255 GE Dishwasher Long Front Cover
756WD27X10223 GE Dishwasher Access Panel Finished Black
759GEN WD27X10020
801GEN WD14X10008
801GEN WD14X10007
802WD13X10003 GE Dishwasher Latch Assembly
807WD31X10004 GE Door Inner Panel
808WR2X4039 GE Refrigerator Clamp
809GEN WD31X0312
815WD12X10026 GE Dishwasher Vent Assembly
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
848GEN WD21X10025
901GEN WD34X10036
902GEN WD34X10361
902GEN WD34X10359
902GEN WD34X10360
904GEN WD21X10018
905GEN WD21X10091
936HARNESS
943WZ5X219D GE Screw Package
971GEN WZ02X0045
