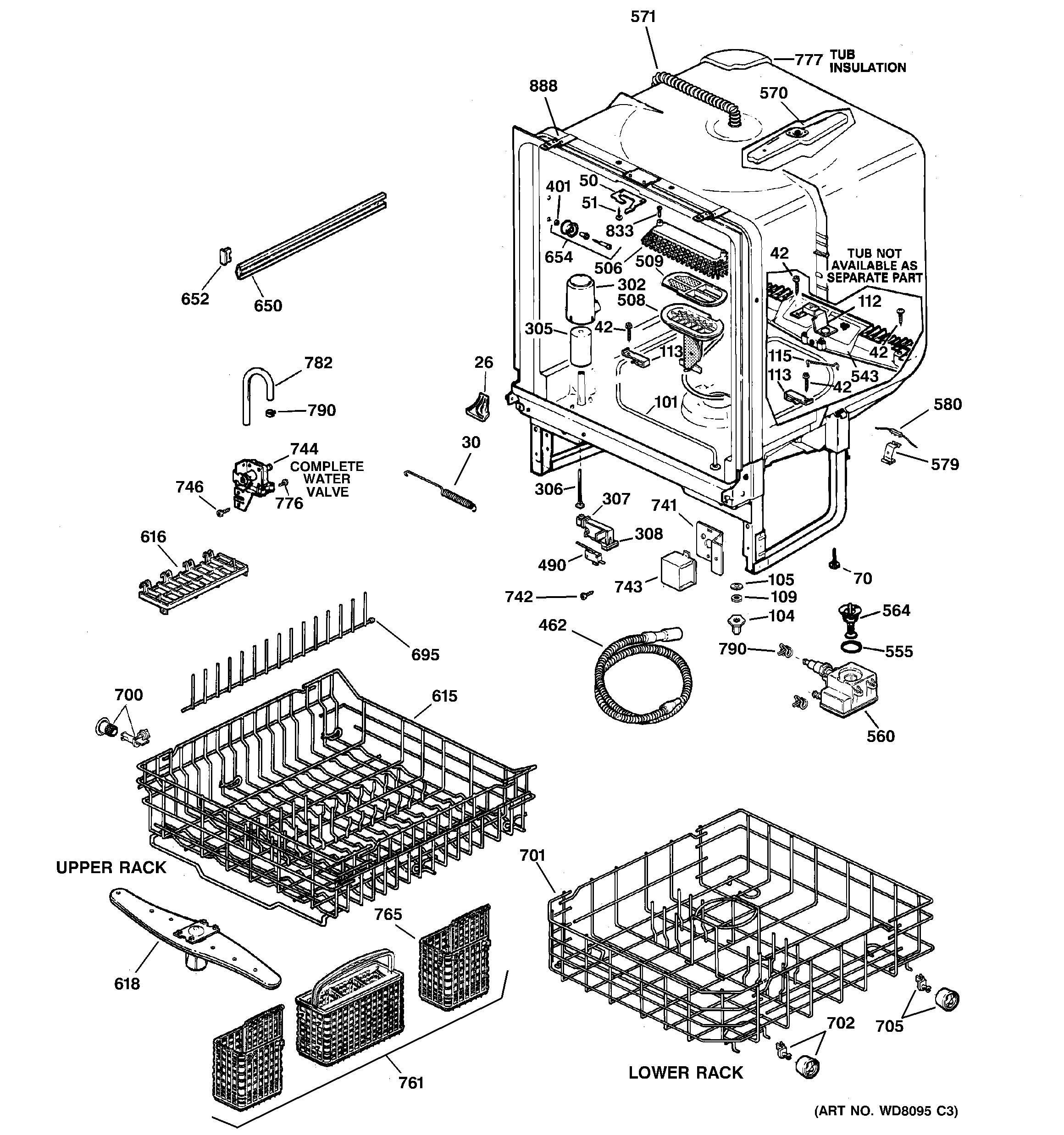

EDW3000G00BB BODY PARTS

EDW3000G00BB BODY PARTS

Written by

in

EDW3000G00BB BODY PARTS

Products

PositionProduct
26WD8X227 GE Dishwasher Right Hand Corner Seal
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
30GEN WD03X10016
30GEN WD03X10007
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
50WD13X67 GE Dishwasher Latch Keeper
51WD02X10066 GE Dishwasher Screw 10-24 x 1/2 TT TRR S
70WD2X320 GE Dishwasher Leveling Leg
101GEN WD05X10004
104WD01X10070 GE Dishwasher Nut
105GEN WD01X1168
109GEN WD08X0225
112GEN WD01X1462
113WD01X10086 GE Dishwasher Support Calrod Assembly
115GEN WD01X10066
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
401WD3X767 GE Dishwasher Washer
462WD24X10014 GE Dishwasher Drain Hose
490WD21X479 GE Dishwasher Switch
506GEN WD12X10040
508GEN WD22X10021
509GEN WD22X10020
543GEN WD22X0149
555GEN WD08X0219
560GEN WD22X10025
564WD24X10018 GE Assembly Piston and Nut
570WD28X10103 GE Spray Arm Assembly
571GEN WD24X0222
579GEN WD01X10021
580GEN WD21X10023
615GEN WD28X10049
616GEN WD28X0297
618WD22X10022 GE Dishwasher Spray Arm
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
695GEN WD28X10046
700WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
701WD28X31819 GE Dishwasher Lower Rack
702WD12X271 GE Dishwasher Roller
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
741GEN WD12X447
742WD2X5166 GE Dishwasher Screw
743WD12X448 GE Dishwasher Junction Box
744WD15X10003 GE Dishwasher Water Inlet Valve
746WD2X248 GE Dishwasher Screw
761WD28X10177 GE Dishwasher Silverware Basket
765GEN WD28X10051
776GEN WZ05X0222
777GEN WD01X10085
782WD18X202 GE Dishwasher Fill Hose
790WH1X2036 GE UNIX Clamp
790WD01X10065 GE Dishwasher Hose Clamp
833WD2X295 GE Refrigerator Screw
888WD35X200 GE Dishwasher Mounting Kit
