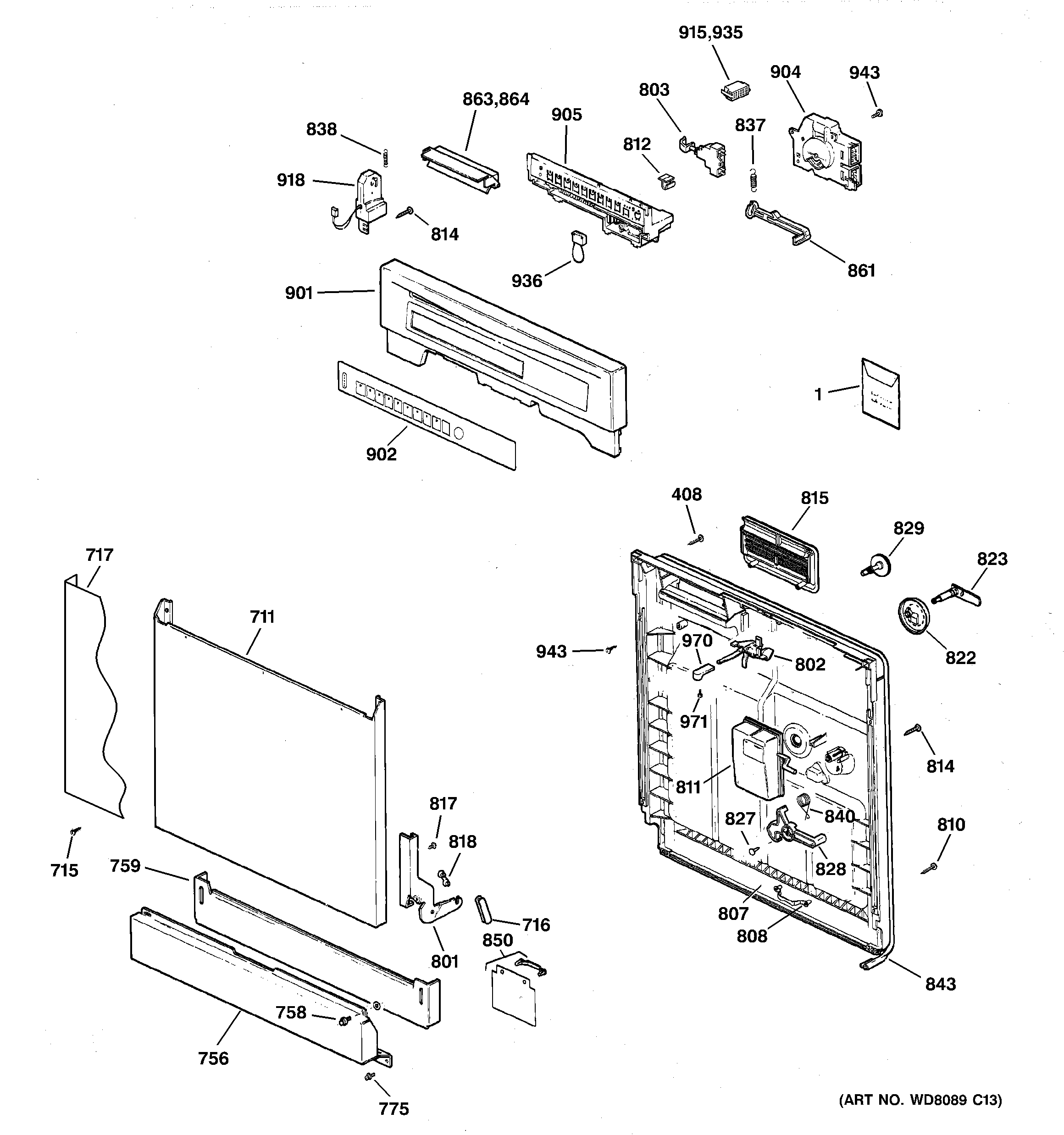

EDW3000G01BB ESCUTCHEON & DOOR ASSEMBLY

EDW3000G01BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

EDW3000G01BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5943
1GEN 31-30515
1GEN 31-30398
408GEN WD02X0296
711WD31X10024 GE Dishwasher Black Front Panel
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10255 GE Dishwasher Long Front Cover
756WD27X10223 GE Dishwasher Access Panel Finished Black
758GEN WD02X10056
759WD27X10068 GE Dishwasher Toe Panel Kit
775WD2X5166 GE Dishwasher Screw
801GEN WD14X10007
801GEN WD14X10008
802WD13X10003 GE Dishwasher Latch Assembly
803WD06X10002 GE Dishwasher Intermittent Switch
807WD31X10004 GE Door Inner Panel
808WR2X4039 GE Refrigerator Clamp
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
812GEN WD01X10110
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
838GEN WD03X0776
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
861GEN WD12X10019
863VENT ASM
864GEN WD12X10021
901GEN WD34X10808
901GEN WD34X10036
902GEN WD34X10807
904GEN WD21X10101
905GEN WD21X10116
915GEN WD01X1433
915GEN WD01X1432
918GEN WD21X10022
935GEN WD01X1434
936GEN WD21X10106
943WZ5X219D GE Screw Package
970WD9X351 GE Latch Knob
971GEN WZ02X0045
