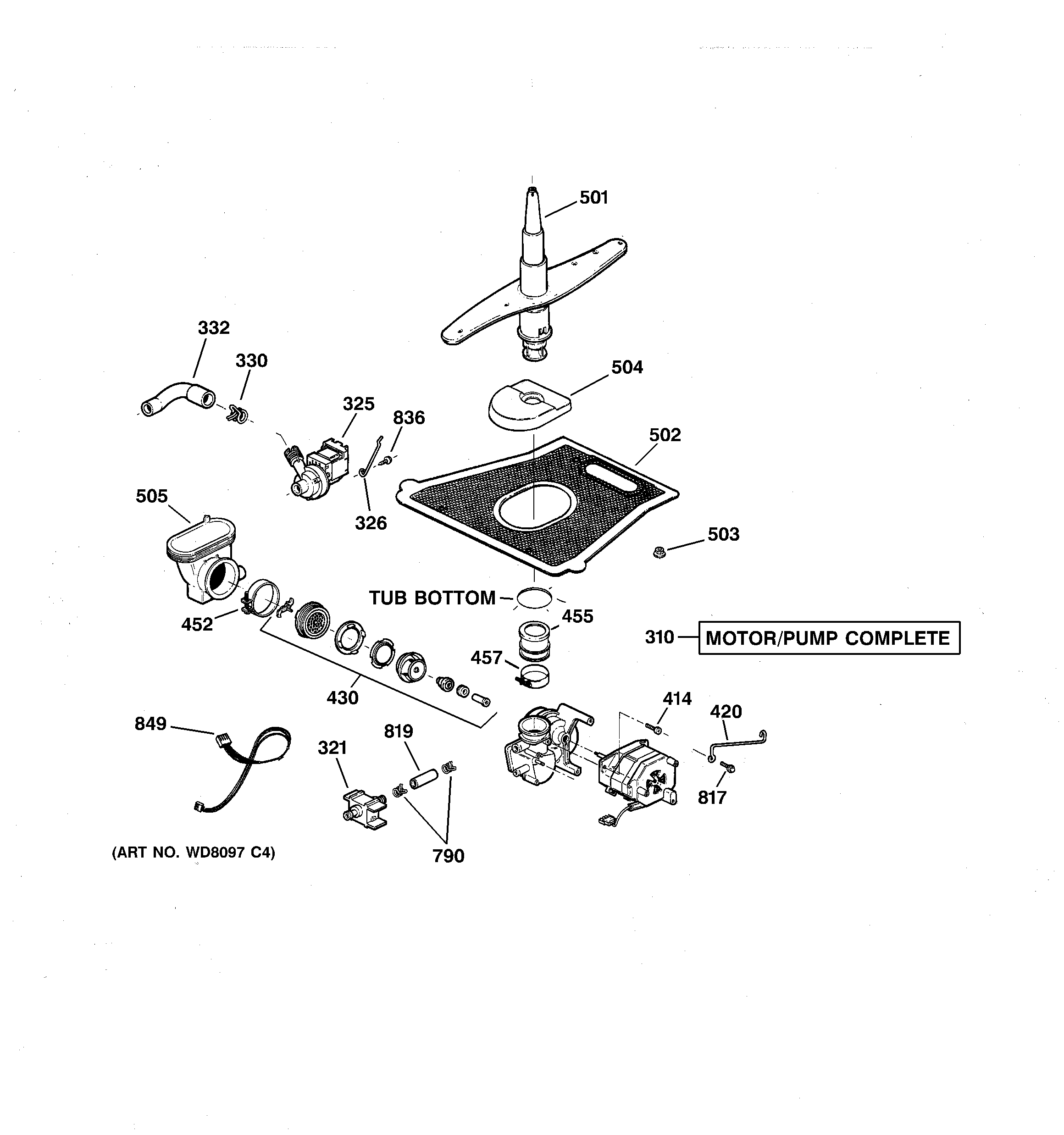

EDW3000G01BB MOTOR-PUMP MECHANISM

EDW3000G01BB MOTOR-PUMP MECHANISM

Written by

in

EDW3000G01BB MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10013 GE Dishwasher Motor and Pump Assembly
321GEN WD21X0769
325GEN WD19X10015
326GEN WD01X10024
330GEN WD01X1497
332GEN WD24X10006
414WD2X444 GE Dishwasher Mechanical Screw
420GEN WD01X1482
430KIT IMPELLER ASM
452WD1X1392 GE Dishwasher Sump Clamp
455WD18X214 GE Dishwasher Pump to Wash Arm Rubber Connector
457WD1X1376 GE Dishwasher Clamp
501WD22X10017 GE Dishwasher Lower Spray Arm
502GEN WD22X10019
503GEN WD01X10068
504GEN WD22X10023
505GEN WD18X0215
790WH1X2036 GE UNIX Clamp
817WD1X550 GE Dishwasher Screw
819GEN WD24X10016
836WH02X10002 GE Screw
849GEN WD21X10102
