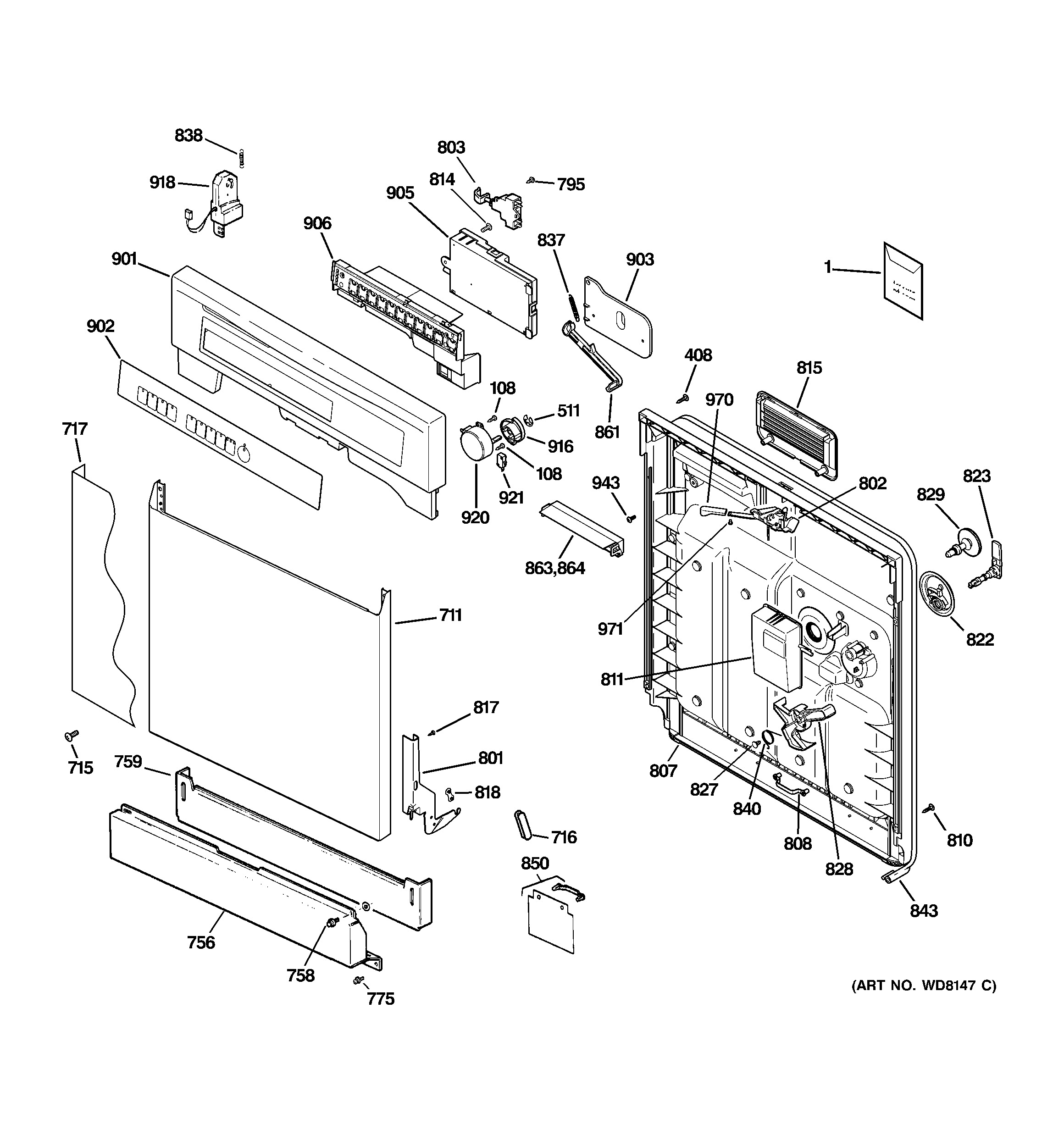

EDW3000G03WW ESCUTCHEON & DOOR ASSEMBLY

EDW3000G03WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

EDW3000G03WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30456
1GEN 31-30515
1GEN 49-5960
108WR1X1718 GE Screw
408GEN WD02X0296
511WD2X438 GE Dishwasher E-Ring
711WD31X10025 GE Dishwasher Front Panel
715WD2X433 GE Dishwasher Trim Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10254 GE Dishwasher Long Front Cover
756WD27X10225 GE Dishwasher Finished Access Panel
758WD02X10054 GE Dishwasher Screw 8-32
759WD27X10066 GE Dishwasher Toe Panel Kit
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775WD2X5166 GE Dishwasher Screw
795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
801GEN WD14X10008
801GEN WD14X10007
802WD13X10003 GE Dishwasher Latch Assembly
803WD06X10002 GE Dishwasher Intermittent Switch
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
838GEN WD03X0776
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
861WD12X436 GE Dishwasher Timer Lever
863VENT ASM
864GEN WD12X10021
901GEN WD34X10995
901GEN WD34X11047
902GEN WD34X11046
903WD12X10182 GE Dishwasher Cover Detergent TRIP MEC
905GEN WD21X10197
906GEN WD21X10198
916GEN WD16X0319
918GEN WD21X10206
920WD26X80 GE Dishwasher Motor
921WD21X767 GE Dishwasher Sensor Switch
943WZ5X219D GE Screw Package
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
