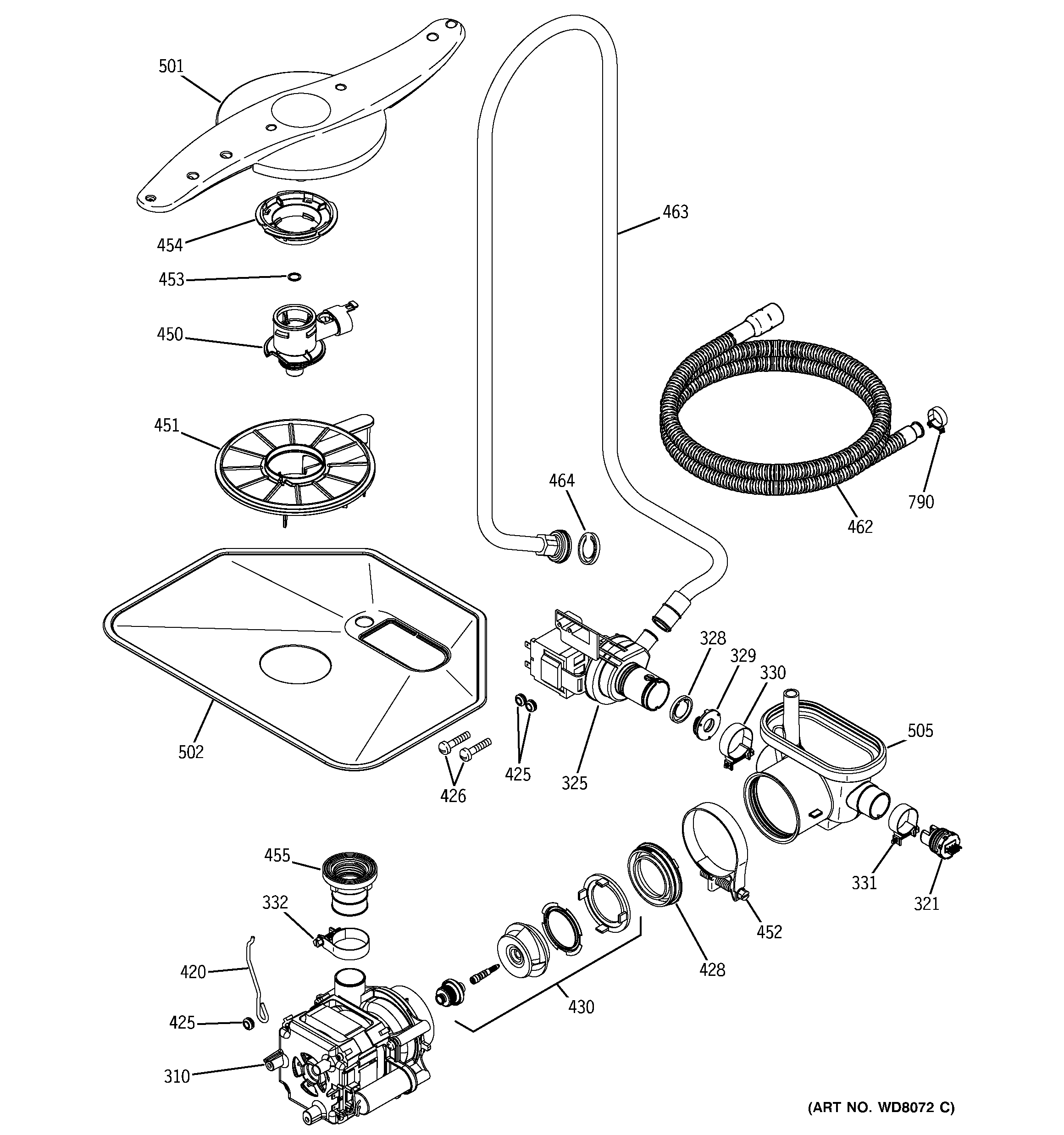

EDW4000G00CC MOTOR-PUMP MECHANISM

EDW4000G00CC MOTOR-PUMP MECHANISM

Written by

in

EDW4000G00CC MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10015 GE Dishwasher Mechanism Assembly
321GEN WD21X10118
325WD26X10016 GE Dishwasher Drain Pump
328GEN WD01X10175
329GEN WD01X10176
330WD01X10103 GE Dishwasher Clamp
331WD01X10104 GE Dishwasher Hose Clamp
332WD01X10105 GE Dishwasher Clamp
420GEN WD01X10093
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X10093 GE Dishwasher Screw 10-18 X 5/8
428WD12X10060 GE Dishwasher Suction Ring
430KIT IMPELLER ASM
450GEN WD18X10009
451WD12X10109 GE Dishwasher Fine Filter Assembly
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD01X10107
454WD12X10061 GE Arm Retainer Nut
455WD18X10010 GE Dishwasher Pump Connector Assembly
462WD24X10014 GE Dishwasher Drain Hose
463GEN WD24X10020
464GEN WD01X10177
501ARM SPRAY LOW ASM
502GEN WD22X10029
505WD18X10008 GE Dishwasher Sump Inlet
790WH1X2036 GE UNIX Clamp
790WD01X10065 GE Dishwasher Hose Clamp
