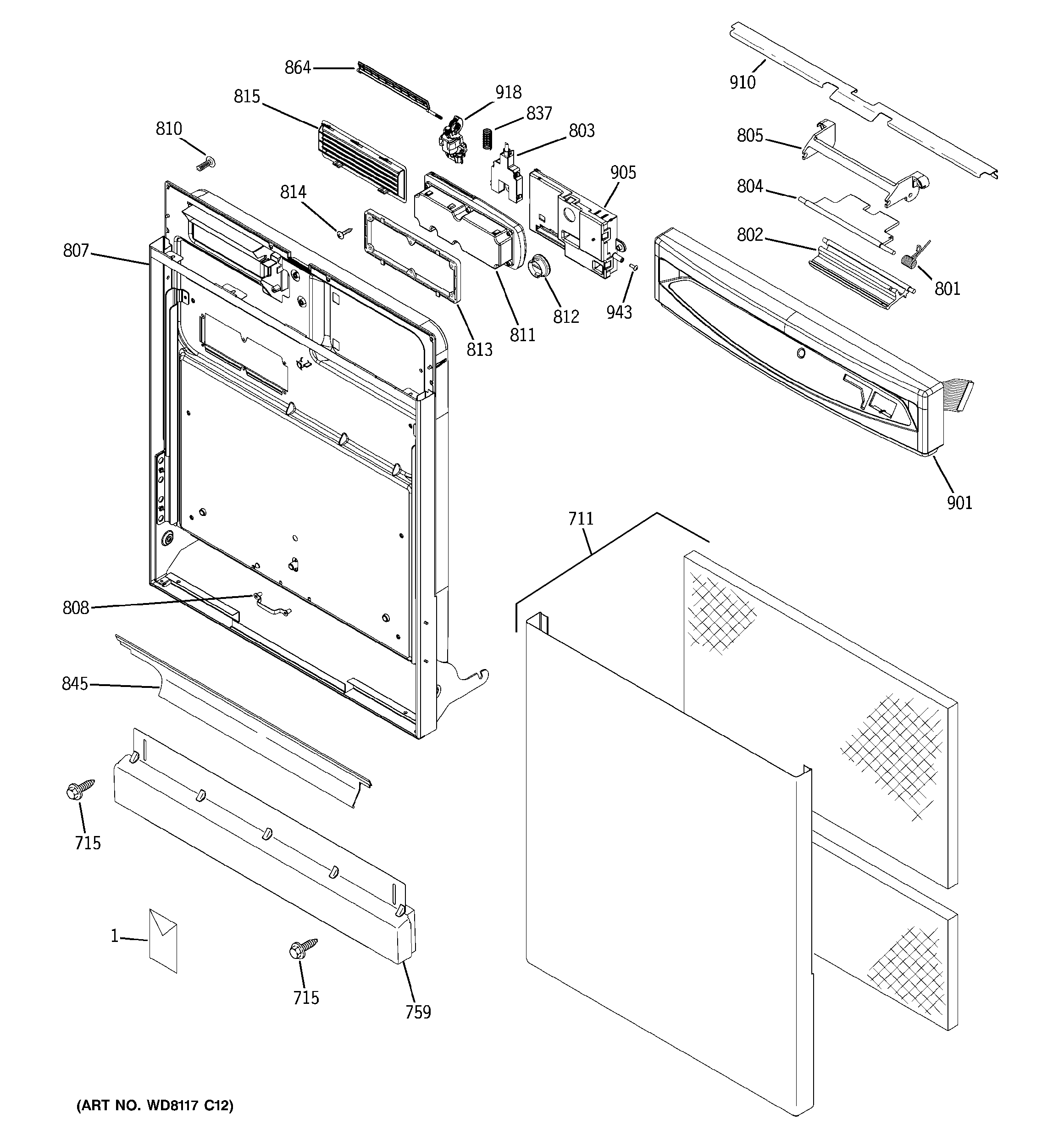

EDW4000G10CC ESCUTCHEON & DOOR ASSEMBLY

EDW4000G10CC ESCUTCHEON & DOOR ASSEMBLY

Written by

in

EDW4000G10CC ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30584
1GEN 31-30468
1GEN 49-5981
711PANEL FRONT ASM
715GEN WD02X10087
759GEN WD27X10088
801WR02X10585 SPRING RECES
802GEN WD13X10011
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10086
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10045
837WD03X10026 GE Dishwasher Spring Plunger
845WD08X10075 GE Dishwasher Bottom Door Gasket Seal
864GEN WD12X10068
901GEN WD34X10954
905GEN WD21X10220
910GEN WD34X10871
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
