EDW4060G02SS BODY PARTS

EDW4060G02SS BODY PARTS

Written by

in

EDW4060G02SS BODY PARTS

Products

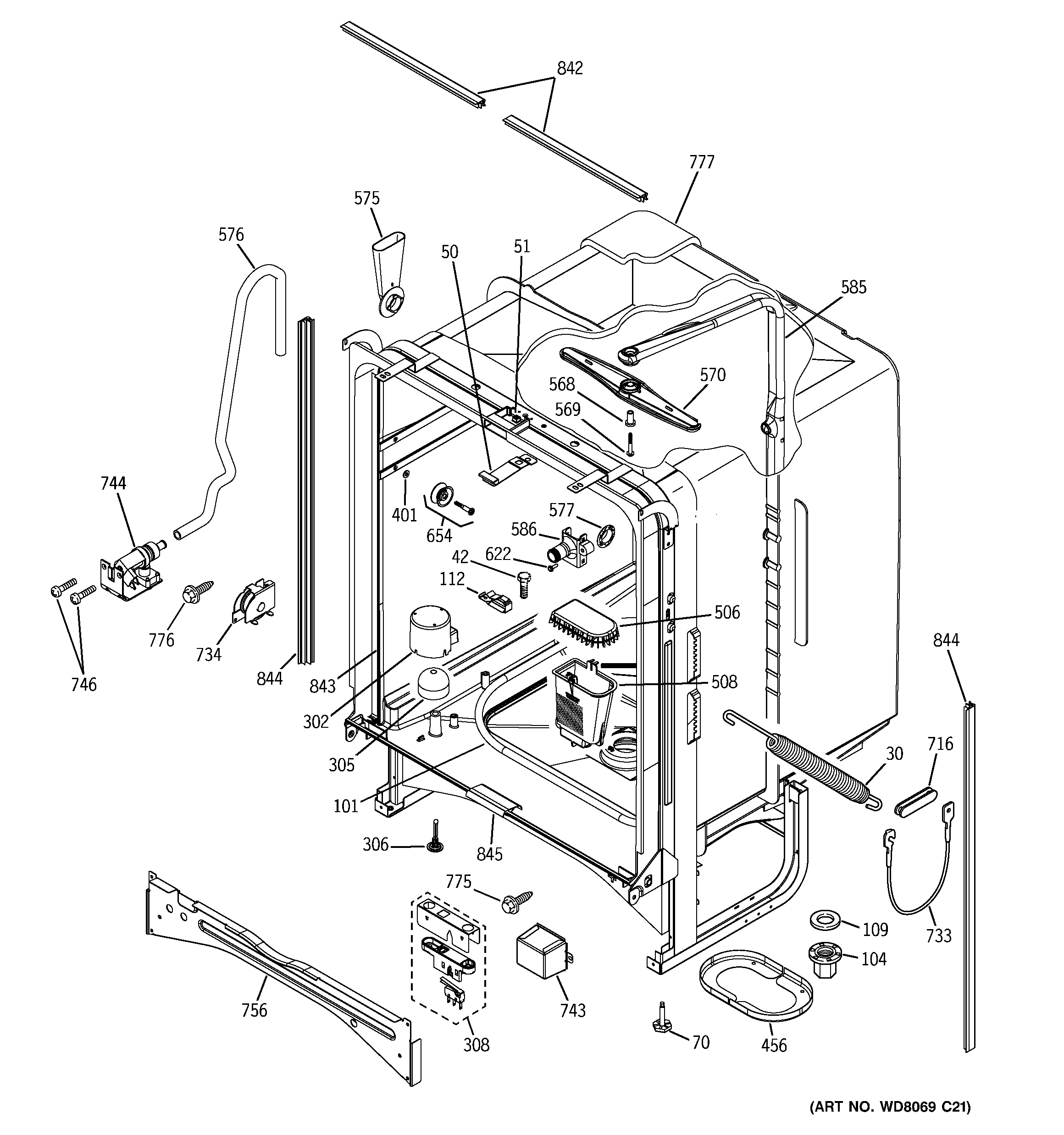

PositionProduct
30GEN WD03X10012
42SCREW #8-3/4 L HX HD SS
50GEN WD13X10019
51WD02X10066 GE Dishwasher Screw 10-24 x 1/2 TT TRR S
70WD2X320 GE Dishwasher Leveling Leg
101GEN WD05X10005
104GEN WD01X10097
109GEN WD01X10094
112GEN WD01X10098
302WD12X10051 GE Dishwasher Float Dome C02
305WD12X10047 GE Dishwasher Float
306WD12X10048 GE Dishwasher Float Stem Assembly
308GEN WD21X10168
401WD3X767 GE Dishwasher Washer
456GEN WD01X10106
506WD22X10077 GE Dishwasher Sump and Cover Filter Assembly
568WD01X10410 GE Dishwasher Spray Arm Bearing Assembly
569GEN WD02X10068
570GEN WD22X10027
575WD12X22722 GE Dishwasher Fill Funnel
576GEN WD24X10026
577WD08X10020 GE Dishwasher Fill Funnel Gasket
585GEN WD12X10057
586GEN WD12X10059
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
654WD12X332 GE Dishwasher Rack Roller
716WD14X10009 GE Dishwasher Hinge Link Arm
733GEN WD01X10099
734GEN WD16X10009
743WD12X448 GE Dishwasher Junction Box
744WD15X10003 GE Dishwasher Water Inlet Valve
746WD2X248 GE Dishwasher Screw
756BRACE TOEKICK BK
775WD2X5166 GE Dishwasher Screw
776GEN WZ05X0222
777WD30X28658 GE Dishwasher Tub Insulation Blanket
842GEN WD08X10021
843GASKET TUB
844GEN WD08X10022
845WD08X10075 GE Dishwasher Bottom Door Gasket Seal
