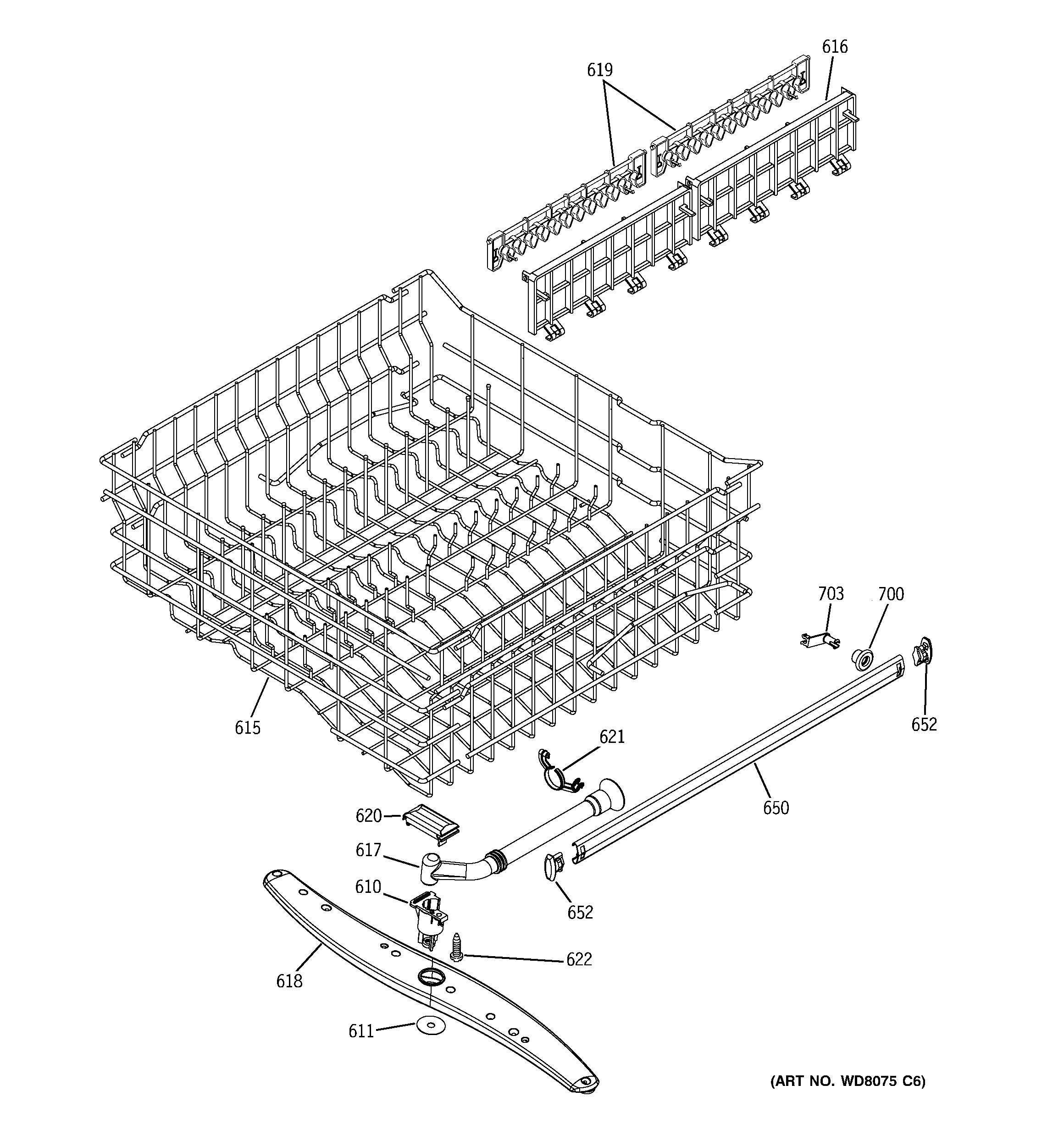

EDW5160N00SS UPPER RACK ASSEMBLY

EDW5160N00SS UPPER RACK ASSEMBLY

Written by

in

EDW5160N00SS UPPER RACK ASSEMBLY

Products

PositionProduct
610WD12X10352 GE Support Spray Arm
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615WD28X10399 GE Dishwasher Upper Rack
616GEN WD28X10180
617GEN WD12X10052
618WD22X10046 GE Dishwasher Middle Spray Arm Assembly
619GEN WD28X10181
620WD21X10391 GE Breakwater Left Switch
621GEN WD12X10054
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
703WD35X20994 GE Dishwasher Upper Dish Rack Kit
